| Place of Origin: | China |
|---|---|
| Brand Name: | iBOARD |
| Certification: | CE,FCC,ROHS,CCC,etc. |
| Model Number: | TE-YL-75 |
| Minimum Order Quantity: | 1PC |
| Price: | USD1250-1380/PC |
| Packaging Details: | 1pc/carton, optional to be with wooden crate or pallet |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, Western Union, T/T |
| Android Version: | Android 13 With 4+32G/8+64G Optional | Size: | 55/65/75/86 Inch Available |
|---|---|---|---|
| Application: | School/office/video Meeting/presentation/training | Camera: | Optional To Be Built In Or Out-connected |
| Mic: | 4mic Or 6mic Or 8mic | Annotation Software: | Supporting |
| Wireless Sharing: | Supporting | WIFI: | 6.0 |
| High Light: | 75 inch IR Interactive Whiteboard,IR Interactive Whiteboard For Conference,Infrared Interactive Whiteboard for Education |
||

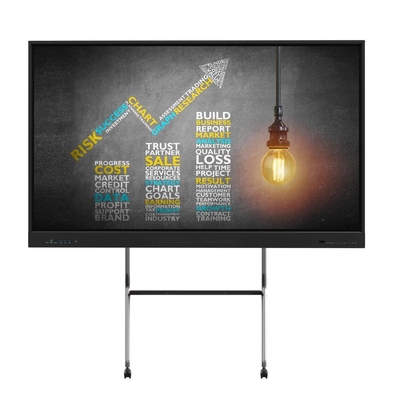

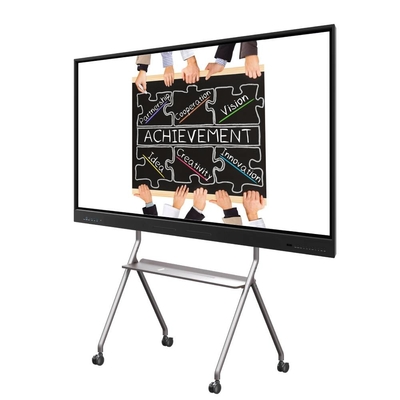

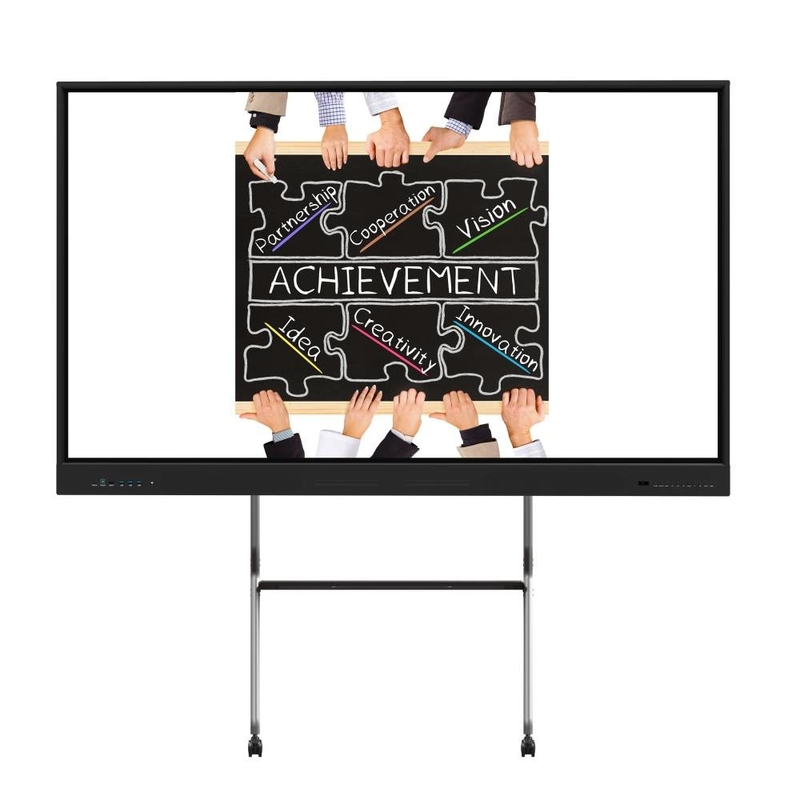

1.Iboard's latest Android 13 version Interactive Display Panel , is workable to OEM and ODM based on size : 65" 75" and 86".
2.And it is widely used for school/classroom/office/video meeting/training/presentation.
3.It is available to built in 13mp camera and 4MIC/6MIC/8MIC optional.
4.Speaker 2*15W, optional to be with extra subwooder
5.With powerful annotation software, available to creat room for meeting and share
6.supporting multi tasks windows
7.With light sensor, the display brightness could adjust itself according to the environment brightness
8.Supporting wireless sharing upto 4/6/9 screens optional at one time
| Conference Model | TE-YL-65 | TE-YL-75 | TE-YL-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428,5x803,5mm | 1650x928mm | 1895,04x1065,96mm | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 4K Ultra HD 3840x2160 | |||
| AG Tempered Glass | Yes for all models | |||
|
Android Specification |
Android 13.0 | |||
| CPU A73*4+A53*4 2.28GHz | ||||
| GPU G52*8 | ||||
| Dual wifi card : WIFI 6+Bluetooth + WIFI 5G | ||||
| RAM 8G DDR4 | ||||
| EMMC 64G | ||||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||||
| The file manager is supported | ||||
| Screen sharing application is supported | ||||
| Local and online supportfor music player. | ||||
|
Input Ports |
Rear: HDMI x2 (4K@60Hz), USB2.0x1,USB 3.0 x2(OPS/Android access automatically), TOUCH USB x 2,TF card x1,RS232 x1,RJ45 x1,MIC x1,DP x1(4K@60Hz), VGA/Audio x1, TYPE-C x1(supports USB/touch/image/video 4K@60Hz/fast charge) |
|||
|
Front: USB3.0 x3(OPS/android/external PC access automatically,support OPS/Android 3.0, external PC 2.0),HDMI x1(4K@60Hz), TOUCH USB x1, TYPE-C x1(supports USB/touch/image/video 4K@60Hz/slow charge) |
||||
| Output Ports | HDMI OUT x1(4K@60Hz),SPDIF x1,Earphone x1, RJ45 out x1 | |||
| Front Button | POWER SOURCE MENU VOL+ VOL- REC A.BLUE PC ES RATIO HOME | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for AndroidWindows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <1mm | |||
| Response Time | 5ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB 2.0, USB 3.0 | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB, Power Cable*1, Software download card*1, Remoter*1, Wall mounting bracket | |||
| Product sizes(mm) for conference models | 1485*925*91 | 1707*1050*91 | 1954*1188*91 | |
| Built in 13MP Camera | Default built in for Conference models TE-QS1C Series, other models without camera | |||
| Built in Array Microphone | 4 , 6, 8 array microphones built in for conference models, others models optional | |||
| Net Weights for Conference Model | 38 | 50 | 60 | |
| G.W.(KGS) | 52 | 66 | 82 | |
WITH POWERFUL SOFTWARE:
SHIPPING: Available by sea/by truck/by air.
FAQ:
1. Does your product accept OEM /ODM?
--Yes, we accept for products design/software/package,etc.
2. Do you have your own factory?
--Yes our factory located in Shenzhen,China with over 3500sqs.
3. Do you have your own R&D dept.?
--yes, we have professional technical team always at service.
4.How long for your product delivery ?
--Generally 15-18 working days. It depends on detailed order requirements.
