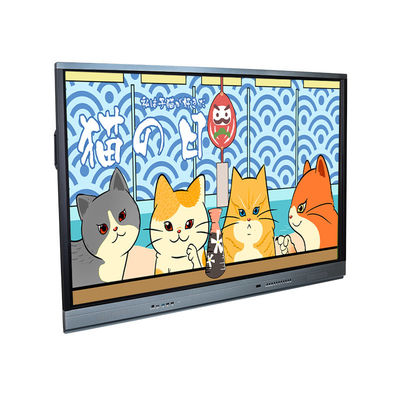

IBOARD IR Finger Touch Interactive Whiteboard Non Air Gap
Product Details
| Model: | IR Interactive Whiteboard Non Air Gap Temper Glass No Side Bar Android System | Brightness: | 350cd/m3 |
|---|---|---|---|
| Touch Technology: | Infrared Touch | Response Time: | 6.5 Ms |
| Speaker Output: | 15W * 2 | Andriod Version: | 8.0/9.0 |
| Positioning Resolution: | 32767 X 32767 | Writing Style: | Finger; Stylus，any Opaque Object |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
IR Finger Touch Interactive Whiteboard,IBOARD Finger Touch Interactive Whiteboard |
||
Product Description
IR Interactive Whiteboard Non Air Gap DLED Display 6.5ms Response Time Andriod Windows 20 Points
Iboard's IR multi finger touch XP series monitor display, workable with 65" 75" and 86".
Specification
| display | |||||
| Screen Type | TFT LED | Display Ratio | 16:9 | ||
| Display Area | 1428.5*803.5 mm(64.53 inch) | View Angle | 178° | ||
| Resolution | 3840(H) x 2160(V) | Response Time | 6.5 ms | ||
| Brightness | 350 cd/m3 | Color Depth | 10bit(R), 1.07Billon colors | ||
| Contrast | 4000:1 | Life Time | 50,000 Hrs | ||
| TV SYSTEM | |||||
| Connection | N/A | Sound System | D/K, B/G, I, M | ||
| Video System | PAL, NTSC, SECAM | Channel | N/A | ||
| Sound/SPeaker features | |||||
| Speaker Type | Built-In | Speaker output | 15W * 2 | ||
| Audio Stereo | Balance, Auto volume control, surround sound | ||||
| android system | |||||
| Android Version | Android 8.0 | GPU | ARM Mali-m51450MHz | ||
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
RAM | 4G,(8Gbit×4)；DDR4； | ||
| Dominant Frequency | 1.5G | ROM | 32G | ||
| DISPLAY CONNECTION PORTS | |||||
| Input Ports (Front) | HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) | Output Ports(back) |
AV-out*1; HeadPhone*1; SPDIF*1;
|
||
| Input Ports (Back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1 |
||||
| TOUCH SYSTEM | |||||
| Sensing Type | Infrared Touch | Writing Style | Finger; Stylus,any opaque object | ||
| Positioning resolution | 32767 x 32767 | Communication Mode | Full-speed USB (Plug and Play) | ||
| Scanning Speed | 4ms | Surface Glass | 4mm tempered Glass | ||
| Response size | ≥Φ3mm | OS support | Android, Windows, Linux, Mac, Chrome | ||
| Internet | |||||
| Ethernet | 802.3 10/100 | Wifi |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
||
| Bluetooth | 5.0 | ||||
| Power | |||||
| Voltage Range | AC(100～240)V-50/60HZ | Rated Power | <250W | ||
| Stand Power | <1W | ||||
| Model | TE-XP-65 | TE-XP-75 | TE-XP-86 |
| Resolution |
3840(H) x 2160(V) |
3840(H) x 2160(V) |
3840(H) x 2160(V) |
| Color depth |
10bit(R), 1.07Billon colors |
||
| Andriod version | 8.0 | ||
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
||
| Input ports |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
||
| Output ports |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input ports(back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| Model | TE-XP-65 | TE-XP-75 | TE-XP-86 |
| Sensing type |
Infrared Touch |
||
| Surface glass |
4mm tempered Glass |
||
| OS support |
Android, Windows, Linux, Mac, Chrome |
||
| Writing style |
Finger; Stylus,any opaque object |
||
| WIFI |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
||
| Bluetooth | 4.0 | 4.0 | 4.0 |
| Voltage range |
AC(100～240)V-50/60HZ |
||
Packing details:
| Model | TE-XP-65 | TE-XP-75 | TE-XP-86 |
| Product size | 1486*924*89mm | 1713*1054*90mm | 1959*1193*89mm |
| Packing size | 1646*1050*240mm | 1873*1204*240mm | 2120*1353*240mm |
| N.W. | 38KGS | 56KGS | 72KGS |
| G.W. | 52KGS | 73KGS | 93KGS |
| Packing accessories | Touch USB cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1 | ||
Company info.
FAQ:
1. What is your delivery time for IR interactive Whiteboard?
- 15-20 working days. Depends on the order qty and requirements.
2.What is the production capacitivity per month for your products?
-Approx. 5000pcs for Touch monitor, and 10,000pcs for Whiteboard.
3.Do your products accept OEM and ODM?
--Yes, products logo, packaing,software,etc.
