Outdoor IR Interactive Whiteboard 82'' Multi Touch With Projector Support All Systems
Product Details
| Model Number: | IB-82 | Size: | 82'' |
|---|---|---|---|
| Technology: | Infrared(IR) | Touch Points: | 2-32points |
| Write Object: | Finger, Pen, Or Other Opaque Objects | Response Size: | >3mm |
| Accuracy: | 2mm | Resolution: | 32767 X 32767 |
| Surface: | Steel With Anti-glare Paint | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Touch Points: | 20 Points |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
Outdoor IR Interactive Whiteboard,multi touch Interactive Whiteboard,82'' multi touch whiteboard |
||
Product Description

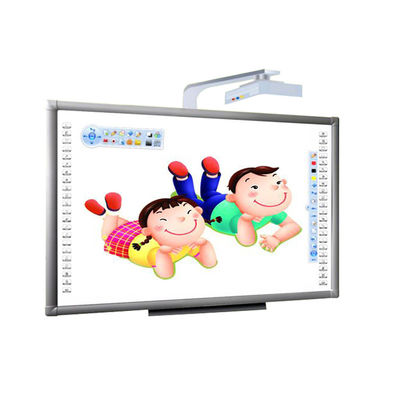

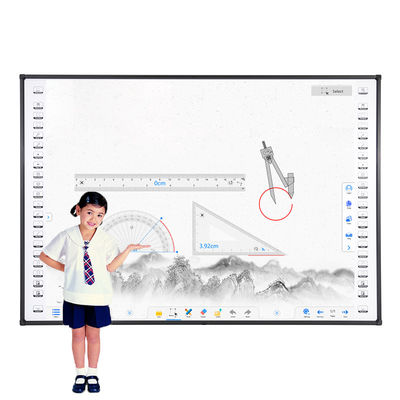

82'' IR interactive whiteboard multi touch whiteboard with projector support all systems
Product introduce
iBoard interactive whiteboard connects with a general computer by a USB cable, the display output of computer can be projected on the whiteboard through a projector. After calibration, touch and tracking information from the board will be transferred into pointer click and movement of the mouse, and by DRAWVIEW software or other program, all click, tracking and writing information will be displayed on the board at real time.
iBoard interactive whiteboard hardware features: (Pls refer to detailed Hardware Chapter)
- Any solid untransperant objects can be used on the board;
- No light spots, to protect user’s eyes;
- the iBoard could be used also as a traditional white board using water pen for writing.
- iBoard responses to finger-gesture.
- Service life is 11 years;
- Intelligent penholder provide user friendly writing tools
- Modern and durable design and structure for easy maintenance if needed
- Scratches on the board surface will not affect the use of iBoard
iBoard interactive whiteboard software features: (Pls refer to detailed Software Chapter)
- Free upgrade for life;
- Offering free resource download website;
- Supports diverse resource database self-defined by common format files, no limit to the number of resource;
- Marking play-status of Microsoft PowerPoint;
- Catching and marking any desktop contents (files can be printed )
- Audio , video recording and playback function
- Users can expand the application functionality themselves
- Multi-touch, gesture recognition, and so on functions make the operation are more human and convenient.
- Recognizable to hand-gesture.
- Supporting to insert images, animation, video and other files
TECHNICAL SPECIFICATIONS
| Hardware Special Features | Gesture recognition |
| Technology | Infrared |
| Touch Point | 10 touch |
| Cursor Speed | 180 dot/s |
| Display ratio | 4:3 |
| Resolution | 32767 x 32767 |
| Positioning Accuracy | <2mm |
| Connecting Port | USB 2.0 USB 1.1 USB 3.0 |
| View Angle | Horizontal 170°, vertical 160° |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -20°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation | Wall mounted, cabinets, mobile stand (optional) |
