4K Camera Amd Mic LED Interactive Whiteboard For Video Conference

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE, FCC, CB
Model Number: TE-XP3
Minimum Order Quantity: 10pcs
Price: 1000-2000USD
Packaging Details: carton & pallet
Delivery Time: 3-4weeks
Payment Terms: T/T, L/C
Supply Ability: 10000pcs/month
Panel Type: DLED Size: 65'', 75'', 86''
Resolution: 3840*2160@60Hz Display Ratio: 16:9
Brightness: 350cd/m2 Video Call Software: Bulit-in
Screen Share: Bulit-in Camera: 8,000,000 Pixels, 4K, Bulit-in
Mic: Bulit-in Warranty: 1 Year
High Light:

350cd/m2 LED Interactive Whiteboard

,

4K Camera LED Interactive Whiteboard

,

Video Conference Portable Interactive Whiteboard

LED interactive whtieboard with 4K camera for video conference

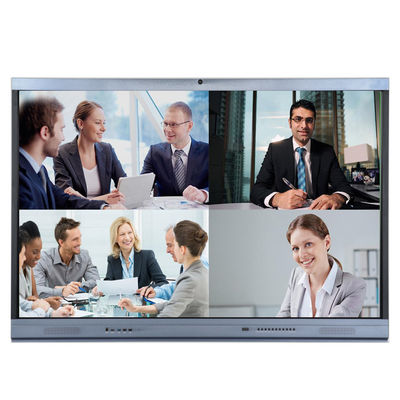

4K Camera Amd Mic LED Interactive Whiteboard For Video Conference 0

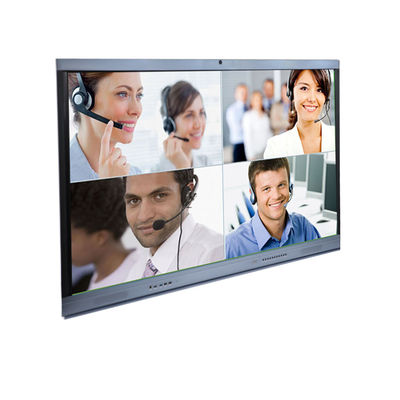

4K Camera Amd Mic LED Interactive Whiteboard For Video Conference 1

Product introduction



iBoard LED interactive whiteboard with bulit-in 4K camera Built in Camera and MIC is specially designed for video conference, and also suitable for internet education. With built in 8 Mpixel camera and mircrophone, it is convenient to start a face to face meeting or conversation easily.



the Video Conferencing System   is Remote-distance teleconferencing software, Cloud conference service, Site to site, multi-parties online video meeting system.Suggested to use a broadband network with an uplink speed >100kb/s for starting the online video meeting. Configured with an high-definition FHD camera(optional), enable a more delicated and smooth video to conduce. Video conference camera needs to be purchased separately. Video conference multi-parties online meeting call need to pay relevant call fees according to the operator's standard.



Hilight features



Simple and Convenient Operation

Annotations can be made in any interface; Annotations can be saved on the page at PPT mode.
Spotlight and other small tools in the Annotation software can assist meeting presentation and demonstration
Meeting records can be easily and conveniently shared by scanning QR code or email,this will make meeting records sharing fast and convenient



All-in-One Design
Six functions in one, integrate functions of projector, interactive board, computer, television, koisk and audio but better user experience. It is an ideal solution for business presentation or schools.



Dual System Supporting
Support Android and Windows dual system, each system can be operated and managed separately, elegant simplified UI interface for Android, can select the required functions quickly,configured with DrawView X annotation software, can quickly write down handwriting with real writing feeling.



Camera Specification



Items Parameters
SENSOR size 1/2.7
Pixle size 1.5x1.5um
Video Format MJPG
resolution support MJPG:
30fps@3840x2160 2592x1944 2560x1440 1920x1080 1280x720
960x540 640x360 424x240 320x180 288x160
dynamic range /
Frequency 50Hz
Lens FOV :D= 74.6°
Length size : M12×P 0.5
Effective focal length: 3.14mm
F/NO(INFINITE): 2.4±5%
Back focal length: 3.4±0.2mm
Flange back length: 2.45±0.2mm
Focus Range: 3m
Thread size: P0.5
Lens composition: 6G
focusing Fixed
Frame rate 30fps
auto control Saturation,Contrast,acutance,White balance,exposure.
audio NO MIC
Voltage DC 5V
working current 200-320mA
USB Connector USB2.0
working Temperature Varies with ambient temperature
