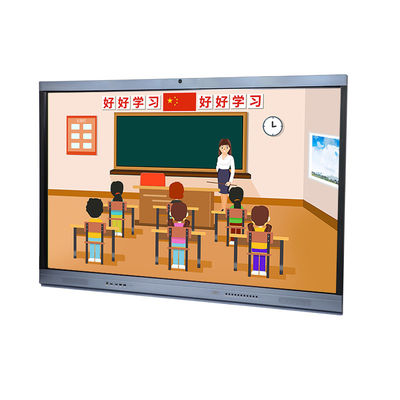

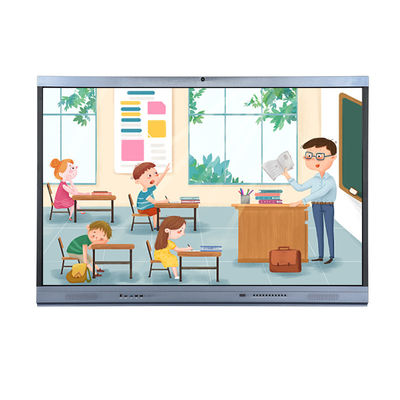

Bluetooth LED Interactive Smart Board 6.5ms Response time
Product Details
| Color: | Black /Silver | Brightness: | 350cd/m3 |
|---|---|---|---|
| Touch Technology: | Infrared Touch | Response Time: | 6.5 Ms |
| Speaker Output: | 15W * 2 | Andriod Version: | 8.0 |
| Wifi: | IEEE802.11 A/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz | Bluetooth: | 5.0 |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
Bluetooth LED Interactive Smart Board,6.5ms LED Interactive Smart Board,6.5ms bluetooth smart board |
||
Product Description
LED Interactive Whiteboard HDMI VGA AUDIO Port Play and Plug USB Dual Operation System Andriod 8.0 Tempered Glass Camera]
Specifications:
1, 3840*2160(4K) DLED Display type, with some fast keys on screen for easier operations
2, Android 8.0 OS,latest Android version for touch monitors
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, N.W. no more than 38KG(65"), much easier for delivery and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, With HDMI OUT port, extend the screen display
15, optional front Type-C port, support both video play and USB function
16, bulit-in video conference software, support video call after connect to camera
17, bulit-in screen share software, support screen projection
| Model | TE-XP3-65 | TE-XP3-75 | TE-XP3-86 |
| Resolution |
3840(H) x 2160(V) |
3840(H) x 2160(V) |
3840(H) x 2160(V) |
| Color depth |
10bit(R), 1.07Billon colors |
||
| Andriod version | 8.0 | ||
| CPU |
2*ARM Cortex-A73 2*ARM Cortex-A53 |
||
| Input ports |
HDMI 1.4*1；USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC) USB-C(optional) |
||
| Output ports |
AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
||
| Input ports(back) |
HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 |
||
| Model | TE-XP-65 | TE-XP-75 | TE-XP-86 |
| Sensing type |
Infrared Touch |
||
| Surface glass |
4mm tempered Glass |
||
| OS support |
Android, Windows, Linux, Mac, Chrome |
||
| Writing style |
Finger; Stylus,any opaque object |
||
| WIFI |
IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz Or IEEE802.11an 2.4GHz |
||
| Bluetooth | 4.0 | 4.0 | 4.0 |
| Voltage range |
AC(100～240)V-50/60HZ |
||
Packing details:
| Model | TE-XP3-65 | TE-XP3-75 | TE-XP3-86 |
| Product size | 1486*944.5*101mm | 1713*1074.9*104.8mm | 1959*1213.3*101.8mm |
| Packing size | 1646*1050*240mm | 1873*1204*240mm | 2120*1353*240mm |
| N.W. | 38KGS | 56KGS | 72KGS |
| G.W. | 52KGS | 73KGS | 93KGS |
| Packing accessories | Touch USB cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1 | ||
FAQ:
1. What is your delivery time for IR interactive Whiteboard?
- 15-20 working days. Depends on the order qty and requirements.
2.What is the production capacitivity per month for your products?
-Approx. 5000pcs for Touch monitor, and 10,000pcs for Whiteboard.
3.Do your products accept OEM and ODM?
--Yes, products logo, packaing,software,etc.
