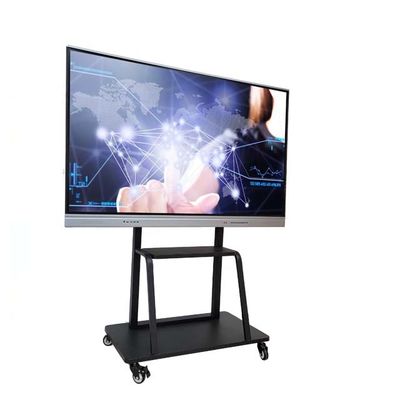

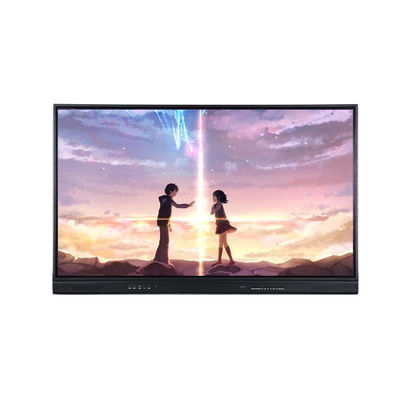

Zero Gap LED Interactive Whiteboard Supper Slim Bezel

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE, FCC, CB
Model Number: TE-YL
Minimum Order Quantity: 1pc
Price: 880-4000
Packaging Details: carton & pallet
Delivery Time: 3-4weeks
Payment Terms: T/T
Supply Ability: 10000pcs/month
Product Name: LED Interactive Whiteboard, Touch Monitro, Multi Touch Screen Size: 65'', 75'', 86'', 98''
Panel Type: DLED Brightness: 350cd/m2
Touch Technology: Infrared(IR) Touch Points: 10
Gap Between Glass And Screen: 0 Resolution: 3840*2160@60Hz
Android: 8.0 Type C: Optional
HDMI OUT: Yes Warranty: 1 Year
High Light:

Slim Bezel LED Interactive Whiteboard

,

Zero gap LED Interactive Whiteboard

Supper slim bazel LED interactive Whiteboard Zero gap touch monitor







Product introduce



iBoard TE-YL series LED interactive whiteboard with zero gap design is the high class product for education and business meeting,  its

Ultra-narrow bezel and slim black area total no more than 20mm, is the first one most slim design with IR touch in this field. break through limits,good outlooking and wide view angle,bring a different new visual experience for presentation.



Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing,Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting, Support scan QR code of the whiteboard software to share the meeting records by mobile devices.



Screen Sharing System, Multi-Screen Interactivity



Scene 1: Connect touch monitor's hotspot wirelessly for screen projection
Connect the touch monitor's hotspot
When use computer or Android mobile phone for screen projection, refer to the guide of the screen sharing system to download the screen-sharing apllication
Select the current touch screen's hotspot to make a smooth multi-screen projection



Scene 2: use 2.4G wireless connection or external wired connected router for screen projection
Please connect your Android phone or computer and the receiving device to the same router.
When use computer or Android mobile phone for screen projection, refer to the guide of the screen sharing system to download the screen-sharing apllication
Select the current touch screen's hotspot to make a smooth multi-screen projection



Simple and Convenient Operation

Annotations can be made in any interface; Annotations can be saved on the page at PPT mode.
Spotlight and other small tools in the Annotation software can assist meeting presentation and demonstration
Meeting records can be easily and conveniently shared by scanning QR code or email,this will make meeting records sharing fast and convenient



Specifications

android system
Android Version Android 8.0 GPU ARM Mali-51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front) HDMI 1.4*1;USB Touch Port (B)*1, USB2.0*3(multi use for Android,OPS and external PC) Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP*1


TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm

OS and points support

(driver free)

Windows 7/8/10, 10 points

Android 4.0 and up, 10 points

Mac 10.1 and up, 1 point

Linux ubuntu 14.04 ~18.04,, 10 points



Zero Gap LED Interactive Whiteboard Supper Slim Bezel 0



Zero Gap LED Interactive Whiteboard Supper Slim Bezel 1
