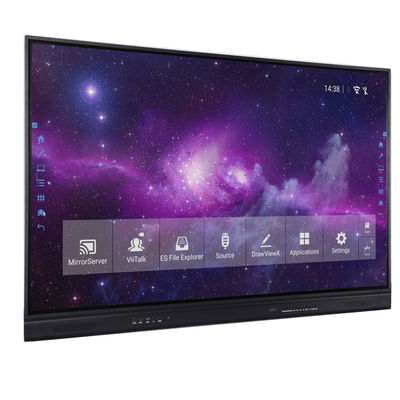

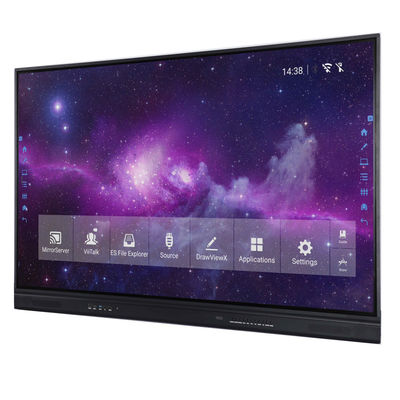

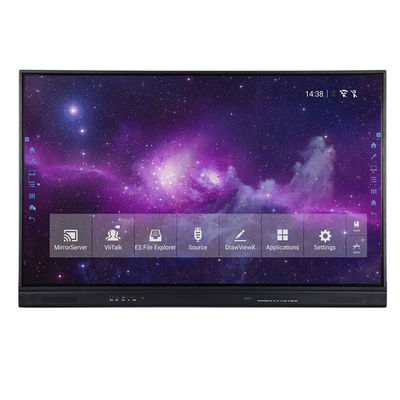

Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum

Basic Information
Place of Origin: China
Brand Name: IBOARD
Certification: CE,FCC,ROHS,CCC,WEEE,etc.
Model Number: TE-YL5-65
Minimum Order Quantity: 10pcs
Price: USD920-980/PC
Packaging Details: 1pc/carton,optional to be with extra wooden pallet/crate
Delivery Time: 25-30 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 5000pcs per month
Touch Frame: Aluminum Touch Technology: Infrared Touch
Touch Points: 1/2/4/6/10 Points Operation Os: Andriod/Windows/Mac/Linux
Annotation Software: Drawview Workable Under Andriod/windows Os Display Resolution: 3840*2160
Display Ratio: 16:9 USB Type: Plug And Play
High Light:

Anti Glare Optical Interactive Whiteboard

,

Glass Mirror Optical Interactive Whiteboard

,

65in Multi Touch Interactive Whiteboard

IR Interactive Whiteboard 65 Inch 3mm Tempered Anti Glare Glass Mirror Cast Source Changable 20 Points Touch For Video





display
Screen Type TFT LED Display Ratio 16:9
Display Area 1650.2*928.3mm View Angle 178°
Resolution 3840(H) x 2160(V) Response Time 6.5 ms
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 4000:1 Life Time 50,000 Hrs
TV SYSTEM
Connection N/A Sound System D/K, B/G, I, M
Video System PAL, NTSC, SECAM Channel N/A
Sound/SPeaker features
Speaker Type Built-In Speaker output 15W * 2
Audio Stereo Balance, Auto volume control, surround sound
android system
Android Version Android 8.0 GPU ARM Mali-m51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G,(8Gbit×4);DDR4;
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1


TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome



Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum 0

Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum 1

Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum 2

Package:1pc/carton,optional to be with extra wooden pallet/crate

Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum 3



Trade fairs: We attend ISE,BETT,INFOCOMM,CANTON Fair per year.

Anti Glare Glass Mirror Optical Interactive Whiteboard 65in Aluminum 4
