| Place of Origin: | China |
|---|---|
| Brand Name: | IBOARD |
| Certification: | CE,FCC,ROHS,CCC,WEEE,etc. |
| Model Number: | TE-YL6-86 |
| Minimum Order Quantity: | 10pcs |
| Price: | USD1600-1800/PC |
| Packaging Details: | 1pc/carton,optional to be with extra wooden pallet/crate |
| Delivery Time: | 25-30 working days |
| Payment Terms: | L/C, T/T, , Western Union |
| Supply Ability: | 5000pcs per month |
| Workable Size: | 65/75/86 Inch | Installation Way: | Wall Mounted/Hanged On The Stand |
|---|---|---|---|
| Touch Technology: | Infrared Touch | Rated Voltage: | AC(100-240)V～50/60HZ |
| Touch Mode: | Touch Pen Or Finger | Flash: | 16G/32G EMMC |
| RAM: | 2G/3 DDR4 | Video System: | PAL、NTSC、SECAM |
| High Light: | Android OS LED Interactive Whiteboard,86 Inch LED Interactive Whiteboard,32G EMMC Portable Interactive Whiteboard |
||

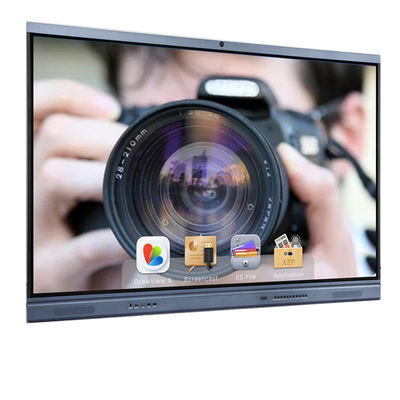

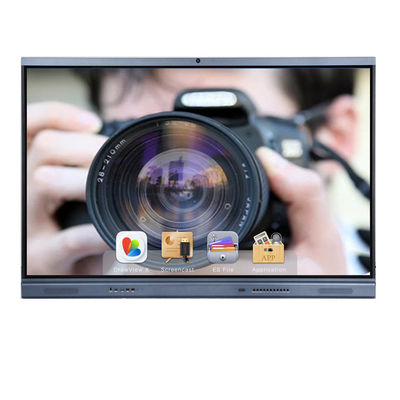

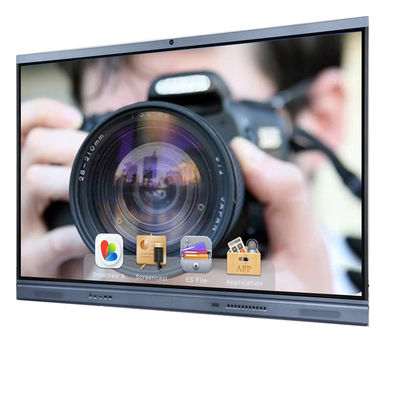

LED Interactive Whiteboard Portable Digital 86 Inch Andriod OS TV Board Anti Blue USB Port 3+32G Teaching Software
Special points:
1. Ultra slim bezel with 3mm tempered glass,optional to be with anti-glare or anti-finger
2. with latest android os, supporting multi touch points 1/2/4/6/10 points
3. Supporting operation os, andriod/windows/Mac/Linux, dual OS working at one time
4.front 11 keys,easier and faster for operation
5. 3 USB ports front
6. with anti-blue function,well protect user's eyes
| Model | TE-YL6-75 |
| Display type | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/㎡ |
| Contrast ratio | 1200:1 |
| Display area | 1650.2*928.3mm |
| Panel ratio | 16:9 |
| View angle | 178° |
| Color | 10bit,10.7billion color |
| Video format | PAL,NTSC,SECAM |
| Sound format | D/K, B/G, I,M |
| CPU | Quad core A55 |
| Main frequency | default 1.2G |
| Andriod version | 9.0 |
| Flash | 16G/32G EMMC |
| RAM | 2G/3 DDR4 |
| VGA input resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First touch response time | <19ms |
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max支持3840*2160/60Hz),1*TOUCH USB,3*USB |
| Output port | Back IO OUTPUT:1*COXIAL,1*EARPHONE |
| Front keys | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Short cut | NO |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 2.5A(including OPS) |
| Working temperature | 0°C～45°C |
| Touch points | Single/Two/Four/Six/Ten points |
| Touching mode | Fingers or pen |
| Location technology | Ifrared |
| Location accuracy | <2mm |
| Location resolution | 4096*4096/16384*16384/32768*32768 |
| Continuous response time | <8ms |
| Cursor speed | >180 dot/second |
| Communication port of touch system | USB |
| Operating system | WINDOWS/LINUX/MAC /Android |
| Effective object size | ≥Φ3mm |
| Touch times | More than 60,000,000 times at one position |
| Accessory | Touch pens x 2 |
| HDMI cable(2M) x 1 | |
| Touch USB cable 1.5M x 1 | |
| Power supply cord(1.8M) x 1 | |
| Remote controller x 1 | |
| Warranty card x 1 |
Package:1pc/carton,optional to be extra wooden pallet /crate
| Model No. | TE-YL6-65 | TE-YL6-75 | TE-YL6-86 |
| Packing size | 1646*240*1050mm | 1873*240*1204mm | 2120*240*1353mm |
| N.W. | 38kgs | 56kgs | 73kgs |
| G.W. | 52kgs | 72kgs | 90kgs |
