| Place of Origin: | China |
|---|---|
| Brand Name: | IBOARD |
| Certification: | CE,FCC,ROHS,etc. |
| Model Number: | TE-QS1-55 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD890-920 |
| Packaging Details: | 1pc/carton,optional to be with extra wooden pallet /crate |
| Delivery Time: | 25-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Back Cover: | Metal | Andriod Os: | 8.0 Or 9.0 Optional |
|---|---|---|---|
| Operation OS: | Andriod/Windows/Mac/Linux Etc. | Brightness: | 350cd/m2 |
| Touch Technoology: | Infrared Touch | Rated Current: | 2.5A (including OPS) |
| Position Technology: | Infrared Located Technology | Touch Points: | 1/2/4/6/10 Points |
| Front Ports: | TOUCH/HDMI/USB*3 | Display Resolution: | 3840*2160 |
| High Light: | 86 Inch IR Interactive Whiteboard,Wifi OPS IR Interactive Whiteboard,Tempered Glass Education Interactive Whiteboard |
||

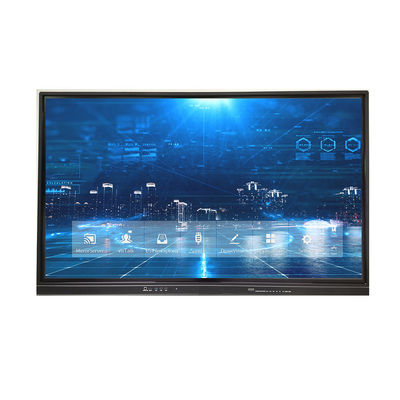

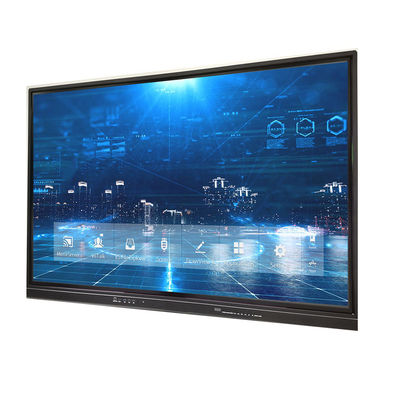

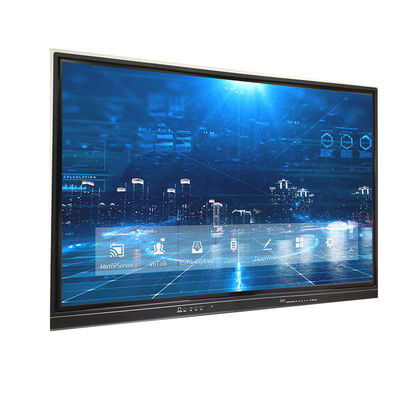

IR Interactive Whiteboard 55 65 75 86 Inch Wifi OPS Bluetooth Port Pen Finger Write Tempered Glass Touch Panel Display
Advantages:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 9.0 OS,latest Android version for touch monitors
3, Latest Infrared touch technology, 1/2/4/6/10 points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, available to hanged on the stand or wall mounted,much easier for delivery and installation
9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
10, optional magnetic penholder, can stick the magnetic pen on the frame
11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine
12, highest screen display area, black area of scree no more than 2mm
13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
14, with powerful software, available with annotation, cloud save and sharing
15, optional front Type-C port, support both video play and USB function
16, bulit-in video conference software, support video call after connect to camera
17, bulit-in screen share software, support screen projection
| Model no. | TE-QS1-55 | TE-QS1-65 | TE-QS1-75 | TE-QS1-86 |
| Display size(mm) | 1210.6*681.4mm | 1430.5*805.5mm | 1651.7*929.9mm | 1897*1068mm |
| Product size(mm) | 1285*790.5*82.2mm | 1485.2*905*93.2mm | 1707.4*1030.1*93.3mm | 1953.6*1168.8*93.4mm |
| Touch technology | Infrared touch | |||
| Display resolution | 3840*2160 | |||
| CPU |
4 x ARM Cortex-A55 |
|||
| Main frequency |
default 1.2G |
|||
| Rated voltage |
AC(100-240)V～50/60HZ |
|||
| Rated current | 2.5A (including OPS) | |||
| Android version | 9.0 | |||
| Input ports | Front:1*HDMI(Max.supporting 3840*2160/60Hz),1*TOUCH USB,3*USB Back:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,1*USB 3.0,1*USB2.0,1*TOUCH-USB,1*RS232,1*TF(MAX 32G),1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*BT(4.0),1*OPS(up to3840*2160/60Hz) |
|||
| Output ports |
1*OPTICAL,1*EARPHONE |
|||
| Front keys |
POWER,SOURCE,MENU,VOL+,VOL-,REC,A.BLUE,PC,ES,RATIO,HOME |
|||
Powerful annotation software:
AVAILABLE WITH Gesture Recognization. Cloud save and sharing.
Real photos show: Side bar /TYPE-C port optional
Package:
1PC/CARTON,optional to be with extra wooden pallet or crate
Applications: Our products widely used in school/office/lab/training/presentation/video conference,etc.
Trade fairs: We attend different fairs each year, like ISE,BETT,INFOCOMM,CANTON fairs.
