IR Interactive Touch Screen Monitor For Education CE FCC Certificate

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE FCC
Model Number: TE-YL5C
Minimum Order Quantity: 1 piece
Price: USD700-USD1800 per pieces
Packaging Details: export cartons for Touch Interactive Touch Screen Monitor
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pieces per month
Type: Infrared,Capacitive,interactive Flat Panel,LCD Touch Screen Interface Type: USB,D-Sub,DVI,Serial,VGA,HDMI, DP, Etc
Resolution: 3840*2160 Screen Size: 65",75inch,86 Inch ,98 Inch
Product Name: Iboard Interactive Whiteboard Smart Board,Touch Screen Interactive Flat Panel,Infrared Touch Screen Frame,cheap Touch Screen Monitor Interactive Flat Panel All In One Pc,touch Screen Monitor Touch Points: 10 Points,can Be Customized,1~20 Points, 20 Points, 32 Points, 40 Points
Color: Black,black/white/gold/customizable,Silvery/Black Application: Teaching,meeting,HOME,training,education
Operating System: WIN2000/XP/Vista/7/8 And More,android8.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional Cpu: A73*2+A53*2
GPU: Mali-G51 Brightness: 350cd/m2
Interface: USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI Warranty: 1 Year For Panel, And 3 Years For Components
Material: Aluminum Alloy Frame Viewing Angle: 178°(H) / 178°(V)
Screen Type: LED,LCD Function: Projector,tablet,writingboard,PC,TV
High Light:

IR Interactive Touch Screen Monitor

,

CE Interactive Touch Screen Monitor

,

CE interactive monitor for education

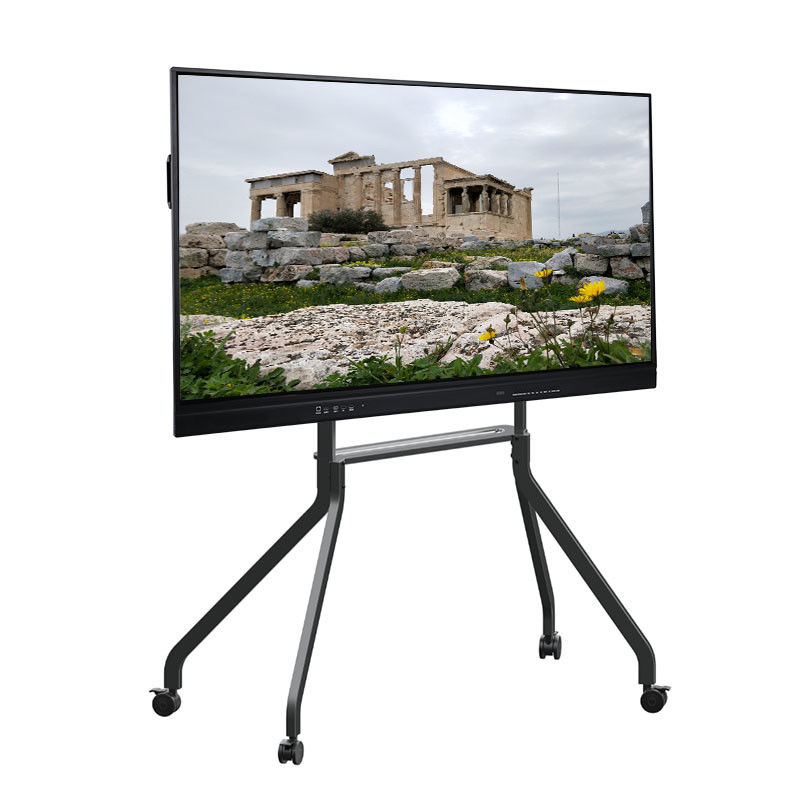

IR Finger Touch Interactive Touch Screen Monitor 65" 75" 86" 98" For Education And Business



​​Ⅰ. Description Of iBoard Interactive Touch Screen Monitor



An interactive touch screen monitor is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen,  interactive whiteboard, smart whiteboard, touch screen display,  touch monitor,  LED touch monitor,  touch interactive display, interactive flat panel display,  touchscreens , etc.



Our company has a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.



​​II. Our Advantages:



14 years' experience on making OEM/ODM interactive flat panels and digital interactive whiteboard

products sold to more than 80 countires in the world

Own developed Infrared technology

ODM/OEM Support

SKD support

Customized size

Easy for after-sales service

Shortest delivery time

Top quality in this field

Best Value



​​II. Product Advantage Feactures



With three side ultra slim bezel,  the bezel width is only 10mm,  adding the black edge of display area,  only 20mm.

With non-air gap (zero gap) glass design,  make writing experience very good and actual visual angle wider...

IR Interactive Touch Screen Monitor For Education CE FCC Certificate 0

​​III. Specification



Model TE-YL5C-65 TE-YL5C-75   TE-YL5C-86
Dispaly Backlight D-LED Backlight
Resolution 3840*2160 3840*2160 3840*2160
Brightness 350 cd/㎡ 350 cd/㎡ 350 cd/㎡
Contrast 1200:1 1200:1 1200:1
Screen Size(mm) 1428.5*803.5 1649.7*927.9 1895.04*1065.96
Aspect Ratio 16:9
View Angle 178°
Screen Mode 16:9/4:3/dot to dot/full screen
Color Depth 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors
Panel Response Time 8ms 8ms 8ms
Suport Resolution 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ





Android Specification

Android 8.0

2 x ARM Cortex-A73@1.5GHz

2 x ARM Cortex-A53@1.5GHz

ARM Mali-G51450MHz
Ram: 4G
Storage: 32G
I/O Ports Please contact us to know more detail specification
Front Button POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME
Built in camera 8 Mega Pixels
Built in Microphone 4 array built in microphones
Voltage AC(100~240)V-50/60HZ
Power Range Standby Power<1W Standby Power<1W Standby Power<1W
Rated Power<230W Rated Power<350W Rated Power<415W

Remark: For more details of the specification , please contact us to know more detials.



IR Interactive Touch Screen Monitor For Education CE FCC Certificate 1IR Interactive Touch Screen Monitor For Education CE FCC Certificate 2IR Interactive Touch Screen Monitor For Education CE FCC Certificate 3

IR Interactive Touch Screen Monitor For Education CE FCC Certificate 4



IR Interactive Touch Screen Monitor For Education CE FCC Certificate 5IR Interactive Touch Screen Monitor For Education CE FCC Certificate 6







IR Interactive Touch Screen Monitor For Education CE FCC Certificate 7IR Interactive Touch Screen Monitor For Education CE FCC Certificate 8IR Interactive Touch Screen Monitor For Education CE FCC Certificate 9IR Interactive Touch Screen Monitor For Education CE FCC Certificate 10
