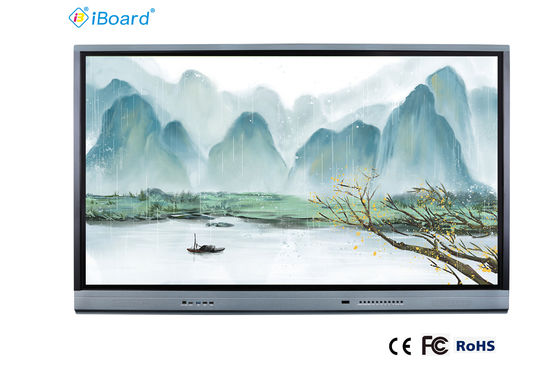

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems

Basic Information
Place of Origin: CHINA
Brand Name: IBOARD
Certification: CE,FCC,ROHS,WEEE
Model Number: TE-XP-75
Minimum Order Quantity: 10pcs
Price: USD950-1200/PC
Packaging Details: carton box, 1pc/carton, could be with wooden crate and pallet
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 5000pcs per month
Color: Black And Grey Brightness: 350cd/m3
Touch Technology: Infrared Touch Response Time: 6.5 Ms
Speaker Output: 15W * 2 Andriod Version: 8.0/9.0
Positioning Resolution: 32767 X 32767 Writing Style: Finger; Stylus,any Opaque Object
High Light:

50000 Hrs IR Interactive Whiteboard

,

2*15W Speakers IR Interactive Whiteboard

IR Interactive Whiteboard 10 touch points 50000 Hrs Built in 2*15W Speakers Plug And Play USB XP Series Dual Systems





Iboard's IR multi finger touch XP series monitor display, workable with 65" 75" and 86".



Specifications:

1, 3840*2160(4K) UHD panel, perfect display performance

2, Android 8.0 OS,latest Android version for touch monitors

3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly

4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software

5, Touch support Chrome OS

6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers

7, with light sensitive sensor, protect the user’s eyes smartly

8, N.W. no more than 38KG, much easier for delivery and installation

9, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting

10, optional magnetic penholder, can stick the magnetic pen on the frame

11, 11 front buttons, the most numbers in the market now, much easier for users operate the machine

12, highest screen display area, black area of scree no more than 2mm

13, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine

14, With HDMI OUT port, extend the screen display

15, optional front Type-C port, support both video play and USB function

16, bulit-in video conference software, support video call after connect to camera

17, bulit-in screen share software, support screen projection

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 0



Model TE-XP-65 TE-XP-75 TE-XP-86
Resolution

3840(H) x 2160(V)

3840(H) x 2160(V)

3840(H) x 2160(V)

Color depth

10bit(R), 1.07Billon colors


Andriod version 8.0
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

Input ports

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output ports

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input ports(back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1



Model TE-XP-65 TE-XP-75 TE-XP-86
Sensing type

Infrared Touch


Surface glass

4mm tempered Glass

OS support

Android, Windows, Linux, Mac, Chrome

Writing style

Finger; Stylus,any opaque object

WIFI

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.0 4.0 4.0
Voltage range

AC(100~240)V-50/60HZ





Packing details:

Model TE-XP-65 TE-XP-75 TE-XP-86
Product size 1486*924*89mm 1713*1054*90mm 1959*1193*89mm
Packing size 1646*1050*240mm 1873*1204*240mm 2120*1353*240mm
N.W. 38KGS 56KGS 72KGS
G.W. 52KGS 73KGS 93KGS
Packing accessories Touch USB cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 1

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 2

Applications:

School,Office,Lab,Training, Presentation,Family,etc.

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 3



Company info.

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 4

2*15W Speakers IR Interactive Whiteboard 50000 Hrs Dual Systems 5



FAQ:

1. What is your delivery time for IR interactive Whiteboard?

- 15-20 working days. Depends on the order qty and requirements.



2.What is the production capacitivity per month for your products?

-Approx. 5000pcs for Touch monitor, and 10,000pcs for Whiteboard.



3.Do your products accept OEM and ODM?

--Yes, products logo, packaing,software,etc.
