Ir Interactive Touch Screen Whiteboard 3840*2160 computer driven
Product Details
| Type: | Infrared,Capacitive,interactive Flat Panel,LCD Touch Screen | Interface Type: | USB,D-Sub,DVI,Serial,VGA,HDMI, DP, Etc |
|---|---|---|---|
| Resolution: | 3840*2160 | Screen Size: | 65",55",75inch,86 Inch ,98 Inch |
| Product Name: | Interactive Whiteboard Smart Board,Touch Screen Interactive Flat Panel,Infrared Touch Screen Frame,cheap Touch Screen Monitor Interactive Flat Panel All In One Pc,touch Screen Monitor | Touch Points: | 10 Points,can Be Customized,1~20 Points, 20 Points, 32 Points, 40 Points |
| Color: | Black,black/white/gold/customizable,Silvery/Black | Application: | Teaching,meeting,HOME,training,education |
| Operating System: | WIN2000/XP/Vista/7/8 And More,android8.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional | Cpu: | A73*2+A53*2 |
| GPU: | Mali-G51 | Brightness: | 350cd/m2 |
| Interface: | USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI | Warranty: | 1 Year For Panel, And 3 Years For Components |
| Material: | Aluminum Alloy Frame | Viewing Angle: | 178°(H) / 178°(V) |
| Screen Type: | LED,LCD | Function: | Projector,tablet,writingboard,PC,TV |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
Ir Interactive Touch Screen Whiteboard,3840*2160 Interactive Touch Screen Whiteboard |
||
Product Description
Product name: Finger smart ir touch interacive display touch screen electronic interactive whiteboard display
Ⅰ. Description Of Touch interactive display
A LCD Touch interactive display is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen, interactive whiteboard, smart whiteboard, touch screen display, touch monitor, LED touch monitor, touch interactive display, interactive flat panel display, touchscreens , etc.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.
II. Our Advantage:
14 years' experience on making OEM/ODM interactive flat panels and interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
| Model | TE-TL-65 | TE-TL-75 | TE-TL-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 8.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| I/O Ports | Please contact us to know more detail specification | |||

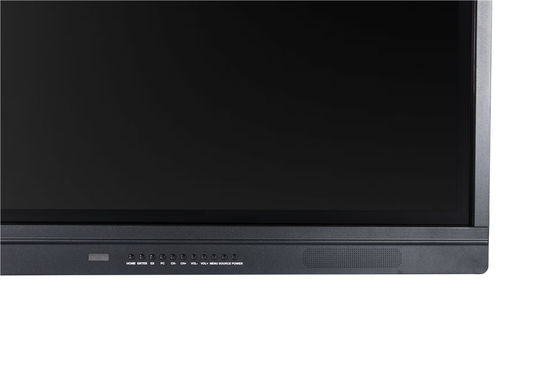

| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Built in camera | 8 Mega Pixels | |||
| Built in Microphone | 4 array built in microphones | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 10/20 touch points | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact us to know more detials.
