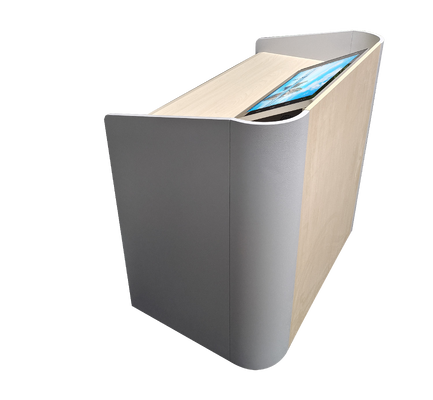

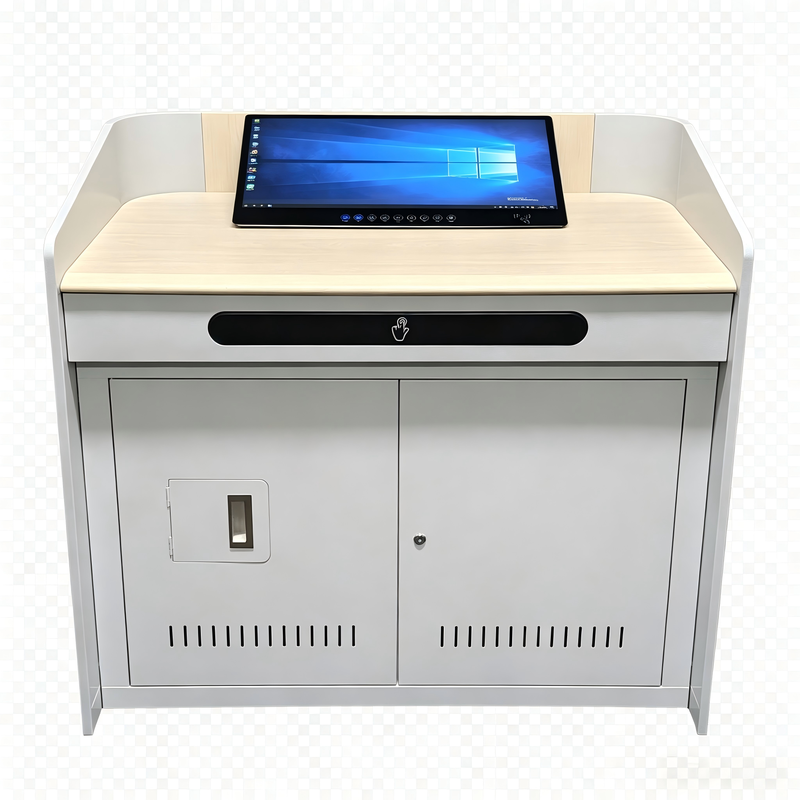

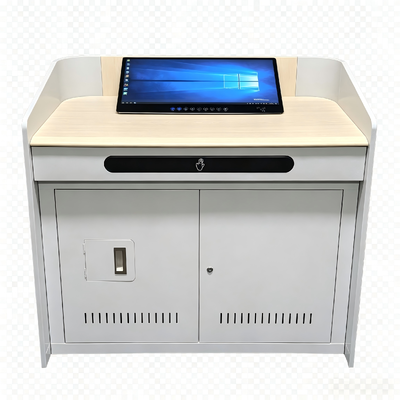

23.8 Inch Digital Podium Touch Table Desk Cabinet For Classroom Teaching Office Meeting

23.8 Inch Digital Podium Touch Table Desk Cabinet For Classroom Teaching Office Meeting

1. The size of the smart podium is: ≥1100mm *640mm*1000mm. The height of the podium is designed according to human mechanics and is suitable for teachers to teach..

2. The smart podium is designed with a combination of steel and wood. The overall frame is made of cold-rolled steel plate. The teacher's contact position is a wooden table top, and the contact surface with the teacher is arc-shaped to prevent collision.

3. The smart podium has a pop-up keyboard tray. When pressed, the keyboard and mouse tray will pop out. When not in use, just push them back.

★4. The smart podium has a built-in 12U standard cabinet + independent desktop space, which can accommodate multiple devices.

5. 1. The screen adopts ≥23.8-inch capacitive touch screen, covered with tempered glass panel, thickness ≥3mm; supports ≥10-point touch;

★2. The screen adopts a narrow-edge design, with black borders on the left, right and top sides ≤10mm.

★3. There are ≥ 9 physical shortcut buttons at the bottom of the screen. The button functions include system on/off, one-button screen off for the matching large screen, one-button volume up, one-button volume down, one-button mute, and a custom button. Users can customize the corresponding buttons according to their needs; the screen has a "button lock". When the class is temporarily ended, the teacher can press this button to lock the buttons to prevent students from operating them by mistake.

4. The side of the screen has ≥4 USB data ports, which can be connected to devices such as U disks, and can be recognized and communicated by the matching large screen; ≥1 VGA and HDMI IN interfaces, both of which can be connected to the computer screen to display on the screen and the matching large screen.

★5. Built-in side interfaces of the screen: HDMI IN ≥ 1; VGA ≥ 1; USB ≥ 4; RS232 ≥ 2; Type-B touch port ≥ 1 ; IO ≥ 1.

6. The bottom of the screen body has a built-in card swipe module; the podium screen supports device power-on or key unlocking via card swiping.

7. The screen is powered via an adapter without 220V AC input, ensuring safe operation.

8. Packing: disassembled parts.

Table: 1110*815*140mm /carton, 1110*590*180mm/carton, total 2 cartons, approx.120KGS

Display:645*160*470mm (product size:550.5*52.35*359.65mm)

N.W.:8KGS , G.W.:10KGS
