Projector Arm Ceiling mount universal for Laser projector Adjustable range 60~95 cm
Product Details:
| Place of Origin: | China |
| Brand Name: | iBoard/ OEM |
| Certification: | CE, RoHS |
| Model Number: | DW-10 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | USD13-USD20/ piece |
| Packaging Details: | Carton Package |
| Delivery Time: | 30-40 days |
| Payment Terms: | T/T |
| Supply Ability: | 5000 pieces per Month |
|
Detail Information |
|||
| Adjustable Range: | 60-95 Cm | Max Load: | 18 Kg |
|---|---|---|---|
| Rotation: | 360° | Material: | High Quality Carbon Steel |
| Up And Down: | ± 70° | Left And Right Tilt: | -70° |
| Weights: | 2.2/2.3kg | Application: | For Short Throw Laser Projector Arm Ceiling Mount |
Product Description
Projector Arm Ceiling mount universal for short throw projector
Adjustable range 60-96cm
Projector mounts Universal
Projector bracket
Specification
1. Head grasp installation hole distance: diagonal 30 cm-41cm.
2. The diameter of the outer tube is 45mm and the diameter of the inner tube is 40mm.

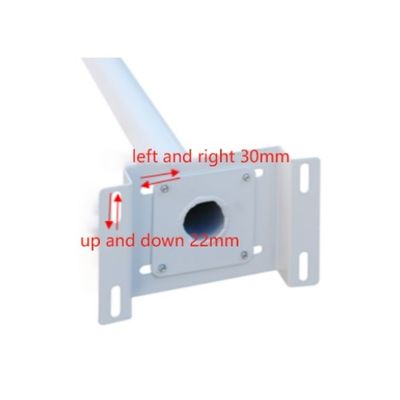

3. The upper and lower plate split design, easy to adjust the two dimensions (max 3cm).
4. The projector lens can be adjusted up and down by ± 70°, and left and right tilt by -70 degrees.
5. The grasping disc is round, the whole can realize 360° rotation.
6. All materials are high quality carbon steel, shot blasting after rust removal electrostatic spray.
7. The load bearing is less than 18 kgs.
8. Color in White.
9. With expansion screws for fixing the concrete ceiling.
10. With M4, M5, M6 and M8 screws for installing projector.
11. The tube can be used to hold the HDMI cable that comes with the projector.
Warranty 2 years.
Lifspan: 8-10 years.

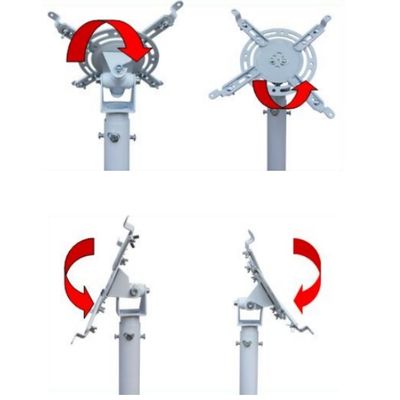

Adjustable mode:

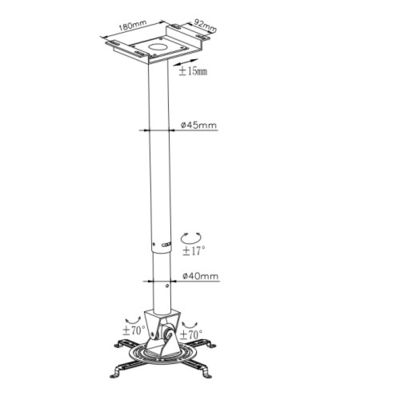

Reference dimension:
For more details, please feel free to check with our sales team: osd019@touch-easy.com
