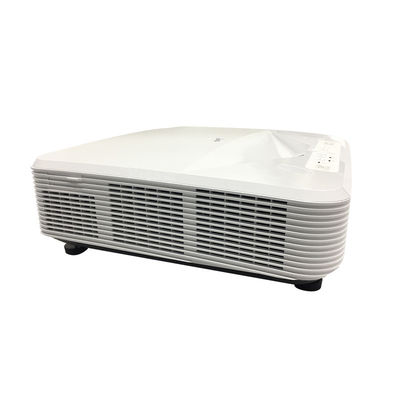

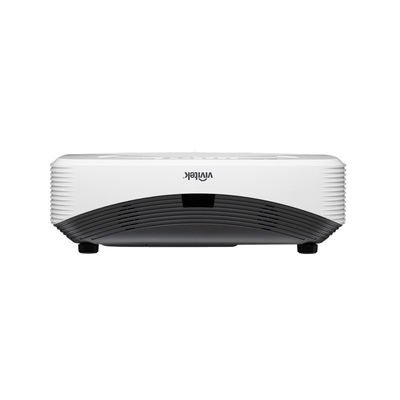

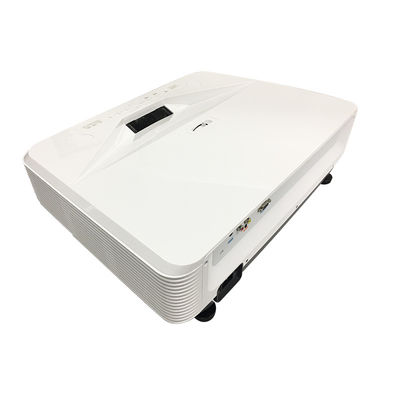

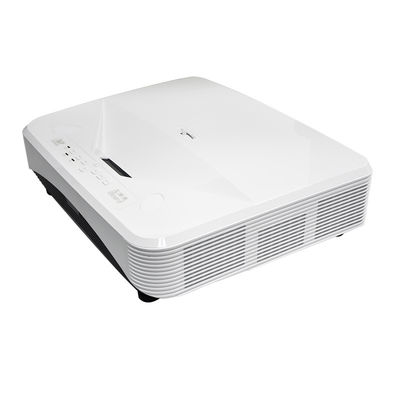

DLP Ultra Short Throw Laser Projector 3300 Lumen 1080p

Basic Information
Place of Origin: CHINA
Brand Name: Iboard
Certification: CE,FCC,ROHS,WEEE,etc.
Model Number: ILP-UF
Minimum Order Quantity: 1PC
Price: USD1500-1800/PC
Packaging Details: carton box, 1pc/box
Delivery Time: 15-20 working days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000PCS Per Month
Model: DLP Laster Projectors High Brightness Ultra Short Throw Projectors For Cinema Classroom Office Throw Distance: 41.35cm
Resolution: 1280*800 Light Source: Pure Laser Source (Mercury-free)
Brightness: 3300 Lumen Distance Ratio: 0.24
High Light:

DLP Ultra Short Throw Laser Projector

,

3300 Lumen Ultra Short Throw Laser Projector

,

ultra short throw projector 1080p

DLP Laster Projector Eye Protect High Brightness HD Image Ultra Short Throw Whiteboard Projector



Main Features:

Ultra short-throw, in short distance you can simply projector a screen of 80”, and suport up to 150 inch, support big screen projection. Support full 3D format, support 3D video playing and 3D class lessons.
This bring viewer a perfect watching experience and also make class vivid in classroom.

1. Eye-friendly
2. High Brightness 3300 ANSI up, some models at 5000 ANSI
3. Ultra Short-Throw ratio
4. Hight Contrast 35,000:1
5. Instant boot , 0 second shutdown
6. Low power consumption, no need to change light source
7. Dust-proof and quick heat dissipation design
8. Support full 3D video formats
9. Long life-span up to 20,000 hours

MODEL ILP-UA ILP-UB ILP-UE ILP-UF
BASIC PARAMETERS
Technology

DLP, WXGA DMD,

chipest:0.65"

DLP, WXGA DMD,

chipest:0.65"

DLP, WXGA DMD,

chipest:0.55"

DLP, WXGA DMD,

chipest:0.65"

Distance Ratio ★0.24 ★0.233 0.3 ★0.24

Throw Distance

(Projector to 80inch screen)

41.35cm 41.26cm 48.77cm
Brightness 3600 lumen 3600 lumen 3300 lumen 3300 lumen
Resolution 1280 x 800 1920 x 1080 1024 x 768 1280 x 800
Contrast 35000:1
Light Source Pure laser source (Mercury-free)
Lens Shift 130%+/-5%
Life Span 20000 Hours
Screen Size 80-150 inch
Auto keystone Correction ± 30°
Supporting Projection Ratio 16:10,16:9,4:3,16:6.
3D Format support ★Support FULL 3D format
COMPATIBILITY
PC (Resolution) VGA (640 x 480) to WUXGA (1920 x 1200)
Radio NTSC, PAL, SECAM,SDTV(480i/576i), EDTV(480p/ 576p), HDTV(720p, 1080i/p 60Hz)
CONNECTIONS

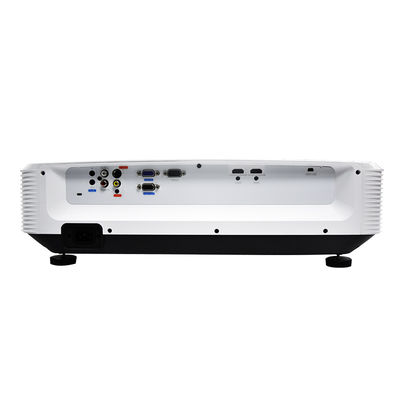

Input Port VGA in*1,Composite Video*1,S-video*1, Component video*1, HDMI input*2, Audio in*1, Audio L/R in*1 , mini-USB*1;
Output Port VGA out*1, audio out*1
Controller port RS232 (DB-9pin)*1
FEATURES
Power Consumption ≤280W ≤280W ≤230W ≤280W
Power Consumption (Standby) ★<0.5W
Scan Speed [H] 15 - 105 kHz ; [V] 50 - 120 Hz
Switch Time 0 second(Support quick recovery)
Power Supply AC 100 - 240 V, 50/60Hz
Automatic Shutdown ★Support in no signal(waiting time can be set freely)
Speaker 10Wx 1 (Built in)
PHYSICS
Net Weight 10kgs
Gross Weight 12.5kgs
Dimensions(WxHxD) 456 x 376 x 132 mm (W xHx D)
Packing Dimensions (WxHxD) 605*510*250(mm)
ACCESSORIES
Remote control x1; Power Cable(1.8m) x1; VGA(D-sub) cable(1.8m) x1; HDMI cable (1.8m) x1; Manual instruction x1(CD-ROM); Safety manual x1(with Safety Manual and Quick Start Gudie )
