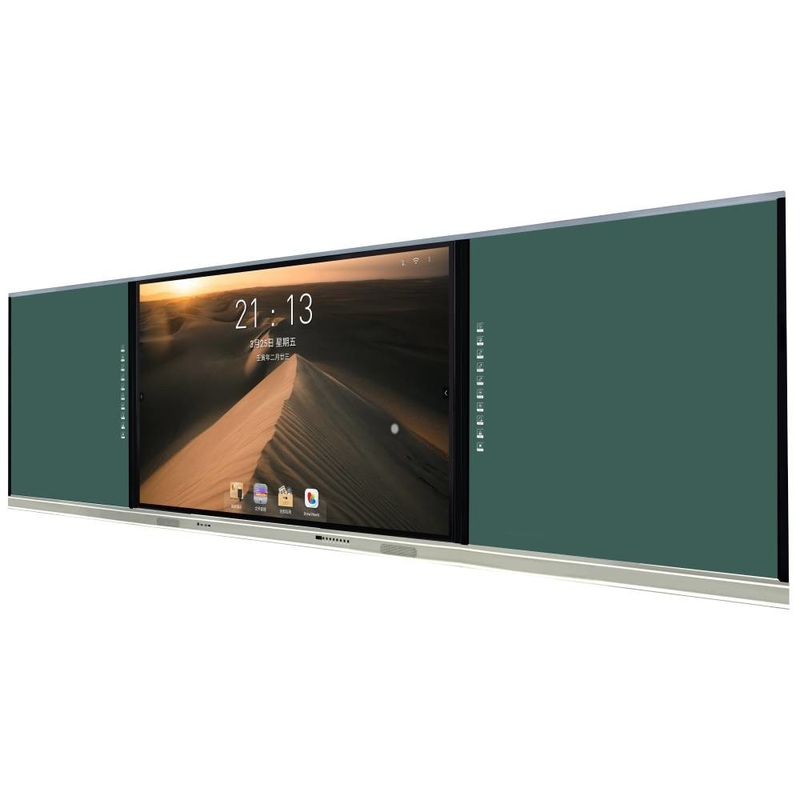

Intelligent Blackboard 75 86 inch Android Touch Panel Display with Max. 4 or 9 Screen Support for Enhanced Interaction
Product Details
| Panel Size: | 75"/86"optional | Android Version: | 8/9/11 Optional |
|---|---|---|---|
| Camera: | Out-connected Or Built In Optional | Mic: | Out-connected Or Built In Optional |
| Air Share: | Supporting | Applications: | School/office/meeting Room/auditorium |
| Side Bar: | Optional To Show On Left And Right Board | Annotation Software: | Supporting |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
Android Touch Panel Intelligent Blackboard,75 inch Intelligent Blackboard,86 inch Intelligent Blackboard |
||
Product Description
Intelligent Blackboard 75 86 inch Android Touch Panel Display Left and Right Board OPS Optional For School Meeting Kids
Optional to have Camera or Mic built in or out-connected by USB port.
Optional to have air share function. max. support 4 or 9 screens at one time .
| Product model | TE-ZS1-86 |
| Panel type | DLED |
| Resolution | 3840*2160 |
| Brightness | 350 cd/㎡ |
| Contrast ratio | 1200:1 |
| Display area | 1895.04*1065.96mm(85.6 inch) |
| Display ratio | 16:9 |
| View angle | 178° |
| Color | 10bit,10.7billion colors |
| Video System | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| Android system | 8.0 |
| Rom EMMC | 32G |
| RAM DDR3 | 4G |
| VGA input support resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| Touch response time | <15ms |
| Input ports |
Rear:HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1; USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1 Front:1*HDMI(Max support 3840*2160/60Hz),1*TOUCH USB,3* USB, 1*Type-c |
| Output ports | Rear:AV-out*1; HeadPhone*1; SPDIF*1;HDMI *1 |
| Front buttons | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME) |
| Rating voltage | AC(100-240)V～50/60HZ |
| Rating power | 3.5A |
| Work temperature | 0°C～40°C |
| Touch points | 20 |
| Touch object | Finger or pcap pen |
| Touch technology | Capacity |
| Accuracy | <2mm |
| Continuous response time | <8ms |
| Cursor speed | >240 dot/s |
| Touch interface | USB |
| Touch system support | WINDOWS /LINUX/MAC /Android |
| Touch times | Same position more than 60000000 times |
| Accessories | Touch pen x 1 |
| Touch USB(1.5M) x 1 | |
| Power cable(1.8M) x 1 | |
| Remote controller x 1 | |
| Product dimension | 4200*1306.5*127.6mm |
| Package dimension |
2172*280*1457mm *1 1250*235*1427mm*1 |
| N.W. | TBD |
| G.W. | TBD |
Middle display size optional :75" and 86“
Optional product series:QS/XP/YL series, you could contact us for details if interested in .
