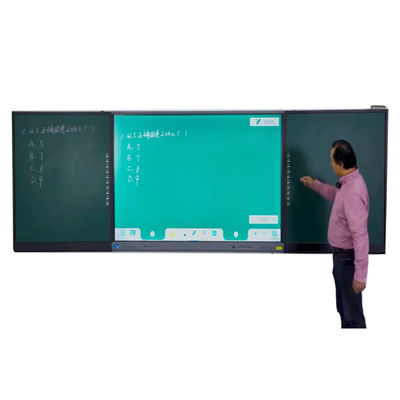

86'' Intelligent Smart Recordable Blackboard Green Board 4000:1 LED Android 9.0 350cd/m2 Interconnection Blackboard
Product Details
| LCD Type: | DLED | Physical Resolution Of LCD: | 3840*2160 |
|---|---|---|---|
| Brightness: | 350 Cd/㎡ | Contrast Ratio: | 4000:1 |
| Display Area: | 1895.04*1065.96mm(85.6 Inch) | Screen Scale: | 16:9 |
| Viewing Angle: | 178° | Video Format: | PAL、NTSC、SECAM |
| Board Color: | Green/black Optional | Screen Size: | 75''/86'' Optional(custom Available) |
| Logo: | OEM Available | Application: | Meeting Room/Classroom |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight |
86'' Intelligent Nano Blackboard,DLED LCD Intelligent Nano Blackboard,450cd/M2450cd/M2 Touch Screen Interactive Whiteboard |
||
Product Description
86'' Intelligent Smart Nano Blackboard LED Android 9.0 Screen Scale 350cd/m2 Interconnection Blackboard
Specifications:
| Products name | TE-GR-86 |
| LCD type | DLED |
| Physical resolution of LCD | 3840*2160 |
| Brightness | 350 cd/㎡ |
| contrast ratio | 4000:1 |
| Display area | 1895.04*1065.96mm(85.6 inch) |
| Screen scale | 16:9 |
| viewing angle | 178° |
| Color | 10bit,10.7 |
| Video format | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| Android system | 9.0 |
| Android system EMMC | 32G |
| Android system DDR3 | 4G |
| Computer VGA input support resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| Touch first response time | <15ms |
| Input port |
Front:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,1*USB 2.0,1*USB 3.0,1*TOUCH-USB,1*RS232,1*TF卡,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(support4.0),1*standardOPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front:1*HDMI(Max支持3840*2160/60Hz),1*TOUCH USB,3*复用USB |
| Output port | Post output:1*COXIAL,1*EARPHONE |
| Front button | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 3.5A |
| Working temperature | 0°C～40°C |
| Support touch points | 20 |
| Touch model | finger or touch pen |
| Positioning technology | Capacitance Technology/Infrared Technology |
| positioning accuracy | <2mm |
| Continuous response time | <8ms |
| Cursor speed | >240dot/mm |
| Touch screen system communication port | USB |
| operating system | Support WINDOWS/LINUX/MAC /Android |
| Touch times | More than 60 million times in the same location |
| Accessories | Touch pen x 1 |
| USB(touch line1.5M) x 1 | |
| power cable(1.8M) x 1 | |
| Software download card x 1 | |
| Remote control x 1 | |
| warranty card x 1 | |
| Bare metal size | 4200*1306.5*127.6mm |
Product Highlights

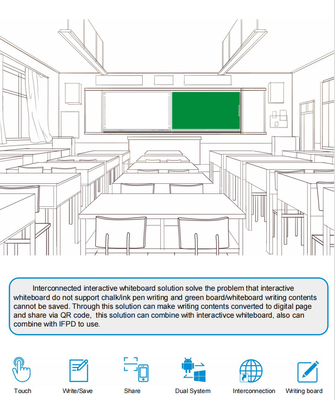

86' Intelligent Smart Nano Blackboard LED Android 9.0 Screen Scale 350cd/m2 Interconnection Blackboard Interconnected interactive whiteboard solution solve the problem that interactive whiteboard do not support chalk/ink pen writing and green board/whiteboard writing contents cannot be saved. ...
