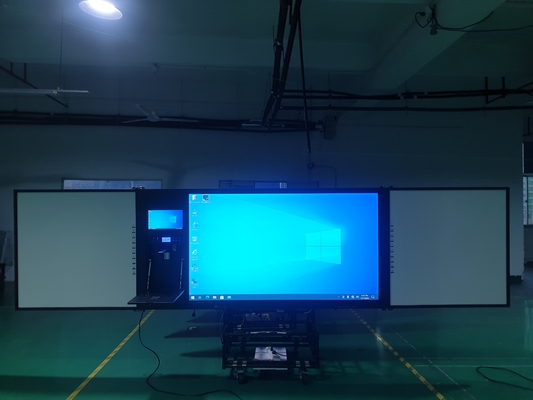

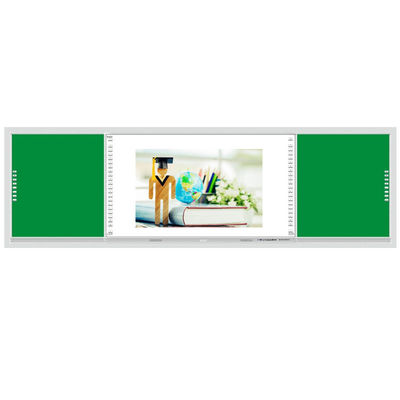

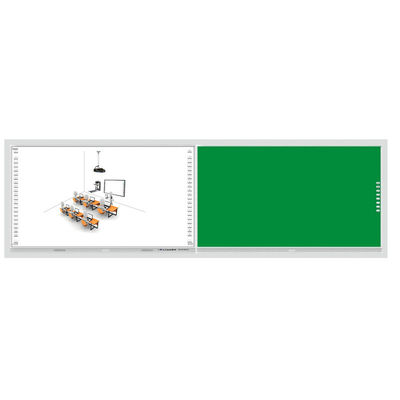

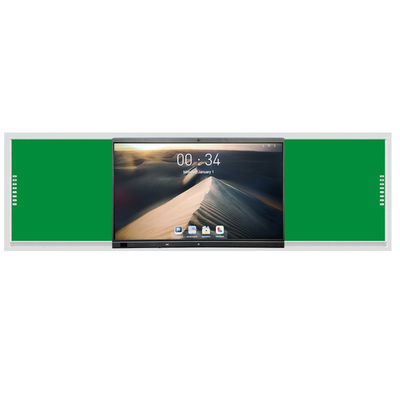

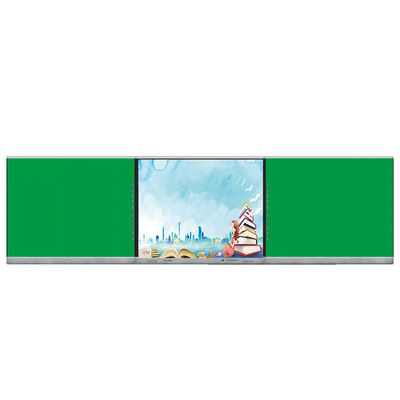

86 Inch Intelligent Blackboard Recordable Smart Screen Interactive Whiteboard With OPS 40 Touch Points Greenboard
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-GR-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 2200USD/PCS |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| LCD Type: | DLED Display | Touch Technology: | Infrared Touch |
|---|---|---|---|
| Ops: | Optional | Brightness: | 450 Cd/㎡ |
| Screen Scale: | 16:9 | Physical Resolution Of LCD: | 3840*2160 |
| Contrast Ratio: | 4000:1 | Viewing Angle: | 178° |
| Size: | 75''/86''/98'' | Power Supply: | AC 110V-240V, 50HZ |
| Response Time: | <6ms | Positioning Accuracy: | <2mm |
| Video Format: | PAL、NTSC、SECAM | Operating System: | Windows 7/Windows 10/Android |
| Backlight: | LED | Chalk Writing: | Support |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 86 Inch Interactive Whiteboard,Greenboard Interactive Whiteboard,Recordable Interactive Whiteboard |
||
Product Description
Specifications of Nano Blackboard:
| Products name | TE-GR-75 |
| LCD type | DLED |
| Physical resolution of LCD | 3840*2160 |
| Brightness | 350 cd/㎡ |
| contrast ratio | 1200:1 |
| Screen scale | 16:9 |
| viewing angle | 178° |
| Color | 10bit,10.7 |
| Video format | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| Android system | 9.0/11.0/13.0 |
| Android system EMMC | 32G/64G |
| Android system DDR3 | 3G/8G |
| Computer VGA input support resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| Touch first response time | <15ms |
| Input port |
Front:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,1*USB 2.0,1*USB 3.0,1*TOUCH-USB,1*RS232,1*TF卡,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth(support4.0),1*standardOPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front:1*HDMI(Max支持3840*2160/60Hz),1*TOUCH USB,3*复用USB |
| Output port | Post output:1*COXIAL,1*EARPHONE |
| Front button | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 3.5A |
| Working temperature | 0°C～40°C |
| Support touch points | 20 |
| Touch model | finger or capacitive pen |
| Positioning technology | Capacitance Technology |
| positioning accuracy | <2mm |
| Continuous response time | <8ms |
| Cursor speed | >240dot/mm |
| Touch screen system communication port | USB |
| operating system | Support WINDOWS/LINUX/MAC /Android |
| Touch times | More than 60 million times in the same location |

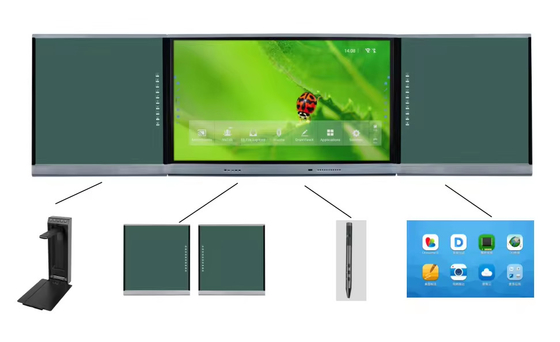

| Accessories | Touch pen x 1 |
| USB(touch line1.5M) x 1 | |
| power cable(1.8M) x 1 | |
| Software download card x 1 | |
| Remote control x 1 | |
| warranty card x 1 |
