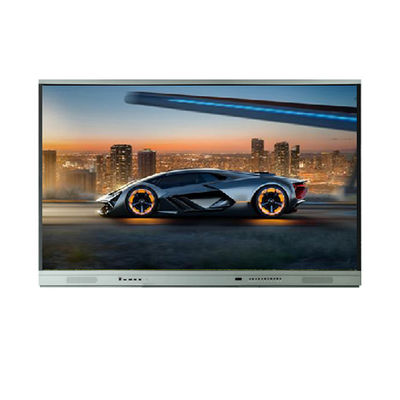

Zero Gap Interactive Touch Screen Whiteboard Infrared touch

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE, FCC, CB
Model Number: TE-XP2
Minimum Order Quantity: 1pc
Price: 800-2000USD
Packaging Details: carton & pallet
Delivery Time: 3-4weeks
Payment Terms: T/T
Supply Ability: 10000pcs/month
Product Name: Interactive Screen Whiteboard, Touch Monitro, Multi Touch Screen Size: 65'', 75'', 86''
Zero Gap: Yes Anti-glare Glass: Yes
Resolution: 3840*2160@60Hz Brightness: 350cd/m2
Touch Technology: Infrared Touch Points: 10
High Light:

Zero Gap Interactive Touch Screen Whiteboard

,

Infrared Interactive Touch Screen Whiteboard

,

Zero Gap infrared interactive whiteboard

Zero Gap 4K Interactive Touch Screen Whiteboard without projector for education and business meeting









Product introduce

iBoard TE-XP2 series is Latest advantage Model, Fashion Design  Six in one integrated design, one device is stronger than six devices, dismantable touch sensor module,convenient for repairing'

At the bottom frame of the IFPD, there is magnetic pen holding function, which makes it more convenient to place magnetic pens.





Dual Systems, Powerful Annotation Software

Android/Windows dual operation systems, each system function can be operated and managed independently, with simple UI interface;

Configure drawview x annotation software, support original handwriting with active pen, which can restore handwriting quickly and experience real writing feeling. The software also provide plenty of pens and presentation tools; support scanning QR code to email or take the meeting records via mobile phone.


UHD high definition, high brightness and high resolution LCD

4K image quality, more delicate picture, can complete a variety of high-definition display of graphic information;
The screen display has the advantages of high definition, low radiation, super wide viewing angle and little interference from external light.
Zero Gap Interactive Touch Screen Whiteboard Infrared touch 0

Reference Specification
Model TE-XP-65 TE-XP-75 TE-XP-86
Dispaly Backlight D-LED Backlight
Resolution 3840*2160 3840*2160 3840*2160
Brightness 350 cd/㎡ 350 cd/㎡ 350 cd/㎡
Contrast 1200:1 1200:1 1200:1
Screen Size(mm) 1428,5x803,5mm 1650x928mm 1895,04x1065,96mm
Aspect Ratio 16:9
View Angle 178°
Screen Mode 16:9/4:3/dot to dot/full screen
Color Depth 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors
Panel Response Time 8ms 8ms 8ms
Suport Resolution 4K Ultra HD 3840x2160













Android Specification

Android 8.0

2 x ARM Cortex-A73@1.5GHz

2 x ARM Cortex-A53@1.5GHz

ARM Mali-G51450MHz
2.4 and 5.0GHz WiFi;
Ram: 4G
Storage: 32G
Full support for FullHD and 4K relosution (with OPS slot working with 4k60Hz);
The file manager is supported
Screen sharing aplication is supported
Local and online supportfor music player.
Camera
microphone
Input Ports

HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1;

USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display Port x1

Output Ports AV-Out x1; Headphones out; SPDIF x1; HDMI output
Front Button POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME
Voltage AC(100~240)V-50/60HZ
Power Range Standby Power<1W Standby Power<1W Standby Power<1W
Rated Power<230W Rated Power<350W Rated Power<415W
