| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-TL-75 |
| Minimum Order Quantity: | 10 |
| Price: | USD950-980/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Model: | Infrared Interactive Whiteboard Built In Speakers With Ten Touch Points | Color: | Black Or Grey |
|---|---|---|---|
| Resolution: | 3840*2160 | Flash: | 16G/32G EMMC |
| Writing Mode: | Fingers Or Pen | Built In Speakers: | 2*15W |
| Lifetime: | 50000 Hours | Andriod Version: | 8.0 |
| Aspect Radio: | 16:10, 16:9... | Aspect Radio: | 16:10, 16:9... |
| Interface: | USB, VGA, RS232, HDMI | Screen Size: | 65",75",86", 98" |
| Multi-Touch: | Up To 40 Points | Hotkeys: | Two Sides Hotkeys |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 32G Interactive Whiteboards For Schools,4G Interactive Whiteboards For Schools,32G interactive smart boards for schools |
||

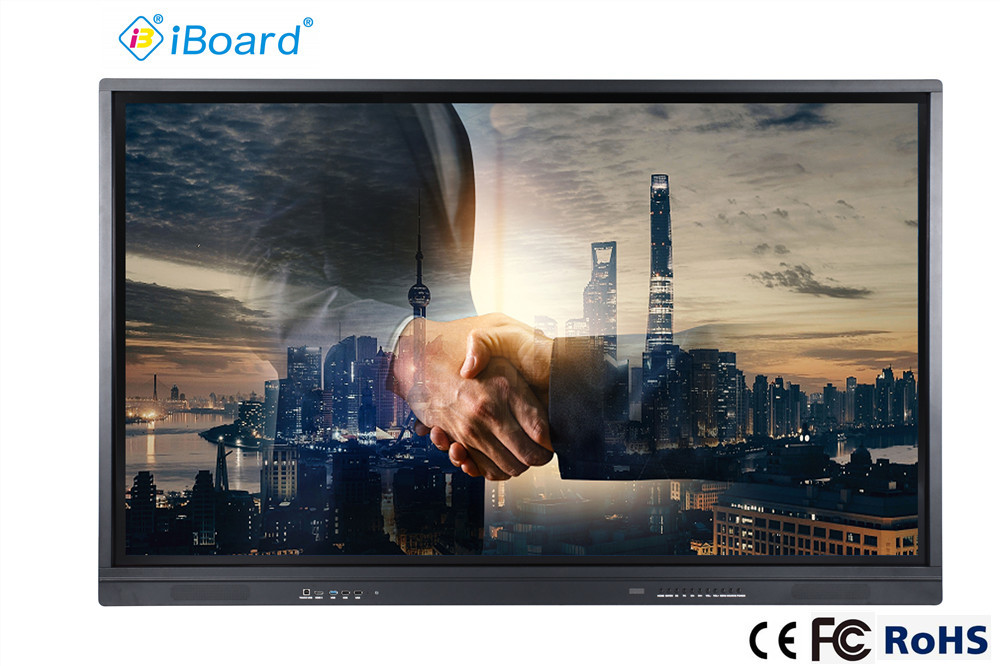

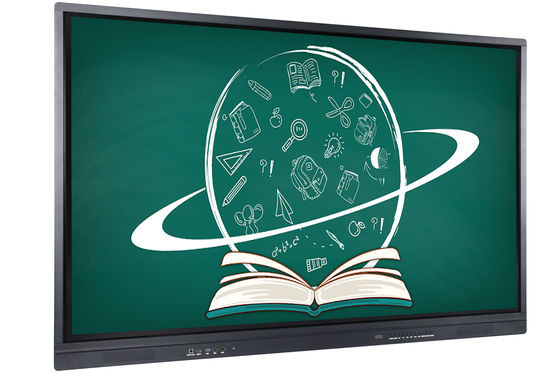

Infrared Interactive Whiteboard 4+32G 4mm Temper Glass Built In Speakers Ten Touch Points With 65 75 86 Inch Optional
Special points:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 8.0 OS, 11 keys in front and TOUCH USB PORT,HDMI PORT, USB PORT*3 input ports
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
9, optional magnetic penholder, can stick the magnetic pen on the frame
10, 11 front buttons, the most numbers in the market now, much easier for users operate the machine,TYPE-C Port is optional
11, highest screen display area, black area of scree no more than 2mm
12, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
13, With HDMI OUT port, extend the screen display
14, optional front Type-C port, support both video play and USB function
15, bulit-in video conference software, support video call after connect to camera
16, bulit-in screen share software, support screen projection from phone/PC/PAD/IFPD,etc.
| Model | TE-TL-65 | TE-TL-75 | TE-TL-75 |
| Display size | 1428.5*803.5mm | 1649.7*927.9mm | 1895.04*1065.96mm |
| Product size | 1555*943*99mm | 1776*1083*124mm | 2029*1229*130mm |
| Front keys |
POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME |
||
| Input ports |
Back: HDMI2.0*2, DP*1, VGA-IN*1, VGA Audio-input*1, YPBPR*1, AV-in*1, RS232 Series*1,USB3.0*1, USB2.0*1 , RJ45-in*1, WIFI(5G)*1 (with two antenna), SD Card*1, OPS Slot(Max support 3840*2160/60Hz)*1, Touch USB B Type*1 Front: USB2.0*3 , HDMI1.4(Max support 1920*1080/60Hz)*1, Touch USB B Type*1 |
||
| Output ports |
HDMI-out*1; SPDIF*1, Earphone*1, AV-Out*1
|
||
| Touch points |
10/20/32/40 touch points |
||
| Touch technology | Infrared touch | ||
| Model | TE-TL-65 | TE-TL-75 | TE-TL-86 |
| Rated voltage |
AC(100-240)V～50/60HZ |
||
| Rated current | 2.5A(including OPS) | ||
| Location resolution |
4096*4096/16384*16384/32768*32768 |
||
| Operating system |
WINDOWS/LINUX/MAC /Android |
||
Packing info.:
| Model | TE-TL-65 | TE-TL-75 | TE-TL-86 |
| Packing size | 1650*230*1050mm | 1908*265*1197mm | 2157*270*1343mm |
| N.W. | 50KGS | 61KGS | 78.5KGS |
| G.W. | 64KGS | 78KGS | 100KGS |
| Packing accessories | Touch USB Cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1 | ||
Applications:classroom,business center, office,lab,etc.
