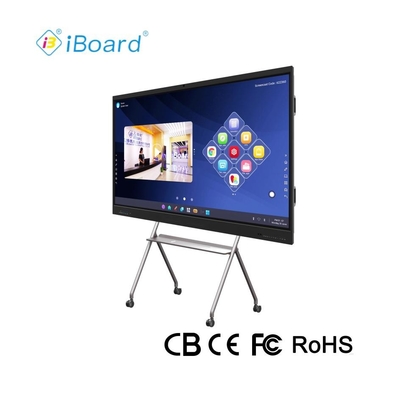

Iboard Factory Direct 75 Inch 4K Multi Touch Smart Screen Interactive Flat Panel Display Whiteboard for Meeting & Teaching
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TBA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 3 units |
|---|---|
| Price: | USD750-USD1500 per unit |
| Packaging Details: | Pallet packing size for 3pcs 75": 194*56*136cm |
| Delivery Time: | 15 working days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Size: | 75 Inch | System Support: | Andriod/Windows/Linux/Mac.etc. |
|---|---|---|---|
| Writing Software: | Yes | Application: | Teaching,meeting,HOME,training,education |
| Brightness: | 350 Cd/m2 | Input Voltage: | AC(110～240)V-50/60HZ |
| Touch Points: | Multi Touch | Positioning Accuracy: | <1mm |
| Installation: | Table Stand And Wall Mount | Display Feature: | LED Backlight |
| Response Time: | <6ms | Floor Stand: | Optional |
| Aspect Radio: | 16:9 | Interface: | HDMI In, HDHMI Out, DP, USB A, USB B, USB C, VGA, MIC, Etc. |
| Available Size: | 65",75",86", 98" | Default System: | Optional Non Android, Android 13 Or 14, Or With OPS For Windows Or Linux |
| RAM Available For Android: | 8G 16G 32G | Storage Available On Android: | 64G 128G 256G 512G |
| Warranty: | 3 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Build In Camera And Microphone: | Optional | Mobile Stand: | Optional |
| Colors: | Black, Grey, White | ||
| Highlight: | Meeting Interactive Touch Screen Monitor,4K Resolution Interactive Touch Screen Monitor |
||
Product Description
Ⅰ. Description Of Touch Interactive Display
Interactive touch display whiteboard is a computer-driven device that allows users to access and operate electronic files through a LCD display. The interactive LCD display is connected to the computer via USB, and then the computer is connected to the LCD display via a video cable. Also it is known as interactive screen, interactive whiteboard, smart whiteboard, touch screen display, touch monitor, LED touch monitor, touch interactive display, interactive flat panel display, touch screen, etc.
II. About IBOARD
We are a factory, have 14 years' experience on making OEM/ODM interactive flat panels and digital interactive whiteboard, we sold products to more than 80 countires in world, we own developed Infrared technology. We support ODM/OEM and SKD, support customize.
Our company has a strong R&D team, and the independently developed and produced IFPD, integrates functions such as LED display screens, computers, speakers, electronic whiteboards, and televisions.
III. Specification
| Model | TE-YL5C-65 | TE-YL5C-75 | TE-YL5C-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 13 or 14 | |||
| Ram: 8G, 16G, or 32G | ||||
| Storage: 64G, 128G, 256G or 512g | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Built in camera | 13 Mega Pixels or 48 Mega Pixels | |||
| Built in Microphone | 8 array built in microphones | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
Remark: For more details of the specification , please contact us to know more detials.
