| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | CE, FCC |
| Model Number: | IB-T |
| Minimum Order Quantity: | 10 |
| Price: | 150-600USD |
| Packaging Details: | carton |
| Delivery Time: | <100pcs, 2weeks |
| Supply Ability: | 20000pcs/month |
| Whiteboard Type: | Interactive Whtieboard, Electronic Whiteboard, Smart Whiteboard | OS Support: | Windows, Linux, Android, Mac, Chrome |
|---|---|---|---|
| Display Ratio: | 4:3 | Screen Size: | 82-120inch |
| Touch Technology: | Infrared | Touch Points: | 2-32points |
| Dry Erase: | Support | Fold: | No |
| Color: | Black, Gray, White, Etc | Warranty: | 3years |
| High Light: | 32 Multi Touch Screen Monitor,120inch Online Interactive Whiteboard,120inch Multi Touch Screen Monitor |
||

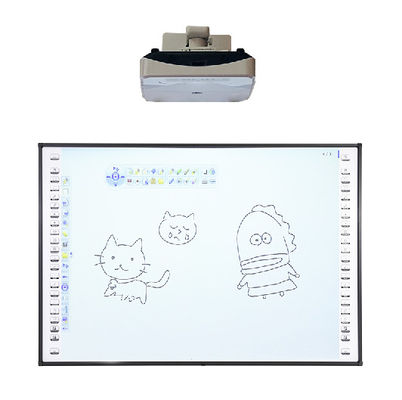

82~120inch infrared interactive whiteboard multi touch support Mac
TECHNICAL SPECIFICATIONS
| Hardware Special Features | Gesture recognition |
| Technology | Infrared |
| Touch Point | 10-32 touch |
| Cursor Speed | 180 dot/s |
| Display ratio | 4:3 |
| Resolution | 32767 x 32767 |
| Positioning Accuracy | <2mm |
| Connecting Port | USB 2.0 USB 1.1 USB 3.0 |
| View Angle | Horizontal 170°, vertical 160° |
| Operating System | Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -20°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |

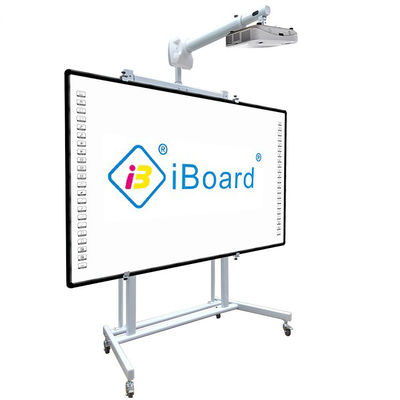

| Installation | Wall mounted, cabinets, mobile stand (optional) |
IB-T series infrared interactive whiteboard multi touch support Mac is one of iBoard most popular products, with slim frame, make the weight not heavey, and costly. board surface can be normal namo paint and ceramic, the board core can be potional with high denstiy polyfoam or honey comb. back is galvanized steel sheet, make the board life time long. PCB modular design, easy for after-sales. As for infrared advantage, that even there is scrath on the board surface, it would not affect the board use.
IB-T series use iBoard latest touch solution, mostly improve the writing experience, faster and smoothly. touch points support up to 32 points, make the moden education support more students participate in the teacher's classes.
Compare with tranditional black board, interactive whiteboard give much more sources and possibilities for the education, let the students swing in the ocean of knowledge. and the anti-glare surface with projector for display, can highly protect the users' eyes. simple board, not simple.
DRAW VIEW SOFTWARE
The Draw View software, used in conjunction with the Interactive Whiteboard, is a powerful and interactive tool, ideal for education and business applications. With the Interactive Whiteboard, users can perform many whiteboard functions, including handwriting, erasing, adding pages, inserting objects, recording, etc.
FINGER GESTURERECOGNITION
The Interactive Whiteboard supports Windows Gestures, also in the software, images can be easily moved, scaled and rotated with
your fingers making presentations more interesting, dynamic and interactive. Meanwhile, in our software, we also develop below few gestures to make operations smarter.
