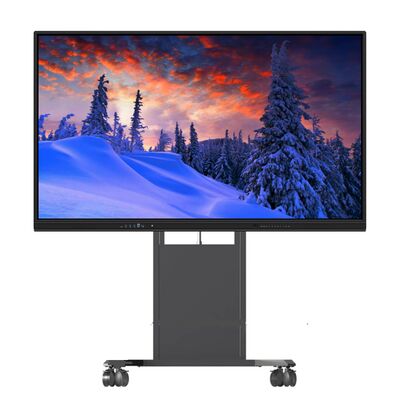

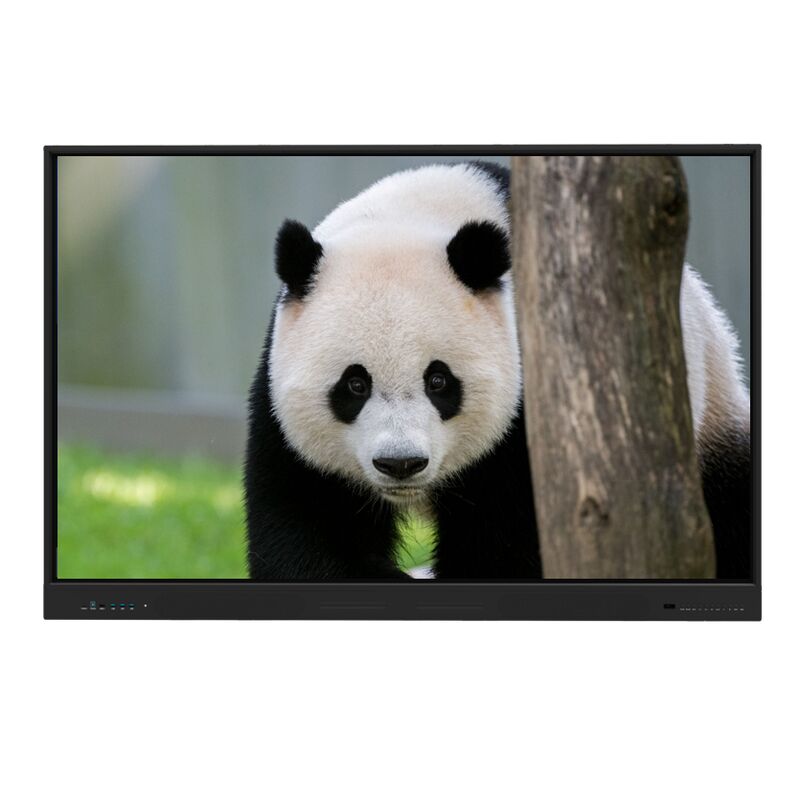

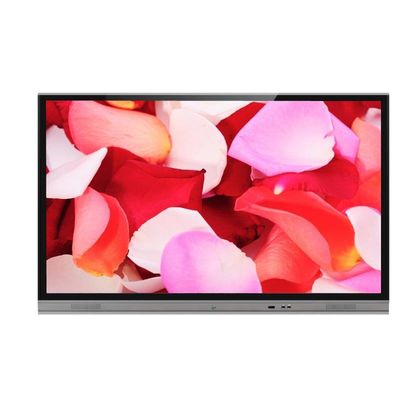

75 Inch Interactive Touch Screen Monitor with 20/40 Touch Points and Infrared Touch for School Teaching and Office Meetings
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CE, FCC, RoHS, Reach, CCC, TUV, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD520-USD1200 |
| Packaging Details: | Carton Package |
| Delivery Time: | 1525 days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 units per month |
|
Detail Information |
|||
| Material: | Aluminum Alloy Frame | Feature: | Infrared, LED Panel, Interactive |
|---|---|---|---|
| Color: | Black, Grey And Silver | Touch Points: | 20/40 Touch |
| Warranty: | 1 Year, Up To 3 Years | Writing Stylus: | Finger Or Any Opaque Object |
| Speed: | 5ms | Size: | 55/65/75/86/98 Inch |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI... |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Shipping Way: | Sea Shipping Air Freight Truck Freight | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight: | 470cd/m2 Interactive Touch Screen Monitor,Interactive Touch Screen Monitor Low Radiation,FCC IR Interactive Monitors |
||
Product Description
75 inch Interactive Touch Screen Flat Panel TV for School Teaching Office Meeting
75 inch Interactive Touch Screen TV
Multi Touch 4K Whiteboard For School And Conference
Key Features
- Dual System Operation
- Anti-glare Reflection Coating
- Eye Protection Technology
- Low Radiation Design
- Energy Efficient & Environmentally Friendly
- Multiple Connection Port Options
- High Accuracy ≤2mm Touch Precision
- Anti-scratch Tempered Glass Surface
- Multi-touch Support (20/40 Touch Points)
- Advanced Gesture Recognition
- Cross-Platform Compatibility: Windows/Linux/Mac/Chrome/Android
- Built-in Microphone & Camera (Optional)
- Remote Meeting Support
- Transcreen Functionality
Technical Specifications
DISPLAY
| Specification | Details |
|---|---|
| Screen Type | TFT LED |
| Display Ratio | 16:9 |
| Resolution | 3840(H) x 2160(V) - 4K Ultra HD |
| Display Area | 1650.2 x 928.3 mm (74.52 inch) |
| Brightness | 350 cd/m³ |
| Color Depth | 10bit(R), 1.07 Billion colors |
| Contrast | 1200:1/5000:1 |
| Life Time | 50,000 Hours |
| Response Time | 5-6ms |
ANDROID SYSTEM
| Component | Specification |
|---|---|
| Android Version | Android 13/14/15/16 |
| CPU | TBD |
DISPLAY CONNECTION PORTS
| Port Type | Details |
|---|---|
| Input Ports (Front) | HDMI; USB Touch Port (B)*1, USB*3 (multi use for Android, OPS and external PC); USB-C (optional) |
| Output Ports (Back) | AV-out*1; HeadPhone*1; SPDIF*1; HDMI *1 |
| Input Ports (Back) | HDMI 2.0 *2; VGA *1; Audio*1 (with VGA connection); USB 3.0 *1; USB 2.0 *1, RJ45 *1, SD CARD *1; AV-IN*1 (audio only); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1, DP *1 |
AUDIO & VIDEO
| Component | Specification |
|---|---|
| Built-in Camera | Optional built-in 48MP camera, 8 array microphone |
| Built-in Speakers | 2*15W / 2*20W + 1*20W |
TOUCH TECHNOLOGY
| Feature | Specification |
|---|---|
| Sensing Type | Infrared Touch |
| Writing Style | Finger; Stylus, any opaque object |
| Positioning Resolution | 32767 x 32767 |
| Communication Mode | Full-speed USB (Plug and Play) |
| Scanning Speed | 4ms |
| Surface Glass | 4mm tempered Glass |
| Response Size | ≥Φ3mm |
| OS Support | Android, Windows, Linux, Mac, Chrome |
INTERNET CONNECTIVITY
| Technology | Specification |
|---|---|
| Ethernet | 802.3 10/100 |
| WiFi | IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz or IEEE802.11an 2.4GHz |
| Bluetooth | 4.2/5.0/5.2 |
Included Accessories
- Touch Pen x 2
- Touch USB Cable x 1
- HDMI Cable x 1
- Power Cable x 1
- Remote Controller x 1
Applications
Certifications
Exhibition
Delivery & Shipping
Frequently Asked Questions
Are you a factory?
Yes, we are a factory. We're located in Shenzhen China.
How can I trust your product quality?
Quality is what we put first. From material purchasing to product delivery, we have our own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
What's your after-sale service?
If any problems occur, you will get our reply within 24 hours. Solution will be offered instantly.
Do you have MOQ?
Generally, our MOQ is 1 piece. But the larger the order is, the more discounts will be given.
Could you offer the OEM & ODM service?
Yes, we can. We've been providing OEM & ODM service for many world-class companies.
What's the lead time?
The lead time for sample would be 7 working days. As for large orders, it takes about 20-30 days.
