| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE FCC Rohs |
| Model Number: | TE-YL5W-75 |
| Minimum Order Quantity: | 2 pieces |
| Price: | USD999-USD1500 per piece |
| Packaging Details: | Export Cartons |
| Delivery Time: | 20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 8000 pieces per month |
| Screen Size: | 75 Inch, 65 / 86/98 Inch OPTIONAL | Touch Points: | 20 Points |
|---|---|---|---|
| Color: | Black, Grey, Silver (Other Colors Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Android, Windows | Brightness: | 350-400 Cd/m2 |
| Interface: | USB2.0/3.0,USB/RS232/RJ45,USB,HDMI... | Material: | Aluminum Alloy Frame |
| Certificates: | CE, ROHS, FCC... | Speakers: | 2x20W+1X20 W Subwoofer |
| High Light: | 75 inch LCD Smart Board,Interactive Touch LCD Smart Board |
||

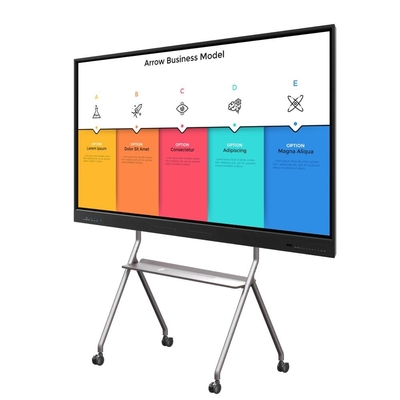

75 inch LCD Smart Board for School Office Conference
Description of 75 inch Interactive boards
Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in Android ( 4G+32G, 8G+64G/128G), come with OPS slot for windows system. Camera& mic optional, mobile stands/ different color for option. With better speakers 2X20 W+1X 20W subwoofer, no need extra sound bars.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Customized service for UI/ logo...
Easy for after-sales service;
Good quality control;
Firmware OTA upgrades for lifetime.
Specifecation of Interactive Touch Screen Monitor
| Model | TE-YL-65 | TE-YL-75 | TE-YL-86 (Even 98") | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 450 cd/㎡ | 450 cd/㎡ | 450 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 11.0-13.0 | |||
| Ram: 4G/8G | ||||
| Storage: 32G/64G/128G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13/48 Mega Pixels (Optional) | |||
| Built in Microphone | 6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact us to know more detials.
