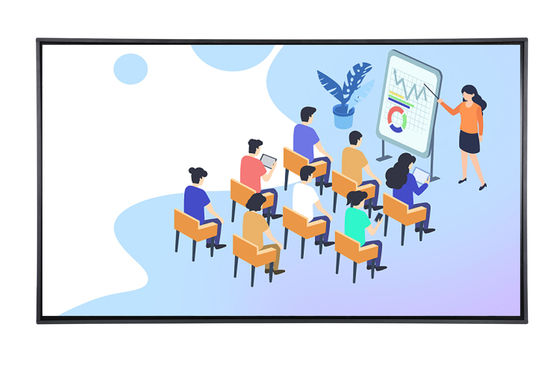

Android 8 OS Lcd Interactive Whiteboard RS232 Wifi Smart Board
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL5T-86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD950-980/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Model: | LCD Smart Board YL5T No Front Keys HDMI Output Multi Finger Touch | Color: | Black Or Grey |
|---|---|---|---|
| Resolution: | 3840*2160 | Flash: | 32G EMMC |
| Writing Mode: | Fingers Or Pen | RAM: | 4G DDR4 |
| Lifetime: | 50000 Hours | Andriod Version: | 8.0 |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | WIFI Lcd Interactive Whiteboard,RS232 Lcd Interactive Whiteboard,RS232 Wifi Smart Board |
||
Product Description
LCD Smart Board VGA HDMI Port RS232 WIFI Bluetooth Dual System Operation Power Button Side
Special points:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 8.0 OS,latest Android version for touch monitors No Key or Port in front of the frame
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, , multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
7, highest screen display area, black area of scree no more than 2mm
8, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
9, With HDMI OUT port, extend the screen display
10, bulit-in video conference software, support video call after connect to camera
11, bulit-in screen share software, support screen projection from phone/PC/PAD/IFPD,etc.
| Model | TE-YL5T-65 | TE-YL5T-75 | TE-YL5T-86 |
| Display size | 1428.5*803.5mm | 1649.7*927.9mm | 1895.04*1065.96mm |
| Product size | 1555*943*99mm | 1776*1083*124mm | 2029*1229*130mm |
| Front keys |
NO |
||
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*DP( (up to 3840*2160@60Hz)),1*VGA+AUDIO,1*YPBPR,1*AV,1*USB 3.0,1*USB2.0,1*TOUCH-USB,1*RS232,1*SD,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*BT(4.0) |
||
| Output ports |
1*HDMI out(4K/2K),1*SPDIF,1*EARPHONE,1*AV |
||
| Back key | POWER button at the Lower right rear corner | ||
| Touch points |
Single/Two/Four/Six/Ten points |
||
| Touch technology | Infrared touch | ||
| Model | TE-YL5T-65 | TE-YL5T-75 | TE-YL5T-86 |
| Rated voltage |
AC(100-240)V～50/60HZ |
||
| Rated current | 2.5A(including OPS) | ||
| Location resolution |
4096*4096/16384*16384/32768*32768 |
||
| Operating system |
WINDOWS/LINUX/MAC /Android |
||
Packing info.:
| Model | TE-YL5T-65 | TE-YL5T-75 | TE-YL5T-86 |
| Packing size | 1650*230*1050mm | 1908*265*1197mm | 2157*270*1343mm |
| N.W. | 50KGS | 61KGS | 78.5KGS |
| G.W. | 64KGS | 78KGS | 100KGS |
| Packing accessories | Touch USB Cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1 | ||
Applications:classroom,business center, office,lab,etc.
