| Place of Origin: | China |
|---|---|
| Brand Name: | IBOARD |
| Certification: | CE CF FCC |
| Model Number: | TE-YL-98E2 |
| Minimum Order Quantity: | 1SET |
| Price: | USD2000-2700/SET |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 18 working days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 20000 units/month |
| LCD Type: | DLED | Physical Resolution Of LCD: | 3840*2160 |
|---|---|---|---|
| Brightness: | 350 Cd/㎡ | Contrast Ratio: | 4000:1 |
| Screen Scale: | 16:9 | Viewing Angle: | 178° |
| Panel Display Size: | 75/86/98 Inch Optional | ||
| High Light: | Recordable Intelligent Blackboard,98 inch Interactive Greenboard,Touch Screen Interactive Greenboard |
||

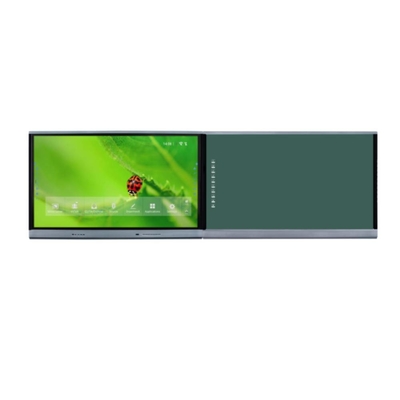

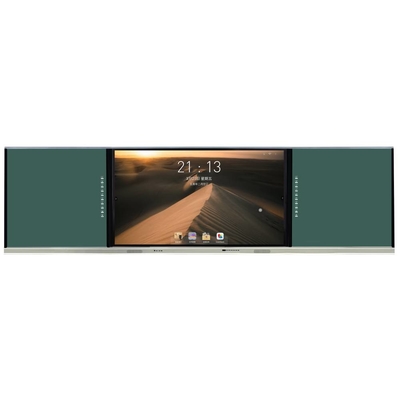

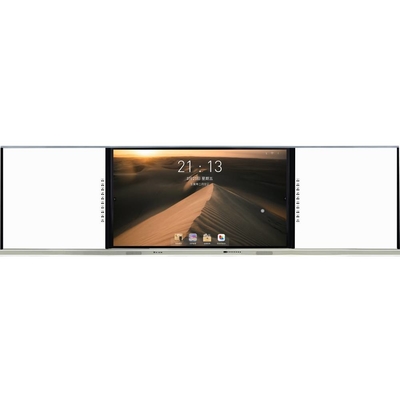

Intelligent Blackboard Customize Recordable 75 86 98 inch Whiteboard Interactive Touch Screen Interactive Greenboard
Appearance | To match with the main display unit |
Size | Customized as per the height of main display unit |
Surface Selection | Whiteboard/Greenboard |
Touch Technology | Infared touch |
Touch method | Finger, Pointer or any other opaque object |
Touch | Support Touch ON/OFF via hotkey |
Gesture Recognition | Support |
File Saving | Support saving files as PPT/Word/PDF/image format. |
Touch Point | 10 |
Cursor Speed | 180 dot /s |
Touch Resolution | 32768x32768 |
Effect Touch Object Size | >8mm |
Touch Method | Finger or Pen |
Positioning Accuracy | <2mm |
Touch lifetime | More than 60,000,000 single touch or click |
Connecting Port | USB 2.0 |
Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
Working Condition | Indoor or Outdoor |
Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
LCD Screen Specification:
| Products name | TE-YL-98E2 |
| LCD type | DLED |
| Physical resolution of LCD | 3840*2160 |
| Brightness | 350 cd/㎡ |
| contrast ratio | 4000:1 |
| Display area | 1895.04*1065.96mm(85.6 inch) |
| Screen scale | 16:9 |
| viewing angle | 178° |
| Color | 10bit,10.7 |
| Video format | PAL,NTSC,SECAM |
| Sound System | D/K, B/G, I,M |
| Android system | 13.0 |
| Android system EMMC | 32G/64G |
| Android system DDR3 | 4G/8G |
| Computer VGA input support resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| Touch first response time | <15ms |
| Input port | Rear: HDMI x2 (4K@60Hz), USB2.0x1,USB 3.0 x2(OPS/Android access automatically), |
| Output port | HDMI OUT x1(4K@60Hz),COAXIAL x1,Earphone x1, LAN OUT x1 |
| Front button | POWER SOURCE MENU VOL- VOL+ REC A.BLUE PC ES RATIO HOME |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 4A |
| Working temperature | 0°C～40°C |
| Support touch points | 10/20/40/50 points |
| Touch model | finger or capacitive pen |
| Positioning technology | Capacitance Technology |
| positioning accuracy | <2mm |
| Continuous response time | <8ms |
| Cursor speed | >240 dot/mm |
| Touch screen system communication port | USB |
| operating system | Support WINDOWS/LINUX/MAC /Android |
| Touch times | More than 60 million times in the same location |
| Accessories | Touch pen x 1 |
| USB(touch line1.5M) x 1 | |
| power cable(1.8M) x 1 | |
| Wall mounted bracket*1 | |
| Remote control x 1 | |
| warranty card x 1 |
Real photos:
Certificate:
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
