Intelligent Blackboard Big Display 75 86 Inch Android WIN Touch Panel Display OEM White Blackboard USB Class Monitor
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | iBoard support OEM / ODM |
| Certification: | CCC, CE, RoHs, FCC, ISO |
| Model Number: | TE-YL-86E2 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 150 pcs |
|---|---|
| Price: | USD2000-2800/SET |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Size: | 75/86/98 Inch | Android OS: | 13 Or 14 OS |
|---|---|---|---|
| Win OS: | 10 Or 11 Pro Optional To Active Or Pre-installed | Touch Technology: | Infrared Touch |
| Whiteboard: | Optional To Be In White/green/black | Packing: | 1 Set Into 2 Cartons |
| Glass: | Tempered Glass | ||
| Highlight: | 75 Inch Intelligent Blackboard,Class Intelligent Blackboard,OEM blackboard whiteboard |
||
Product Description
Intelligent Blackboard Big Display 75 86 Inch Android WIN Touch Panel Display OEM White Blackboard USB Class Monitor
Advantages:

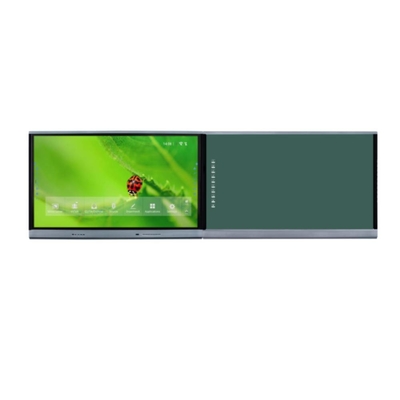

1.Double boards solutions
The main board uses Android all-in-one Interactive whiteboard built in with OPS computer, speakers , central control,etc. The sideboard use an interconnected writing board, the sideboard size can be customized as per the height of Andorid all-in-one interactive whiteboard.

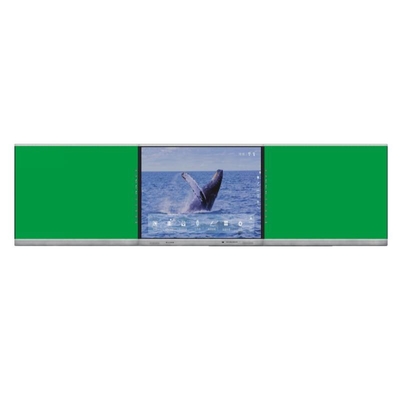

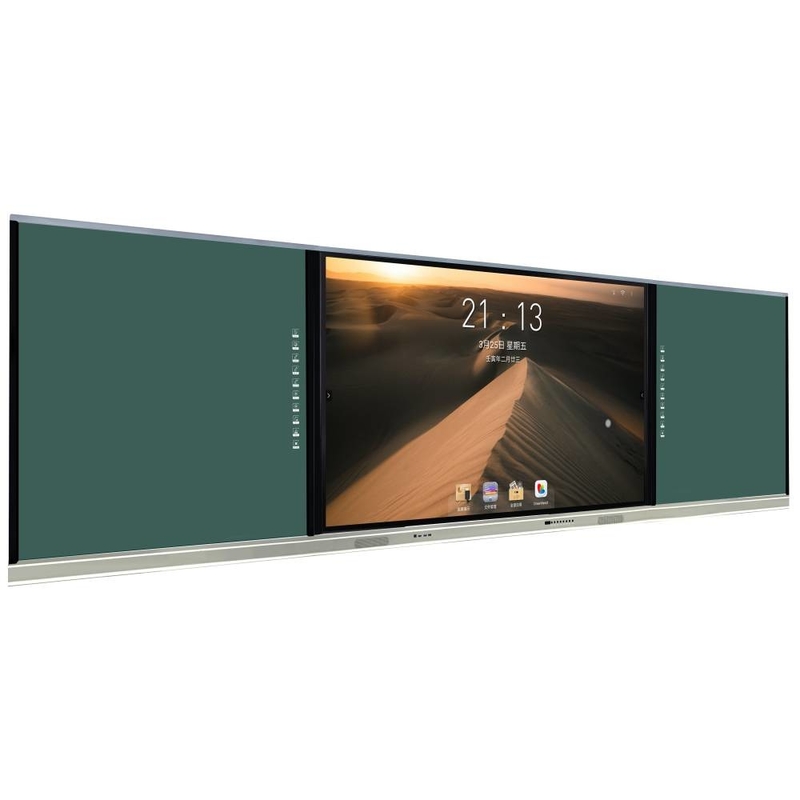

2.Three boards solutions
The central main board uses Android all-in-one Interactive whiteboard built in with OPS computer, speakers , central control,etc. The left and right sideboard use an interconnected writing board, the sideboard size can be customized as per the height of Andorid all-in-one interactive whiteboard
3.IFPD with sideboards solutions
The central unit uses an IFPD . The left and right sideboard use an interconnected writing board, the sideboard size can be customized as per the height of IFPD. Suggest to use 86” IFPD, the sideboard contents can be synchronized to the IFPD screen
Data sheet:
| Interconnection board Specification | |
| Appearance | To match with the main display unit |
| Size | Customized as per the height of main display unit |
| Surface Selection | Whiteboard/Greenboard |
| Touch Technology | Infared touch |
| Touch method | Finger, Pointer or any other opaque object |
| Touch | Support Touch ON/OFF via hotkey |
| Gesture Recognition | Support |
| File Saving | Support saving files as PPT/Word/PDF/image format. |
| Touch Point | 10 |
| Cursor Speed | 180 dot /s |
| Touch Resolution | 32768x32768 |
| Effect Touch Object Size | >8mm |
| Touch Method | Finger or Pen |
| Positioning Accuracy | <2mm |
| Touch lifetime | More than 60,000,000 single touch or click |
| Connecting Port | USB 2.0 |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 200mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
Packing: 1 set in 2 cartons, if with panel display then display in one carton, sided board into one carton.
Applications: university/campus/big meeting room/presentation occasions/teaching occasions,etc.
