| Place of Origin: | CHINA |
|---|---|
| Brand Name: | IBOARD |
| Certification: | CE/FCC/ROHS，etc. |
| Model Number: | TE-QS-55 |
| Minimum Order Quantity: | 1PC |
| Price: | USD450-580/PC |
| Packaging Details: | 1pc/carton, optional to be in wooden pallet or crate |
| Delivery Time: | 15-18 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000PCS PER MONTH |
| Size: | 55/65/75/86/98/105/110 Inch | Android Os: | 13 |
|---|---|---|---|
| Win OS: | Optional To Actived For 10 Or 11 Pro | Contrast: | 4000:1 |
| Material: | Aluminum Frame+backlight Display | Packing: | Carton Box |
| High Light: | Win OS Interactive Touch Screen Whiteboard,Android OS Interactive Touch Screen Whiteboard,School Office Interactive Touchscreen Whiteboard |
||

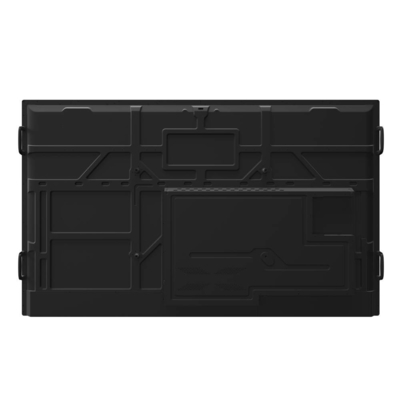

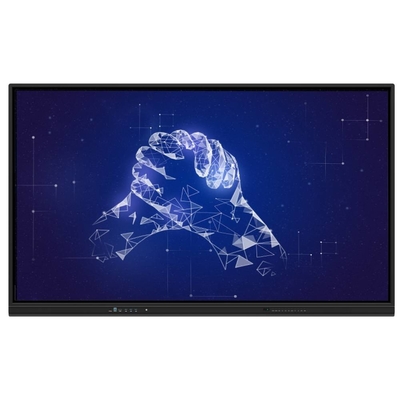

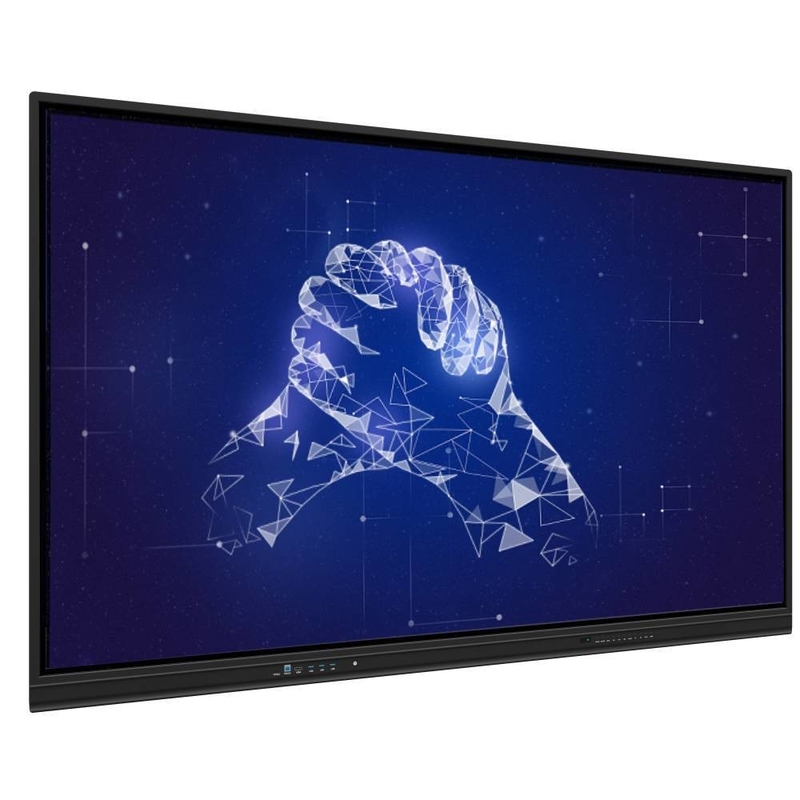

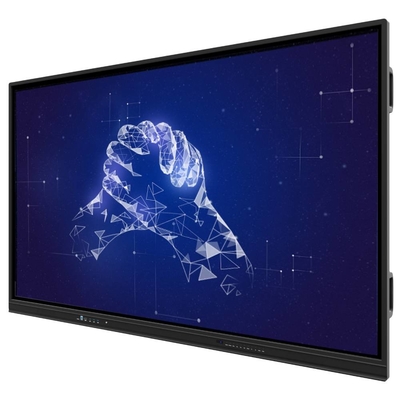

Interactive Touch Screen Whiteboard Media TV Video Player Display With Android Win OS USB VGA AUDIO For School Office
Advantages features:
1.Panel has two WIFI connections
2.USB-C on the front support : touch , data, video projection and charging, one cable is enough when connect to a PC with type-C port.
3.One LAN in (RJ45-in) and one LAN out (RJ45-out) to provide internet to external device
4.iMagic MDM: an iBoard developed device management software on Android, to manage your IFPDs, support install/uninstall apps of IFPD remotely.
5.Optioanl built in 13MP camera and 4/6 ray MIC, with additional costs.
6.Size available:55/65/75/86/98/105/110 inch
7. Supporting wireless share upto 9 screens for pad/phone/laptop/IFPD
8.Applications: school/online teaching/presentation/training/office/business center,home,etc.
9.OEM ODM available.
Data Sheet:
| Item | Interactive Touch Screen Whiteboard Media TV Video Player Display With Android Win OS USB VGA AUDIO For School Office |
| Model | TE-QS-55 |
| Dsiplay size (mm) | 1212*682 |
| Resolution | 3840*2160 |
| Response time | 6ms |
| Touch technology | infrared touch |
| Contrast | 4000:1 |
| Speaker | 2*15W |
| Glass | 4mm tempered glass 7H hardness |
| Brightness | 350cd/m2 |
| Android OS |
13 with 4+32G/8+64G Dual 5.0GHz WiFi Moudle , one for WIFI, one for hotspot. Ethernet 10/100/1000 network card with RJ45 connector.
|
| Input ports | Rear: 2*HDMI2.0, 1*VGA&AUDIO IN, 1*YPBPR, 2*USB 3.0, 1*USB2.0, 1*TOUCH-USB, 1*TF card, 1*RS232, 1*RJ45 IN, 1*AV IN, 1*MIC IN, 1*DP, 1*Type C(only for USB), 1*OPS SLOT Front: 1*HDMI2.0, 1*TOUCH USB, 3*USB3.0, TYPE-C (Support Touch, Data, Video and Audio transfer, charging(standard 15W, optional 65W) |
| Ouput ports | 1*HDMI-out, 1*COAXIAL, 1*Earphone, 1*RJ45 OUT, 1*AV OUT |
| Front keys | 8KEY(POWER,SOURCE,MENU,VOL-,VOL+,HOME,ENTER, ES) |
| Camera or mic | optional to be built-in for 8mp/13mp/48mp camera or 4/6/8mic |
| NFC function | optional |
| Fingerprint function | optional |
| Accessories | touch pen*2, HDMI cable*1, Touch USB cable*1, power supply cable, remote controller *1.wall mounted bracket*1 set, movable stand (optional) |
| Packing size | 1385*920*194mm |
| N.W.(KGS) | 20 |
| G.W.(KGS) | 26 |
Powerful sofware: with iboard whiteboard software, for zoom in ,zoom out, ppt presentation,meeting room,etc.
Packing: 1pc/carton, optional to be with wooden crate or pallet
