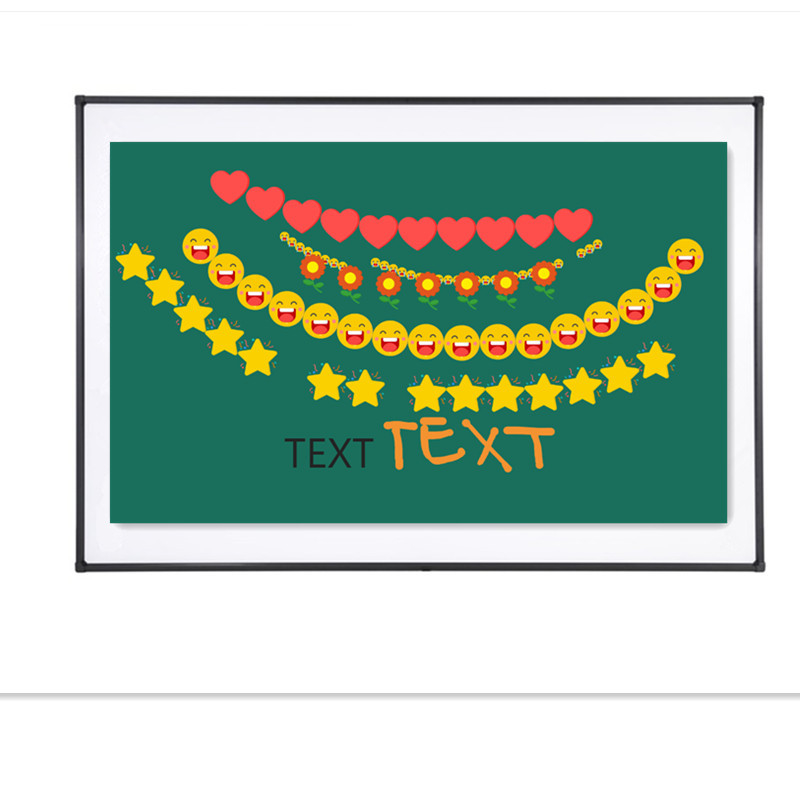

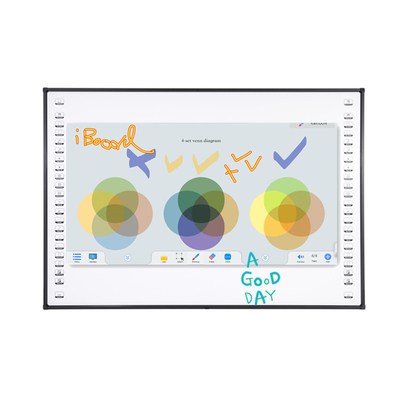

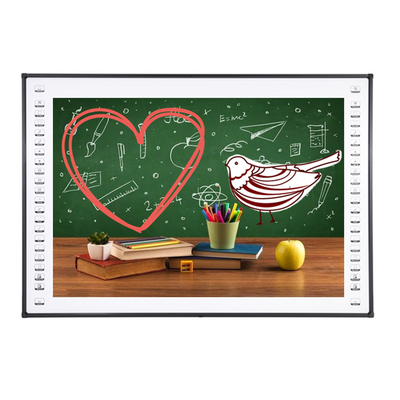

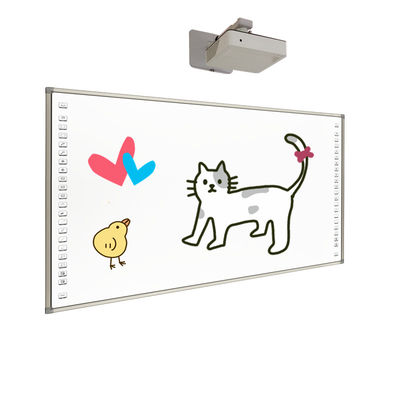

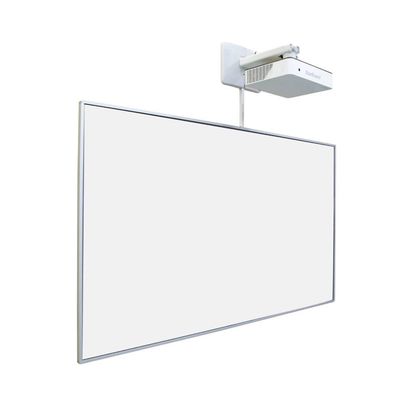

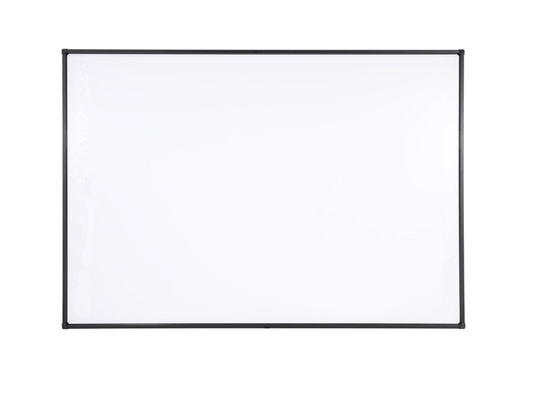

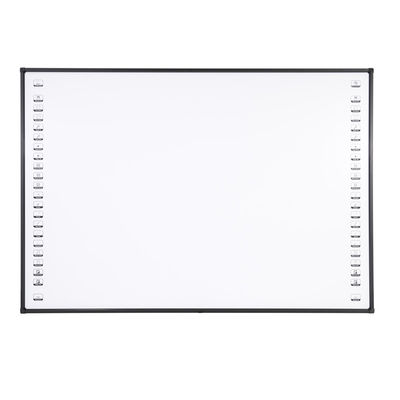

78 Inch Infrared Interactive Whiteboard For Projector Whiteboard
Product Details
| Size: | 78 Inch, 82/ 86/96/102/120 Inch Optional | Aspect Radio: | 4:3 |
|---|---|---|---|
| Total Area: | 1525*1265mm | Projection Area: | 1479*1109mm |
| Resolution: | 32768*32768 | Weight: | 17 Kg |
| Certificates: | CE/FCC/Rohs | Interface: | USB |
| Hotkeys: | Two Sides Hotkeys Or Empty | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 10 Points | Warranty: | 3- Year |
| Operation System: | Windows, Andriod/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Colors: | Black Or OEM |
| Highlight |
Infrared Interactive Whiteboard For Projector,78 Inch infrared whiteboard,infrared Projector Whiteboard |
||
Product Description
78 inch infrared Interactive White board
for Projector touch Projection
Specification
Surface Material: Cold rolled steel surface, anti-damage, nano surface, compatible with dry ̶ erase markers, easy cleaned with white board cleaner.
Wick Material: High density polyfoam// Aluminum Honeycomb (optional)
Back: Galvanized Steel Sheet
DRAWVIEW SOFTWARE
The Draw View software, used in conjunction with the Interactive Whiteboard, is a powerful and interactive tool, ideal for education and business applications. With the Interactive Whiteboard, users can perform many whiteboard functions, including handwriting, erasing, adding pages, inserting objects, recording, etc.
FINGER GESTURE RECOGNITION
The Interactive Whiteboard supports Windows Gestures, also in the software, images can be easily moved, scaled and rotated with
your fingers making presentations more interesting, dynamic and interactive. Meanwhile, in our software, we also develop below few gestures to make operations smarter.
| Hardware Special Features | Gesture recognition |
| Technology | Infrared |
| Input Methods | Finger, stylus, or any other opaque object |
| Touch Point | 10 touch points |
| Cursor Speed | 180 dot/s |
| Display ratio | 4:3, 16:9 16:10 |
| Resolution | 32768 x 32768 |
| Positioning Accuracy | <2mm |
| Connecting Port | USB 2.0 USB 1.1 USB 3.0 |
| View Angle | Horizontal 170°, vertical 160° |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.6V- 5.0V <1W ( 100mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation | Wall mounted, cabinets, mobile stand (optional) |
| Warranty | 3 years |
Application:
Certification:
Packing and delivery:
Exibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first . From material purchasing to product delivery, we have own professional
staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 10 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies .
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
