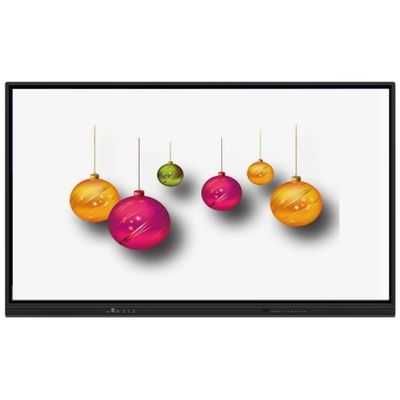

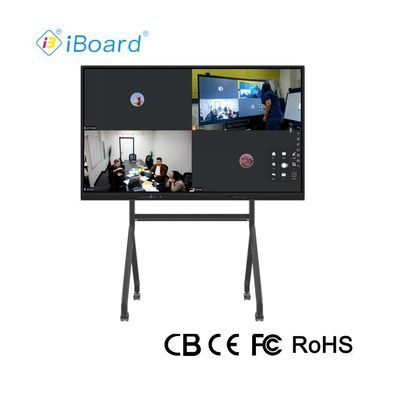

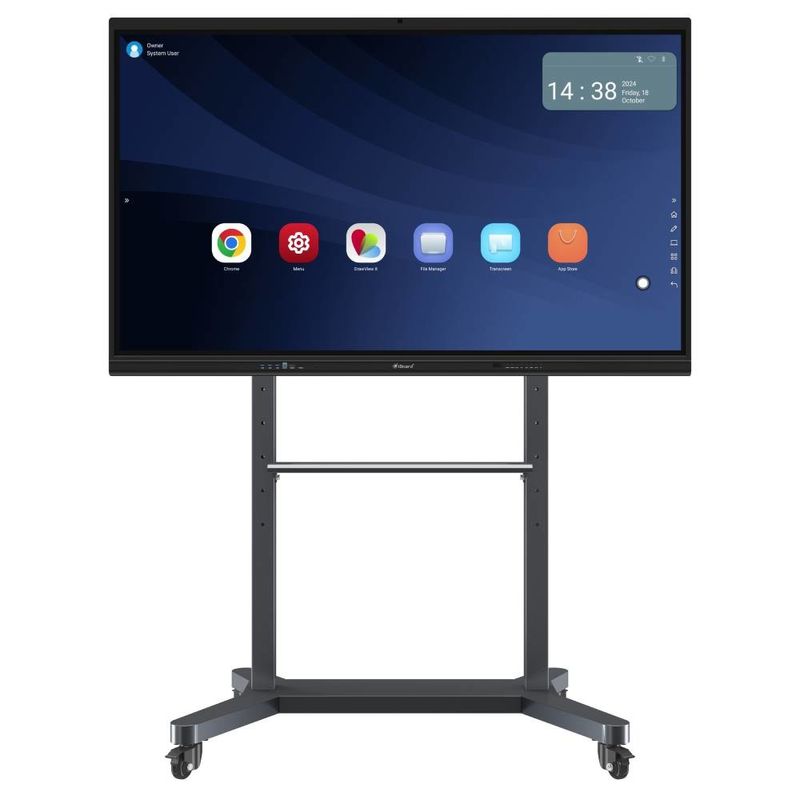

86 Inch Interactive Touch Screen Interactive whiteBoards With Mobile Stand or Wall mounts
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CE, FCC, RoHS, Reach, CCC, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS86 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Price: | USD750-USD1500 per piece |
| Packaging Details: | Carton Package, Wooden case or wooden crate optional |
| Delivery Time: | 10-30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 8000 units per month |
|
Detail Information |
|||
| Screen Size: | 86 Inch | Touch Points: | 20-50 Points |
|---|---|---|---|
| Color: | Black, Grey, Silver (Other Colors Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Built In Android, Windows Optional | Brightness: | 400cd/m2 |
| Interface: | USB, VGA, RS232, HDMI, DP... | Material: | Aluminum Alloy Frame |
| Certificates: | CE, ROHS, FCC... | Aspect Radio: | 16:9... |
| Screen Size: | 65",75",86", 98" | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Warranty: | 1 Year, Up To 3 Years | Power Supply: | AC 100-240V, 50/60Hz |
| Support System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 2mm |
| Mobile Stand: | Optional | Microphone: | Optional Built In 8 Array Mic |
| Camera: | Optional Built In Or External | ||
| Highlight: | Interactive Touch screen monitor FCC,Mobile Stand Interactive Touch screen monitor,86 Inch Interactive Boards |
||
Product Description
86 inch Interactive touch screen
Interactive boards with stands or Wall mounts
Description of Multi touch screen monitors
Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in Android ( 4G+32G/8G+64G), come with OPS slot for windows system. Camera& mic optional, different color for option.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard software for free;
SKD support;
Easy for after-sales service;
Good quality control;
Firmware OTA upgrades for lifetime.
Specifecation of Interactive Touch Screen Monitor
| Model | TE-QS-65 | TE-QS-75 | TE-QS-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 450 cd/㎡ | 450 cd/㎡ | 450 cd/㎡ | |
| Contrast | 1200:1 or higher | 1200:1 or higher | 1200:1 or higher | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android latest version | |||
| Ram: 8G/16G | ||||
| Storage: 128G/256G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,...etc | |||
| Built in camera | 13/48 Mega Pixels (Optional) | |||
| Built in Microphone | 6/8 array microphones (Optional) | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points for both android & windows | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 4~8ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB(full speed) | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
Remark: For more details of the specification , please contact the sales team OSD019@TOUCH-EASY.COM to know more detials.
