Place of Origin: | CHINA |
---|---|
Brand Name: | IBOARD |
Certification: | CE,FCCROHS,etc. |
Model Number: | TE-QS-75 |
Minimum Order Quantity: | 1PC |
Price: | USD500-800/PC |
Packaging Details: | 1pc/carton, optional to be with wooden crate |
Delivery Time: | 15-18 working days |
Payment Terms: | L/C, T/T, Western Union |
Supply Ability: | 5000PCS per month |
Android Version: | 11 Or 13 Optional | RAM And Storage: | 4+32G/8+64G/8+128G Optional |
---|---|---|---|
Touch Technology: | Infrared Touch | Touch Points: | 10/20/40/50 Points |
NFC Function: | Optional | Light Sensor: | Built In To Adjust The Bightness According To Environments |
Size Workable: | 55/65/75/86 Inch | Applications: | Classroom/university/meeting Room/training/business Center,etc. |
Highlight: | Interactive Touch Screen Monitor 86 inch,School interactive whiteboard monitor,50 Points interactive whiteboard monitor |

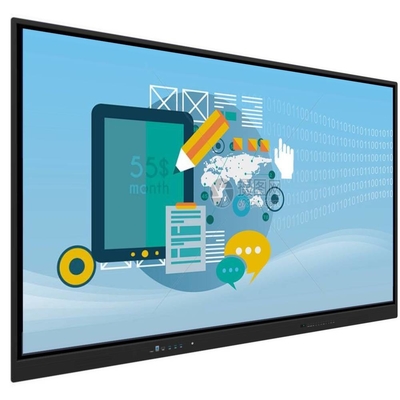

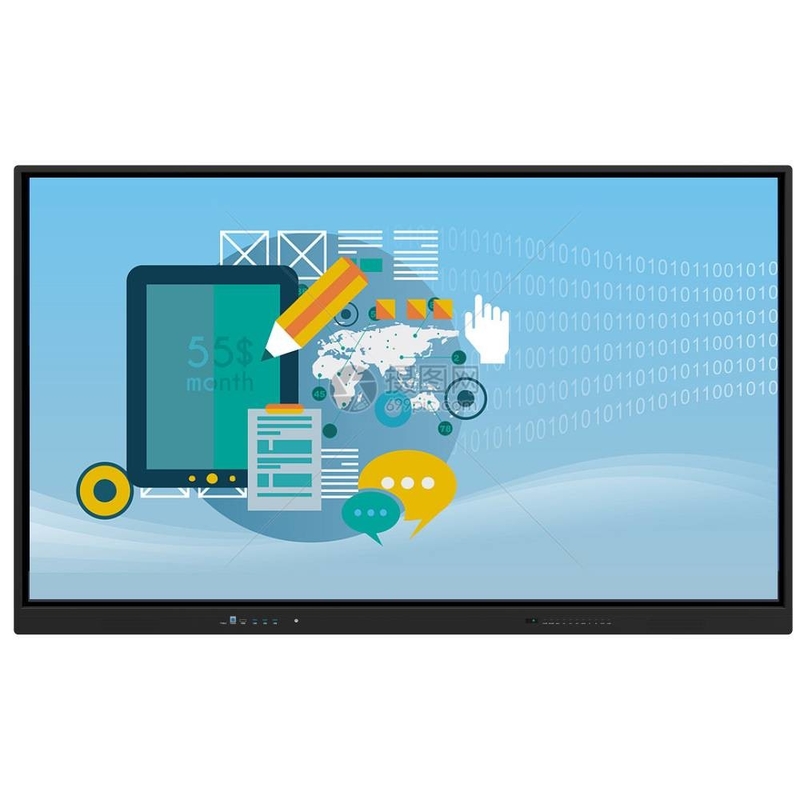

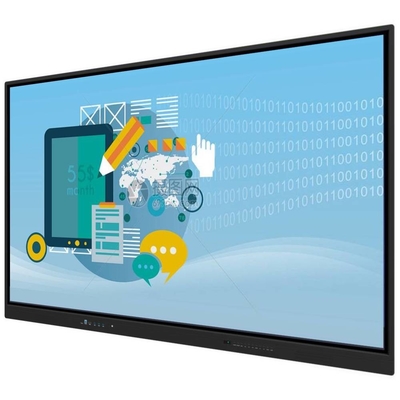

Interactive Touch Screen Monitor 86 inch Android 13 4+32G 50 Touch Points Whiteboard Backlight Display For School Office
Advantages features for iboard touch flat panel display:
1. Supporting dual operation system, optional for Android/Windows/Linux/Mac.
2. Android version 11 or 13 optional, with RAM and storage optional: 4+32G/8+64G/8+128G
3. Available size: 55/65/75/86/98/105/110 INCH
4. Supporting wireless share upto to 9 screens at one time for pad/phone/laptop/computer/IFPD,etc.at one time
5. with IBOARD whiteboard software for annotation/record/share/meeting room,etc.
6.Optional to be built-in camera and microphone
7. with light sensor to adjust the display brightness according to the environments
8. with anti-blue function optional
9. with NFC function optional
10.Certificates: CE/ROHS/FCC,etc.
Specification sheet:
Item | Interactive Touch Screen Monitor 86 inch Android 13 4+32G 50 Touch Points Whiteboard Backlight Display For School Office |
Model | TE-QS-65 |
Display size (mm) | 1430.5*805.5 |
Product size(mm) | 1485*904.8*85 |
Resolution | 3840*2160 |
Brightness | 350cd/m2 |
Contrast ratio | 4000:1 |
Aspect ratio | 16:9 |
Screen mode | 16:9/4:3/dot to dot/full screen |
Response time | 8ms |
Android version | 11 or 13,4 x ARM Cortex-A55@1.9GHz,Quad-core MaliG52 with RAM and storage optional 4+32G/8+64G/8+128G |
Bluetooth | 5.0 |
Wifi | Dual 5.0GHz WiFi Moudle , one for WIFI, one for hotspot. |
Input ports | Rear: 2*HDMI2.0, 1*VGA&AUDIO IN, 1*YPBPR, 2*USB 3.0, 1*USB2.0, 1*TOUCH-USB, 1*TF card, 1*RS232, 1*RJ45 IN, 1*AV IN, 1*MIC IN, 1*DP, 1*Type C(only for USB), 1*OPS SLOT Front: 1*HDMI2.0, 1*TOUCH USB, 3*USB3.0, TYPE-C (Support Touch, Data, Video and Audio transfer, charging(standard 15W, optional 65W) |
Output ports | 1*HDMI-out, 1*COAXIAL, 1*Earphone, 1*RJ45 OUT, 1*AV OUT |
Front keys | 8KEY(POWER,SOURCE,MENU,VOL-,VOL+,HOME,ENTER, ES) |
Voltage | AC(100~240)V-50/60HZ |
Accessories | Touch pen*2,Touch USB cable*1.HDMI cable*1, Power supply cable*1,Remote controller*1,wall mounted bracket*1set |
Packing size | 1646*225*1050mm |
N.W.(KGS) | 38 |
G.W.(KGS) | 52 |
With IBOARD powerful annotation software for share/record/meeting room,etc. with teaching resources and tools to make the lessons teaching
more wonderful and interesting!
Applications: school/classroom/university/presentation/training/video meeting room,etc.
Packing: 1pc/carton box, optional to be with wooden crate, convenient for truck/air/sea shipping
