| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard/ OEM |
| Certification: | CE Rohs |
| Model Number: | i3 i5 i7-9/10/11th |
| Minimum Order Quantity: | 5 piece |
| Price: | USD200-USD600 per pieces |
| Packaging Details: | Export Cartons |
| Delivery Time: | 15 working days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 10000 pieces per month |
| Interface Type: | USB 2.0 /3.0, USB-C, HDMI, DP, Etc | Com: | 1*TTL(80Pin) |
|---|---|---|---|
| Size: | 195*180*42/30mm | Product Name: | OPS, Open Pluggable Specification, OPS-C |
| Operating System: | Win/ Linux | CPU: | Support Intel Core 10th Generation Platform Processors, Optional I3 15 I7 |
| RAM: | DDR4 2400MHz 4GB Memory MAX 32GB | Graphic: | Intel® UHD Graphics 630, Support Double Display |
| Chipset: | Intel H410 (Intel ® Core ™ 10th Gen) | Electricity Boot: | BIOS Support |
| High Light: | Interactive Touch Screen Monitor Smart Board,CE Interactive Touch Screen Monitor,OPS Interactive Touch Screen Monitor |
||

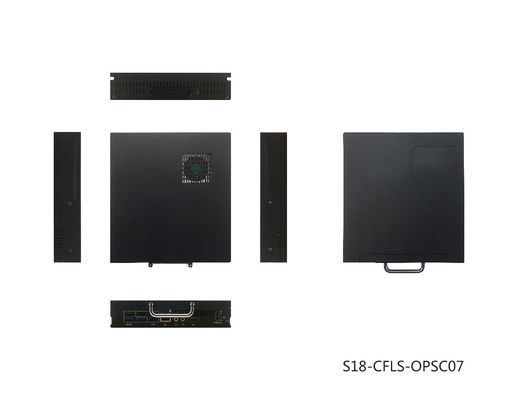

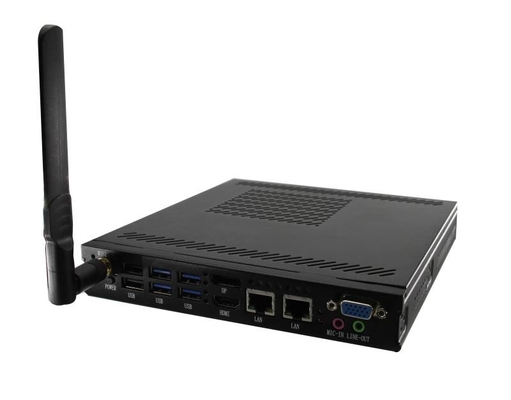

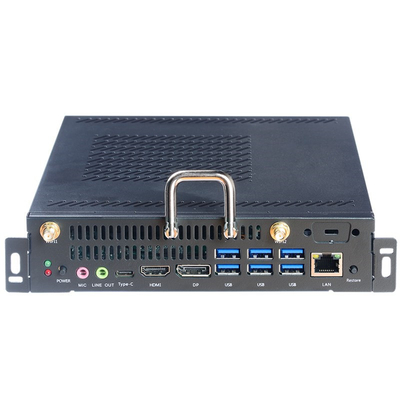

OPS computer for Interactive Touch Screen Monitors
Description of OPS computer
The integrated OPS computer is powered by Intel processors, brings you all the power of a desktop computer built right into your display.
It can help annotating on images, utilizing the whiteboard application, and more have never been easier without needing to download software to any of your own devices. Keep those programs on your OPS computer and have them available for anyone to use.

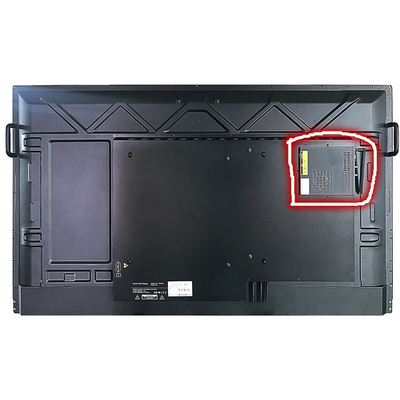

All our 65", 75", 86" and 98" touch Screen Monitors have an OPS Slot, meaning these OPS computers slide right inside the screen, without the need for Power Adapters, USB or HDMI cables to connect, making them the IT Departments best friend.
Specification for mini PC
| Description | Front port | |||
| CUP | Support Intel core 10th generation platform processors, Optional I3 15 I7 | Button | 1*Power Button | |
| RAM | DDR4 2400MHz 4GB Memory MAX 32GB | Reset | 1*Reset Button | |
| Chipset | Intel H410 (Intel ® Core ™ 10th Gen) | Indicator | 1*Power indicator | |
| Graphic | Intel® UHD Graphics 630, support double display | Display | 1*DP(2.0, 4K 60Hz), 1*HDMI(1.4), |
|
| Network | Realtek RTL8111H network card supports 10/100/1000M adaptive | USB port | 6*USB3.0 | |
| Built-in 1*M.2 expansion slot, support WiFi(5.0GHz& 2.4GHz) +Bluetooth(4.2) |
LAN | 1*LAN,1000M LAN | ||
| Audio | Realtek ALC883 hd audio 5.1 channel | Audio port | 1*Audio-in, 1*Audio-out | |
| Storage | Built-in 1*NGFF-M.2 PCIE interface supports NVME and SATA double protocol; 1*SATA adaptive hard disk interface |
USB-Type-C | 1*USB-Type-C port (2.0) | |
| USB | 6*USB3.0 | |||
| COM | 1*TTL(80Pin) | |||
| Slot of Processor | 1, SO-DIMM | |||
| Watch Dog | Yes | Back port | ||
| USB-Type-C | Yes | Display | 1*HDMI (2.0, 4K 60Hz) | |
| BT/ WLAN card | Yes | Power port | N/A | |
| OPS | Yes | DC | 1*DC port(the outer diameter is 5.5mm and the inner diameter is 2.5mm) |
|
| Electricity boot | BIOS Support | |||
| Boot Configuration | 4GB and 120GB SSD | |||
| Disk | MAX SSD, 1T | |||
| Power | ||||
| Power adapter | 19V/4.7A | |||
| Dimensions | 195*180*42mm(W*D*H) | |||
| Temperature & Humidity | Weight | 1.2 KG(N.W.)/ 1.4 KG(G.W.) | ||
| Working Temp. | 0°C ~ 45°C | Way of packing | Carton Packing | |
| Storage Temp. | -40°C ~80°C | Security Lock | N/A | |
| Working Humidity |
10% - 95% @40°C non-condensing | Heat-dissipating method | Mini Fan design | |
Remark: For more details of the specification , please contact us to know more detials.
