| Place of Origin: | CHINA |
|---|---|
| Brand Name: | iBoard |
| Certification: | CE/FCC/ROHS |
| Model Number: | TE-QS Series |
| Minimum Order Quantity: | 1 Piece |
| Price: | USD700 - USD1800/unit |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 15-25 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 units/month |

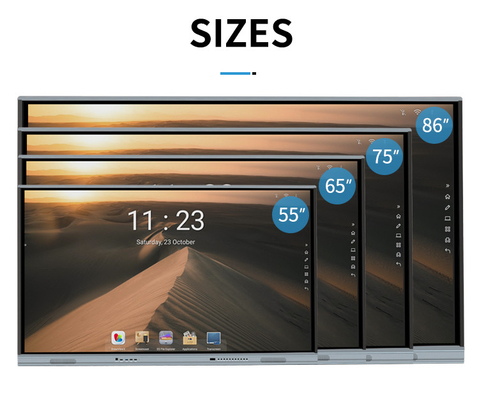

| Brand Name: | IBoard | Panel Size: | 55/65/75/86 Inch |
|---|---|---|---|
| Color: | Black And Silver Gray+black | Contrast: | 1200:1 |
| Brightness: | 350cd/m2 | Touch Technology: | Infrared Touch |
| Touch Ways: | Finger Or Any Opaque Objects | Support OPS: | One OPS Slot (Optional) |
| Highlight: | 3840x2160 Interactive Touch Screen Whiteboard,Interactive Touch Screen Whiteboard ROHS,50000hrs Infrared Interactive Whiteboard |
||
| Model | TE-QS-55 | TTE-QS-65 | TE-QS-75 | TE-QS-86 |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | 3840*2160 |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ |
| Contrast | 1200:1 | 1200:1 | 1200:1 | 1200:1 |
| Screen Size(mm) | 1210.6*682.4mm | 1428,5x803,5mm | 1650x928mm | 1895,04x1065,96mm |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors |
| Panel Response Time | 8ms | 8ms | 8ms | 8ms |
| Suport Resolution | 4K Ultra HD 3840x2160 | |||
|
Android Specification |
Android 9.0/Android 11.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| 2.4 and 5.0GHz WiFi; | ||||
| Ram: 2G/3G/4G/8G | ||||
| Storage: 16G/32G/64G | ||||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||||
| The file manager is supported | ||||
| Screen sharing aplication is supported | ||||
| Local and online supportfor music player. | ||||
| Input Ports |
HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1; USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display Port x1 |
|||
| Output Ports | AV-Out x1; Headphones out; SPDIF x1; HDMI output | |||
| Front Button (65” 75” 86”) | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Front Button (55”) | one power button in the central bottom | |||
| Speakers | 2x 15w | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | Standby Power<1W |
| Rated Power<150W | Rated Power<230W | Rated Power<350W | Rated Power<415W | |
|
Touch Parameter |
Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 5ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB 2.0, USB 3.0 | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||
| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB cable, Power Cable*1, whiteboard Software *1, Remoter*1, Wall mounting bracket VESA: 400x400 for55", 500x400 for 65”, 600x400 for 75", 750x400 for 86" | |||
| Sizes(mm) | 1263*780*86.4 | 1486*905*93.2 | 1707.4*1030.1*93.3 | 1953.6*1168.8*93.4 |
| Weights (kgs) | 35/ 46 | 41 / 54 | 54 / 71 | 70/ 88 |
|
Carton Sizes (mm) (LxHxW ) |
1385x 920x 194 | 1646x1074x240 |
1873x1204x240
|
2120x1353x240
|
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Exhibition:
FAQ:
1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
