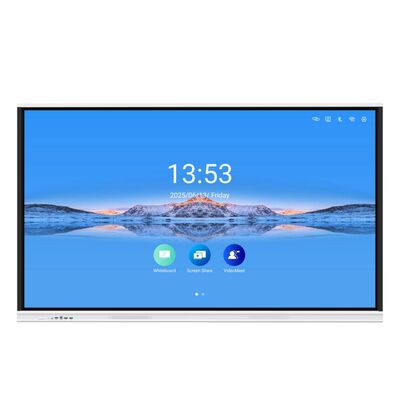

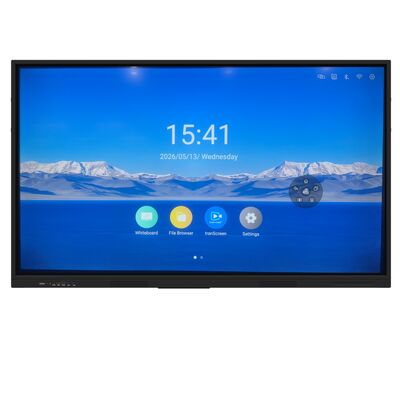

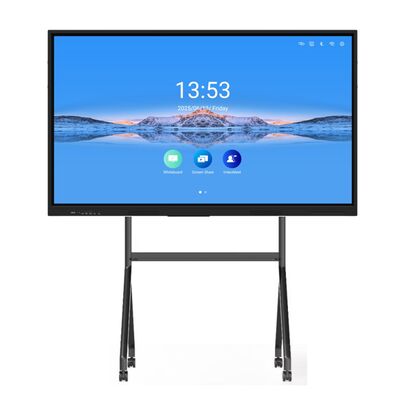

TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: XP3-75
Minimum Order Quantity: 1 Piece
Price: USD700 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 15-25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Or OEM Product Name: 75'' Infrared Interactive Flat Panel
Size: 75 Inch Color: Black And Silver
Material: Aluminium Frame Touch Ways: Finger Or Any Opaque Objects
Touch Points: 10 Points Or More Support OPS: Yes, One OPS Slot (Optional)
Highlight:

75in Interactive Touch Screen Monitor

,

Interactive Touch Screen Monitor 350cd/m2

,

FCC Interactive Tv Touch Screen

Interactive Touch Screen Monitor 75 inch IR Touch Wall Mounted 4K Display All-in-One Android8 PC

Specifications

DISPLAY
Screen Type TFT LED Display Ratio 16:9
Resolution 3840(H) x 2160(V) Display Area 1650.2*928.3 mm(74.52 inch)
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 1200:1 Life Time 50,000 Hrs
Response Time 6.5 ms
ANDROID SYSTEM
Android Version Android 8.0 CPU

2*ARM Cortex-A73

2*ARM Cortex-A53
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1


Built-in Camera Support 2K or 4K
Built-in Speakers 2*15W
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
INTERNET
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.2

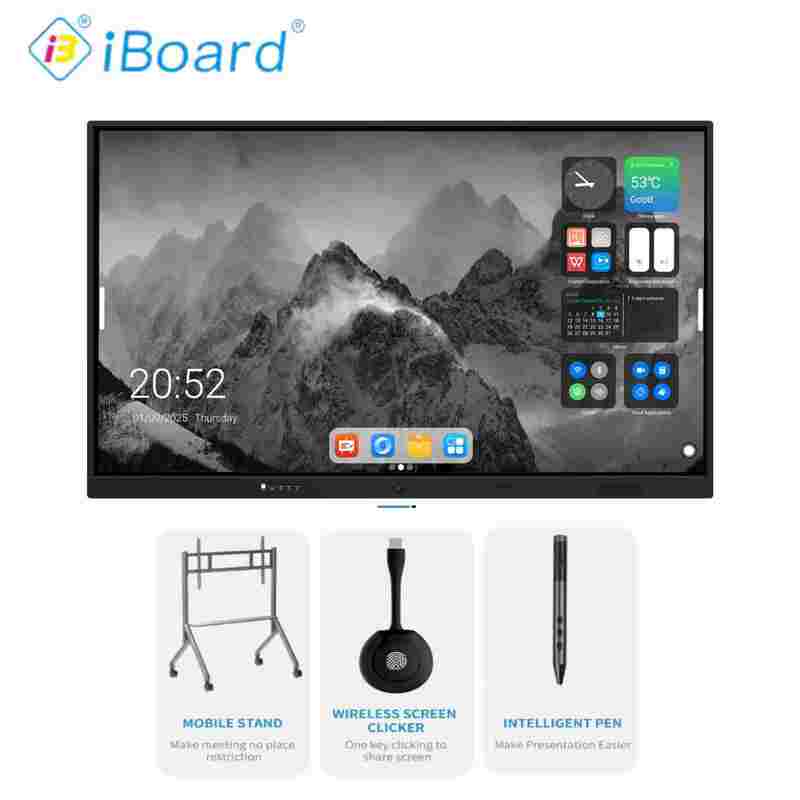

ACCESSORIES
Touch pen x 2
Touch USB (A-B 1.5M) x 1
HDMI cable(2M) x 1
Power cable(1.8M) x 1
Remote controller x 1

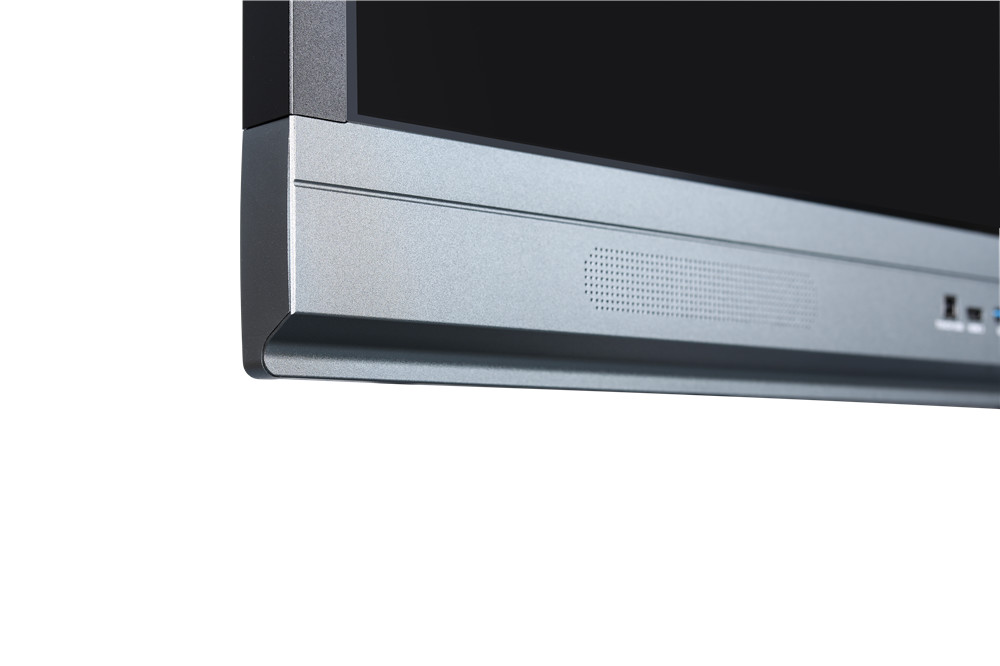

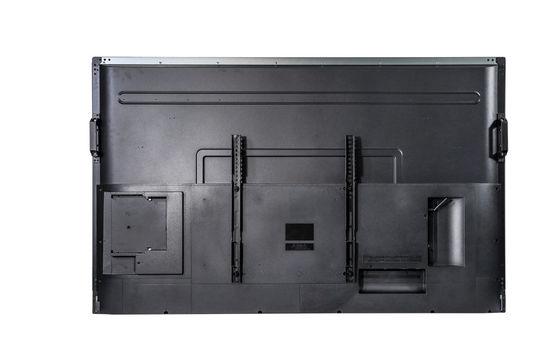

TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 0TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 1TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 2TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 3

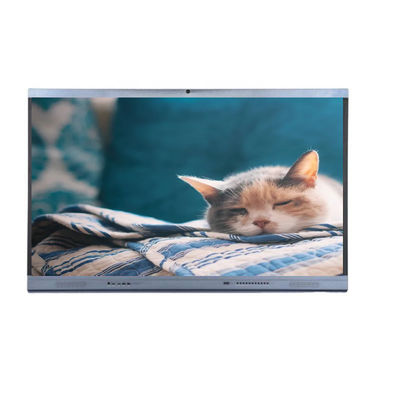

TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 4TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 5TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 6

Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.

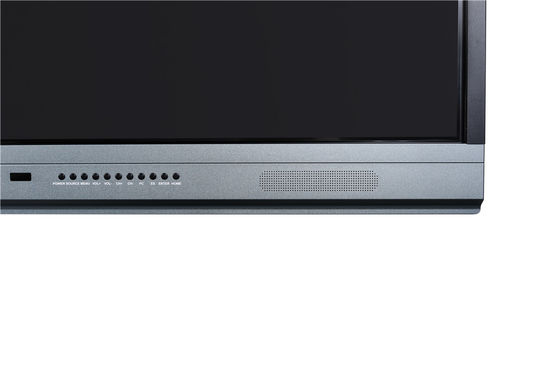

TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 7

Exhibition:

TFT LED 75inches Interactive Touch Screen Monitor With AIO PC IR Tec 8





























































































FAQ:

1. Q: Are you a factory?
A: Yes, we are a factory. We're located in Shenzhen China.
2. Q: How can I trust your product quality?
A: Quality is what we put first over the last 15 years. From material purchasing to product delivery, we have own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS & ISO & FCC etc.
3. Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. Solution will be offered instantly.
4. Q: Do you have MOQ?
A: Generally, our MOQ is 1 pcs. But the larger the order is, the more discounts will be given.
5. Q: Could you offer the OEM&ODM service?
A: Yes, we can. We've been providing OEM&ODM service for many world-class companies for over 15 years.
6. Q: What's the leading time?
A: The leading time for sample would be 3-7 days. As for large order, it takes about 25 days.
