| Place of Origin: | Guang Dong, China |
|---|---|
| Brand Name: | Support OEM or iBoard |
| Certification: | CE, RoHS, CB |
| Model Number: | Support OEM |
| Minimum Order Quantity: | 10 |
| Price: | USD170 to USD800 |
| Packaging Details: | Carton packing |
| Delivery Time: | 10-15 work days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 20000pcs per month |
| Frame Material: | Aluminum | Aspect Ratio: | 4:3 16:9 16:10 |
|---|---|---|---|
| Color: | Black, Grey | Board Surface: | Nano, Ceramic(optional) |
| Hotkeys: | Two Sides Hotkeys | Name: | Infrared Interactive Whiteboard |
| High Light: | 146 Inch IR Smart Whiteboard,DC5.2V IR Smart Whiteboard,10 Touch Interactive Projection Whiteboard |
||
80 to 146 inch interactive board 4:3 or 16:9 or 16:10
TECHNICAL SPECIFICATIONS REF
| Hardware Special Features | Gesture recognition |
| Technology | Infrared |
| Touch Point | 10 touch |
| Cursor Speed | 180 dot/s |
| Display ratio | 16:9 |
| Resolution | 32768 x 32768 |
| Positioning Accuracy | <2mm |
| Connecting Port | USB 2.0 USB 1.1 USB 3.0 |
| View Angle | Horizontal 170°, vertical 160° |
| Operating System | Windows 2000, Windows XP, Windows Vista, Windows 7, Windows 8.1,Windows 10, Linux, Mac, Android |
| Power Supply | USB power supply DC 4.7V- 5.2V <1W ( <=300mA at 5V) |
| Working Condition | Indoor or Outdoor |
| Storage | Temperature: -30°C~60°C Humidity: 0%~95% |
| Operation | Temperature: -10°C~45°C Humidity: 10%~90% |
| Installation | Wall mounted, cabinets, mobile stand (optional) |
PHYSICAL SPECIFICATIONS
| Model | IB-90Q |
| Overall Size (mm) | 2009x 1093 |
| Overall Diagonal (inch) | 90 |
| Aspect Ratio | 16:9 |
| Board Weight (kg) | 17 |
| Gross Weight (kg) | 22 |
| Product Dimension (mm) | 2009x 1093x 29.3mm |
| Packed Size (mm) | 2100 x 1180 x 70 mm |

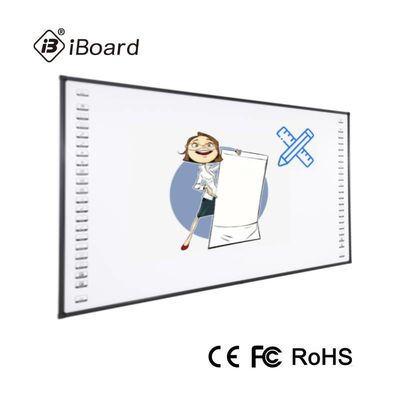

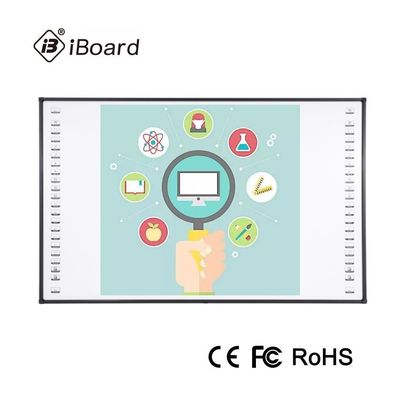

Product Photos
