| Place of Origin: | Shenzhen, CHINA |
|---|---|
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-YL6-86 |
| Minimum Order Quantity: | 10 |
| Price: | USD1550-1800/PC |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
| Material: | Aluminum Frame | Color: | Black |
|---|---|---|---|
| Camera: | 2K/4K Optional | Annotation Software: | Drawview |
| Gesture Recognization: | Optional | Side Bar: | NO |
| Installation Way: | Wall Mounted Or Hanged On Stand | Andriod Version: | 8.0 Or 9.0 |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | 350cd/m2 LCD Smart Board,86in LCD Smart Board,HDMI Conference LCD Board |
||

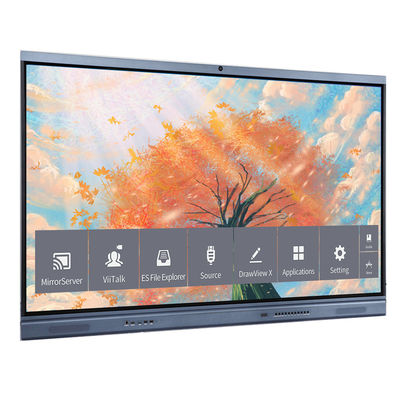

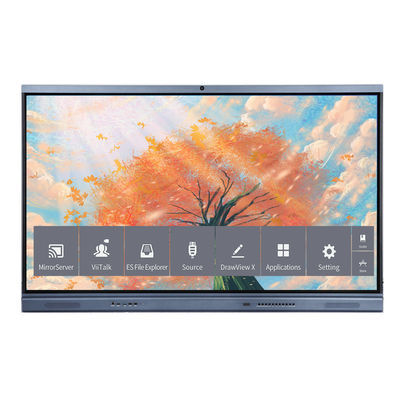

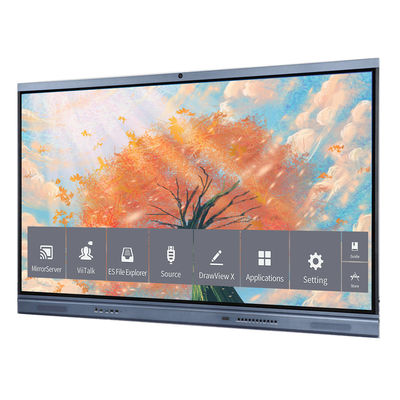

LCD Smart Board Digital Electronic Black 65 75 86 Inch Touch Panel Display Camera HDMI USB Port For Conference Meeting
| Model | TE-YL6-65 |
| Display type | DLED |
| Resolution | 3840*2160 |
| Brightness | 350cd/m2 |
| Contrast ratio | 1200:1 |
| Display area | 1428.5*803.5 mm(64.53 inch) |
| Panel ratio | 16:9 |
| View angle | 178° |
| Color | 10bit,10.7billion color |
| Video format | PAL,NTSC,SECAM |
| Sound format | D/K, B/G, I,M |
| CPU | Quad core A55 |
| Main frequency | default 1.2G |
| Andriod version | 9.0 |
| Flash | 16G/32G EMMC |
| RAM | 2G/3 DDR4 |
| VGA input resolution | 640*480/800*600/1024*768/1280*768/ 1280*800/1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080@60Hz |
| First touch response time | <19ms |
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB |
| Output port | Back IO OUTPUT:1*COXIAL,1*EARPHONE |
| Front keys | 11KEY(POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME) |
| Bulit in Camera | Optional |
| Short cut | NO |
| Rated voltage | AC(100-240)V～50/60HZ |
| Rated current | 2.5A(including OPS) |
| Working temperature | 0°C～45°C |
| Touch points | Single/Two/Four/Six/Ten points |
| Touching mode | Fingers or pen |
| Location technology | Ifrared |
| Location accuracy | <2mm |
| Location resolution | 4096*4096/16384*16384/32768*32768 |
| Continuous response time | <8ms |
| Cursor speed | >180 dot/second |
| Communication port of touch system | USB |
| Operating system | WINDOWS/LINUX/MAC /Android |
| Effective object size | ≥Φ3mm |
| Touch times | More than 60,000,000 times at one position |
| Accessory | Touch pens x 2 |
| HDMI cable(2M) x 1 | |
| Touch USB cable 1.5M x 1 | |
| Power supply cord(1.8M) x 1 | |
| Installation DVD x 1 | |
| Remote controller x 1 | |
| Warranty card x 1 |
Certificates: Our products quality passed CE/ROHS/CCC/WEEE,etc.
Package: 1pc/carton,optional to be with extra wooden pallet/crate/box
Applications: school/office/video meeting/lab/training,etc.
