| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Iboard |
| Certification: | CE,FCC,ROHS,WEEE,ETC. |
| Model Number: | TE-QS1-65 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD900-930 |
| Packaging Details: | 1pc/carton,optional to be with wooden pallet or crate |
| Delivery Time: | 25-30 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs per month |
| Material: | Aluminum Frame | Display Type: | DLED |
|---|---|---|---|
| Display Resolution: | 3840*2160 | Flash: | 32G EMMC |
| RAM: | 3G DDR4 | Andriod Version: | 9.0 |
| Video Format: | PAL、NTSC、SECAM | Audio Format: | D/K、 B/G、 I、M |
| Touch Points: | 1/2/4/6/10/20 Points | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| High Light: | Dual OS Iboard Interactive Whiteboard,IR Touch Iboard Interactive Whiteboard,Annotation Software Education Interactive Whiteboard |
||
Iboard Interactive Whiteboard 4K Dual OS IR Touch Display Anti Blue Mirror Sharing Annotation Software For Kids
Hotlight features:
1. with latest infrared touch technology,supporting multi finger/pen touch to 1/2/4/6/10 points
2. andriod 9.0 with anti.blue function,protect user's eyes
3. ultra slim bezel with 4mm tempered glass, optional with anti-glare and anti-finger
4. with front ports Touch USB port, HDMI port, and USB ports
5. OEM available for product/logo/package/software
| Model | TE-QS1-65 | TE-QS1-75 | TE-QS1-86 |
| Display size(mm) | 1430.5*805.5mm | 1651.7*929.9mm | 1897*1068mm |
| Product size (mm) | 1485.2*905*93.2mm | 1707.4*1030.1*93.3mm | 1953.6*1168.8*93.4mm |
| Touch technology | IR touch | IR touch | IR touch |
| Andriod version | 9.0 | 9.0 | 9.0 |
| Display resolution | 3840*2160 | ||
| Flash |
32G EMMC |
||
| RAM |
3G DDR4 |
||
| Input ports |
Front:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB Back:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,1*USB 3.0,1*USB2.0,1*TOUCH-USB,1*RS232,1*TF(MAX 32G),1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*BT(4.0),1*OPS(up to3840*2160/60Hz) |
||
| Output ports |
1*OPTICAL,1*EARPHONE |
||
| Front keys |
POWER,SOURCE,MENU,VOL+,VOL-,REC,A.BLUE,PC,ES,RATIO,HOME |
||
| TYPE-C port | Optional | ||
| Side bar | Optional | ||
| Rated voltage |
AC(100-240)V～50/60HZ |
||
| Rated current | 2.5A (including OPS) | ||
| Operation OS | Andriod/Windows/Mac/Linux,etc. dual OS working | ||

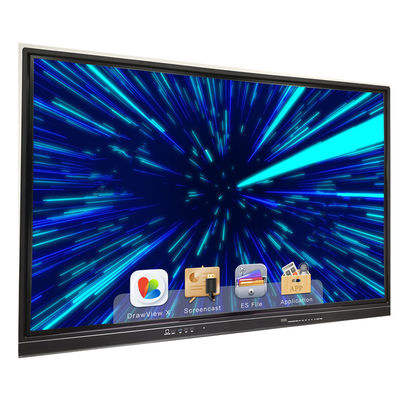

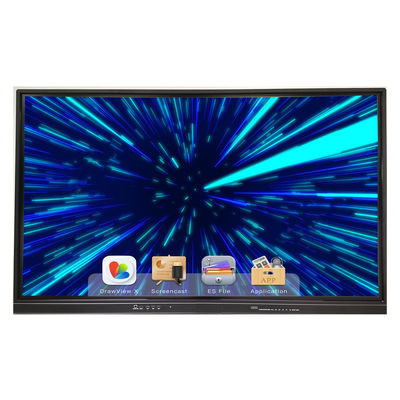

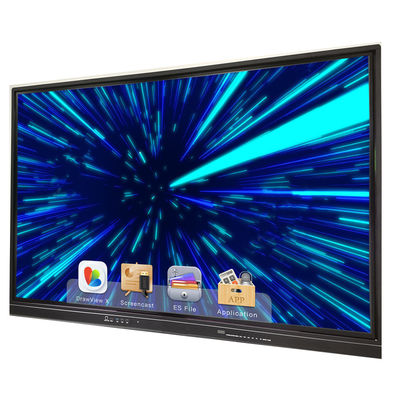

Real photos show:
QS1 65 Dimension:
QS1 75 Dimension:
QS1 86 Dimension:
Package:
| Model No. | TE-QS1-65 | TE-QS1-75 | TE-QS1-86 |
| Package size(mm) | 1646*240*1050mm | 1873*240*1204mm | 2120*240*1353mm |
| N.W.: | 38kgs | 53kgs | 73kgs |
| G.W. | 52kgs | 72kgs | 92kgs |
| Packing accesories | Touch USB cable*1,HDMI cable*1,Power supply cable*1,Remote controller*1,Touch pen*2,Warranty card*1 | ||
Standard package: 1pc/carton, optional to be with extra wooden pallet or crate
Applications:
Certificates:
Our product quality passed CE, FCC,ROHS, WEEE,ETC.
Trade shows:
We Iboard attend times for ISE,INFOCOMM,BETT,Canton Fairs for years.
