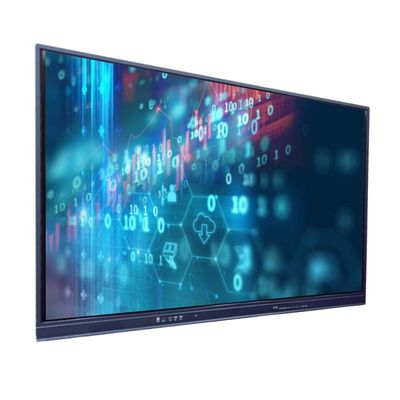

Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution

Basic Information
Place of Origin: China
Brand Name: iBoard
Certification: CE FCC
Model Number: TE-QS
Minimum Order Quantity: 1 piece
Price: USD700-USD1800 per pieces
Packaging Details: export cartons for Touch Interactive Screen
Delivery Time: 25 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10000 pieces per month
Type: Infrared,Capacitive,interactive Flat Panel,LCD Touch Screen Interface Type: USB,D-Sub,DVI,Serial,VGA,HDMI, DP, Etc
Resolution: 3840*2160 Screen Size: 55", 65",75inch,86 Inch ,98 Inch
Product Name: Interactive Touch Screen TV, Interactive Led TV Touch Points: 10 Points,can Be Customized,1~20 Points, 20 Points, 32 Points, 40 Points
Color: Black,black/white/gold/customizable,Silvery/Black Application: Teaching,meeting,HOME,training,education
Operating System: WIN2000/XP/Vista/7/8 And More,android8.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional Cpu: A73*2+A53*2
GPU: Mali-G51 Brightness: 350cd/m2
Interface: USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI Warranty: 1 Year For Panel, And 3 Years For Components
Material: Aluminum Alloy Frame Viewing Angle: 178°(H) / 178°(V)
Screen Type: LED,LCD Function: Projector,tablet,writingboard,PC,TV
High Light:

98'' Interactive Touch Screen Monitor

,

3840x2160 Interactive Touch Screen Monitor

,

98'' interactive touch monitor

Large Interactive Screen Touch LED Display 55" 65" 75" 86" 98" 4K UHD Resolution



​​Ⅰ. Description Of Interactive Screen



A IR interactive Screen is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen,  interactive whiteboard, smart whiteboard, touch screen display,  touch monitor,  LED touch monitor,  touch interactive display, interactive flat panel display,  touchscreens , etc.



Our company has a strong R&D team and our interactive touch Screen is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.



​​II. Our Strength:



14 years' experience on making OEM/ODM interactive touch screen and digital interactive whiteboard

products sold to more than 80 countires in the world

Own developed Infrared technology

ODM/OEM Support

SKD support

Customized size

Easy for after-sales service

Shortest delivery time

Top quality in this field

Best Value



​​II. Product Advantage Feactures



QS seires is one of our newest design interactive flat panel display, with ultra slim frame,  good design and are popular in the market.



Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 0Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 1



​​III. Specification



Model TE-QS-55 TTE-QS-65 TE-QS-75 TE-QS-86
Dispaly Backlight D-LED Backlight
Resolution 3840*2160 3840*2160 3840*2160 3840*2160
Brightness 350 cd/㎡ 350 cd/㎡ 350 cd/㎡ 350 cd/㎡
Contrast 1200:1 1200:1 1200:1 1200:1
Screen Size(mm) 1210.6*682.4mm 1428,5x803,5mm 1650x928mm 1895,04x1065,96mm
Aspect Ratio 16:9
View Angle 178°
Screen Mode 16:9/4:3/dot to dot/full screen
Color Depth 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors 10bit, 1.07Billon colors
Panel Response Time 8ms 8ms 8ms 8ms
Suport Resolution 4K Ultra HD 3840x2160













Android Specification

Android 8.0

2 x ARM Cortex-A73@1.5GHz

2 x ARM Cortex-A53@1.5GHz

ARM Mali-G51 450MHz
2.4 and 5.0GHz WiFi;
Ram: 4G
Storage: 32G
Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz);
The file manager is supported
Screen sharing aplication is supported
Local and online supportfor music player.





Input Ports

Rear: HDMI2.0*2, DP*1, VGA-IN*1, VGA Audio-input*1, YPBPR*1, AV-in*1, RS232 Series*1,USB3.0*1, USB2.0*1 , RJ45-in*1, WIFI(5G)*1 (with two antenna), SD Card*1, OPS Slot(Max support 3840*2160/60Hz)*1, Touch USB B Type*1
Front: USB*3(support both PC and Android) , HDMI*1(Max support 1920*1080/60Hz), Touch USB B Type*1
Output Ports HDMI-out*1; SPDIF*1, Earphone*1, AV-Out*1

Remark: For more details of the specification , please contact us to know more detials.



Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 2Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 3Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 4

Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 5



Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 6Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 7







Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 8Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 9Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 10Large 98'' Interactive Touch Screen Monitor UHD 3840x2160 Resolution 11
