4096*4096 Optical Portable Interactive Whiteboard Dual Pen touch
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard or OEM |
| Certification: | CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001 |
| Model Number: | IB-3D4 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | 80-150USD |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T, L/C |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Product Name: | Optical Interactive Whiteboard, Portable Interactive Whiteboard | Technology: | Optical |
|---|---|---|---|
| Resolution: | 4096*4096 | Touch Points: | 2-10points |
| Latency: | <30ms | Min Active Size: | 40inch |
| Max Active Size: | 150 Inch | Warranty: | 1-3years |
| Aspect Radio: | 16:10, 16:9... | Interface: | USB, VGA, RS232, HDMI |
| Screen Size: | 65",75",86", 98" | Multi-Touch: | Up To 40 Points |
| Hotkeys: | Two Sides Hotkeys | Shipping Way: | Sea Shipping Air Freight Truck Freight |
| Touch Points: | 20 Points | Warranty: | 1 Year |
| Power Supply: | AC 100-240V, 50/60Hz | Operation System: | Andriod/Windows/Linux/Mac.etc. |
| Accuracy: | 2mm | Mobile Stand: | Optional |
| Colors: | Black Or OEM | ||
| Highlight: | Optical Portable Interactive Whiteboard,4096*4096 Portable Interactive Whiteboard,4096*4096 portable digital whiteboard |
||
Product Description

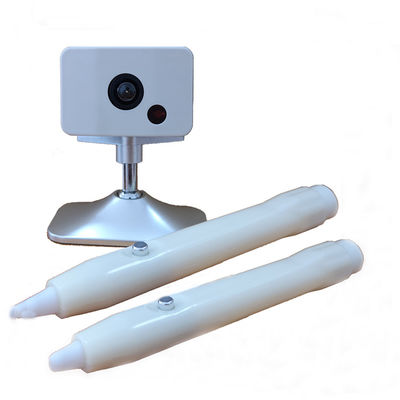

Dual Pen touch Portable Interactive Whiteboard for business and education
Product introduction
Shenzhen iBoard Technology Co.,Ltd is specialized in interactive products since 2006. We are working on portable interactive whiteboard since 2010. After three years development, we are the pioneer and leader of portable finger touch interactive whiteboard in China. Now our company has successfully developed and produced the 4th generation Portable Interactive Whiteboard —3D TOUCH , which is more stable, easy to install and use, response quickly and latency less. 3D TOUCH use optical technology, it can convert any flat surface into interactive whiteboard. Advantage over traditional whiteboard: auto calibration; write on any flat surface, (such as wall, blackboard, LCD panel); active size from 40-150inch; low cost.
Features
- Multi-Users Writing, support 10 users to write simultaneously;
- Easy installation
- Screen size range to 150”
- Intense light-resistant
- Available putting on desk or projectors
- Available for ceiling-mount installation
- Installed on the general tripod
- USB cable can be extended to 12M
- Enable to integrate with other interactive functions
- Convenient storage and maintenance
- Plug & play
- USB interface
- HID form of communication
- USB power supply no need extra powering
Reference specification
| Portable Pen touch interactive whiteboard | |
| Calibration | Automatic(5s) / Manual (25/36 points) |
| Technology | Optical Technology |
| Resolution | 4096*4096 |
| Multi-writing | Max 30 people can write at the same time |
| Latency | <30ms |
| Filter | Software auto-control, enhance stability. |
| Minimum Active Size | 40-inch |
| Max Active Size | 150-inch |
| Positional Accuracy | ±1 Pixel |
| Aspect Ratio | 4:3；16:9；16:10 |
| Projector ratio |
Ultra short throw:0.15, installation distance:0.35m; Ultra short throw:0.21, installation distance:0.45m; Ultra short throw:0.28, installation distance:0.45m; Short throw:0.34, installation distance:0.54m； Long throw:0.86, installation distance:1.4m; Long throw:1.34, installation distance: 2.2m. (Depends on 80’’ projection screen aspect ratio:4:3) |
| Power Consumption | 100mw |
| Signal refresh rate | 120fps. |
| Connect | The sensor and computer are connected by USB Cable |
| Weight | 0.25kg |
| OS Requirement | Windows XP, Vista, Windows 7,windows 8,Windows10,Android |
| Software | Calibration software(driver) and GLboard(education software) |
| Certification | CE, FCC |
| Warranty | 3-year |

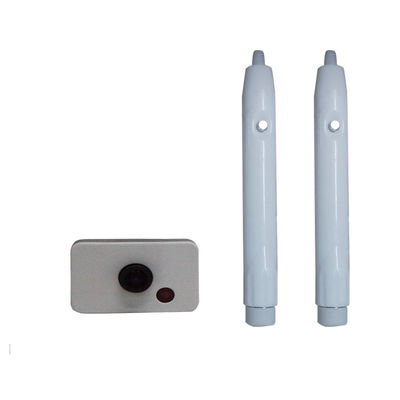

| Package | 1. Sensor 2..Mounts 3.USB cable (12m*1) 4.Infrared pen 5.Manual |
