4K 60Hz Iboard Interactive Whiteboard Front Port With 3 Multi Use USB

Brand Name: iBoard or OEM
Model Number: TE-XP
Place of Origin: Shenzhen, CHINA
Certification: CCC, CE, FCC, RoHS, Reach, OHSAS, ISO9001, ISO14001
Minimum Order Quantity: 10
Price: 800-2000USD
Supply Ability: 10000 units per month

Product Details


Product Name: LED Interactive Whiteboard, Touch Monitro, Multi Touch Screen Size: 65'', 75'', 86''
Brightness: 350cd/m2 Resolution: 3840*2160@60Hz
Android OS: 8.0/9.0 Touch Technology: Infrared
Touch Points: 10-32points Accuracy: 2mm
Response Object: Finger, Pen, Any Opaque Objects Front USB: Multi Use Recognize Current Source Directly
Aspect Radio: 16:10, 16:9... Interface: USB, VGA, RS232, HDMI
Screen Size: 65",75",86", 98" Multi-Touch: Up To 40 Points
Hotkeys: Two Sides Hotkeys Shipping Way: Sea Shipping Air Freight Truck Freight
Touch Points: 20 Points Warranty: 1 Year
Power Supply: AC 100-240V, 50/60Hz Operation System: Andriod/Windows/Linux/Mac.etc.

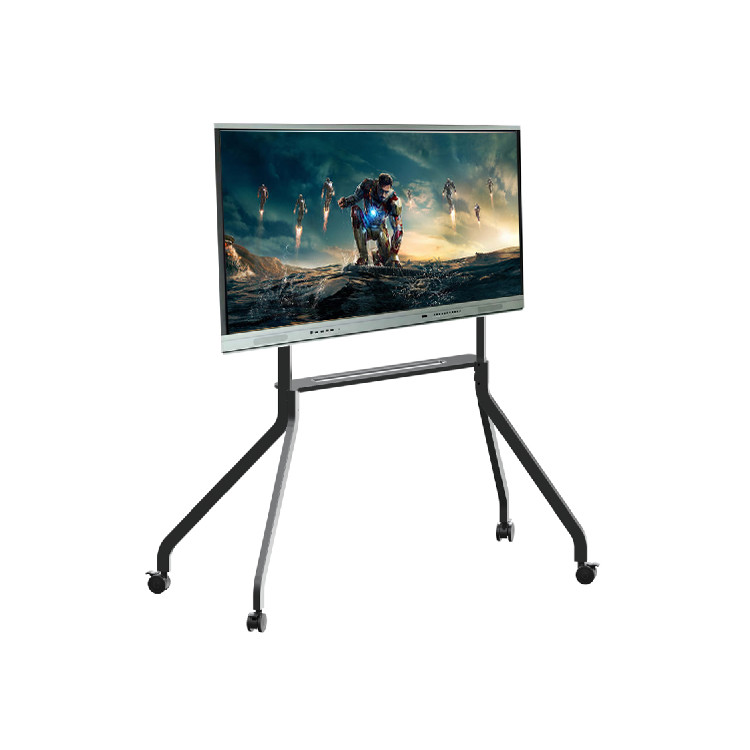

Mobile Stand: Optional Colors: Black Or OEM
Highlight

60Hz Iboard Interactive Whiteboard

,

4K Iboard Interactive Whiteboard

,

60Hz 4k interactive whiteboard

Product Description

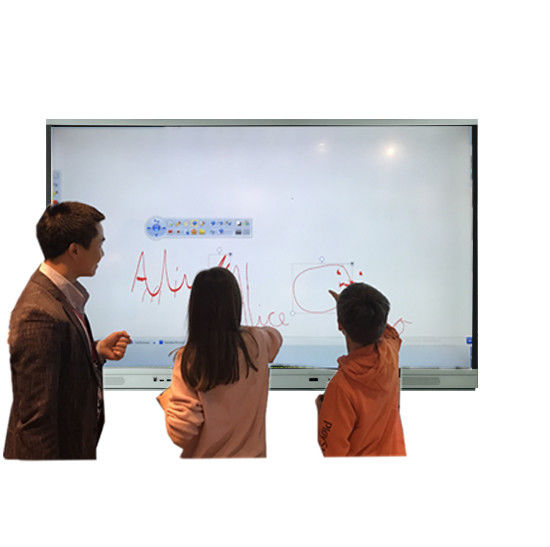

iBoard Interactive Whiteboard 4K 60Hz front port with 3 multi use USB

4K 60Hz Iboard Interactive Whiteboard Front Port With 3 Multi Use USB 0



Product introduce

iBoard interactive whiteboard machine can vividly, vividly and intuitively display pictures, texts, videos, sounds, animations and other contents, effectively stimulate students' multiple senses, and enable students to fully perceive information and receive information under the guidance of teachers. Then, combined with the topic discussion, we can use the known information to solve the problem and achieve knowledge transfer, so as to truly bring the information into our own knowledge structure.



In teaching, the use of LCD touch all-in-one machine can turn the page forward or backward at will, making teaching more flexible. It can spontaneously choose the teaching content according to the situation of the classroom, convenient and fast touch operation; touch all-in-one machine can simplify the key and difficult points, change the depth into shallow, and change the abstract into concrete, making students easy to accept, understand quickly, grasp firmly, and remember deeply. In the classroom teaching, teachers can use the touch display to display the important and difficult points, such as drag, enlarge, pull screen, searchlight, effect animation and other functions, so as to focus the students' attention, deepen the understanding of knowledge and improve the teaching efficiency.



Highlit features

1, 3840*2160(4K) UHD panel, perfect display performance

2, Android 6.0 OS, fast response time

3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly

4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software

5, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers

6, with light sensitive sensor, protect the user’s eyes smartly

7, N.W. no more than 40KG, much easier for delivery and installation

8, multi input annotation software, much easier make note when teaching or having meeting

9, optional magnetic penholder, can stick the magnetic pen on the frame

10, 11 front buttons, the most numbers in the market now, much easier for users operate the machine

11, highest screen display area, nearly no black area on the surface

12, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine

13, built-in router, with RJ45 Lan out port, create the high speed internet share environment



Reference Specification

android system
Android Version Android 8.0 GPU ARM Mali-m51450MHz
CPU

2*ARM Cortex-A73

2*ARM Cortex-A53

RAM 4G,;DDR4;
Dominant Frequency 1.5G ROM 32G
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1


TOUCH SYSTEM
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
Internet
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.0

4K 60Hz Iboard Interactive Whiteboard Front Port With 3 Multi Use USB 1
