| Place of Origin: | CHINA |
|---|---|
| Certification: | CE/FCC/ROHS |
| Model Number: | QS-75 |
| Minimum Order Quantity: | 1 Piece |
| Price: | USD700 - USD1800/unit |
| Packaging Details: | Carton or wooden packaging, oem available |
| Delivery Time: | 15-25 Working Days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 units/month |

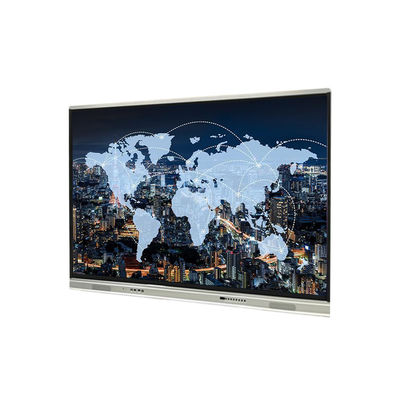

| Brand Name: | IBoard Or OEM | Product Name: | 75'' Infrared Interactive Flat Panel |
|---|---|---|---|
| Model: | QS-75 | Panel Size: | 75 Inch |
| Color: | Black And Silver | Material: | Aluminium Frame |
| Screen Type: | LED | Display Ratio: | 16:9 |
| Contrast: | 1200:1 | Display Size: | 1650.2*928.3 Mm(74.52 Inch) |
| Resolution: | 3840 X 2160 | View Angle: | 178° |
| Brightness: | 350cd/m² | System: | Android 8 |
| RAM: | 2G/4G | ROM: | 16G/32G |
| Touch Technology: | Infrared Touch | Touch Ways: | Finger Or Any Opaque Objects |
| Touch Points: | 10 Points Or More | Support OPS: | One OPS Slot (Optional) |
| Lifetime: | 50000 Hrs | Suport Resolution: | 4K Ultra HD 3840x2160 |
| Screen Size(mm): | 1651,7x929,9mm | Panel Response Time: | 8ms |
| High Light: | 75 inch Interactive Touch Screen Whiteboard,1651x929mm Interactive Touch Screen Whiteboard |
||
| Model | TE-QS-75 | |||
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | |||
| Brightness | 350 cd/㎡ | |||
| Contrast | 1200:1 | |||
| Screen Size(mm) | 1651,7x929,9mm | |||
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | |||
| Panel Response Time | 8ms | |||
| Suport Resolution | 4K Ultra HD 3840x2160 | |||
| Android Specification | Android 8.0 | |||
|
2 * ARM Cortex-A73@1.5GHz 2 * ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| 2.4 and 5.0GHz WiFi; | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| Full support for Full HD and 4K relosution (with OPS slot working with 4k 60Hz); | ||||
| The file manager is supported | ||||
| Screen sharing aplication is supported | ||||
| Local and online supportfor music player. | ||||
| Input Ports |
HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1; USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for Android and PC) x 3; Display Port x1 |
|||
| Output Ports | AV-Out x1; Headphones out; SPDIF x1; HDMI output | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | |||
| Rated Power<350W | ||||
| Touch Parameter | Touch Technology | Infared Touch | ||
| Touch Points | 20 touch points | |||
| Writing Mode | Finger or any opaque object | |||
| Accuracy | <2mm | |||
| Response Time | 5ms | |||
| Cusor Speed | 180 dot/s | |||
| Connection Port | USB 2.0, USB 3.0 | |||
| Operating System | Windows/Linux/Mac/Android | |||
| Working Temperature | 0℃-40℃ | |||

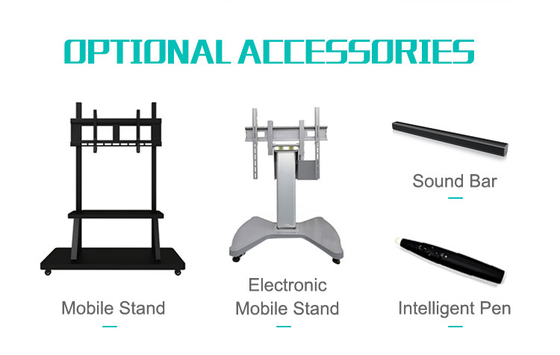

| Accessories | Magnetic Pens*2, HDMI Cable*1, Touch USB, Power Cable*1, Software *1, Remoter*1, Wall mounting bracket VESA: 400x400 for55", 500x400 for 65”, 600x400 for 75", 750x400 for 86" | |||
Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.
Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting Support scan QR code of the whiteboard software to share the meeting records by mobile devices.
Dual System Supporting. Support Android and Windows dual system, each system can be operated and managed separately, elegant simplified UI interface for Android, can select the required functions quickly,configured with DrawView X annotation software, can quickly write down handwriting with real writing feeling.
Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.
Our products meet the certification requirements of most of countries in the world and have complete certificates.
Our factory is 23000㎡, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.
