OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System

Basic Information
Place of Origin: CHINA
Brand Name: iBoard
Certification: CE/FCC/ROHS
Model Number: XP3-86
Minimum Order Quantity: 1 Piece
Price: USD800 - USD1800/unit
Packaging Details: Carton or wooden packaging, oem available
Delivery Time: 15-25 Working Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 units/month
Brand Name: IBoard Or OEM Product Name: 86'' Infrared Interactive Flat Panel
Model: XP3-86 Size: 86 Inch
Color: Black And Silver Material: Aluminium Frame
Screen Type: LED Display Ratio: 16:9
Resolution: 3840 X 2160 Display Size: 1895.04*1065.96mm(85.6 Inch)
Contrast: 1200:1 View Angle: 178°
Built-in Camera: Support 2K Or 4K (Optional) Brightness: 350cd/m²
System: Android 8 RAM: 4G
ROM: 32G Touch Technology: Infrared Touch
Touch Ways: Finger Or Any Opaque Objects Touch Points: 10 Points Or More
Support OPS: One OPS Slot (Optional) Lifetime: 50000 Hrs
High Light:

TFT LED Wall Mounted Interactive Whiteboard

,

OEM Wall Mounted Interactive Whiteboard

,

OEM led interactive smart board

Interactive Touch Screen Monitor 86 inch IR Touch Wall Mounted 4K Display All-in-One Android8 PC





Specifications

DISPLAY
Screen Type TFT LED Display Ratio 16:9
Resolution 3840(H) x 2160(V) Display Area 1895.04*1065.96mm(85.6 inch)
Brightness 350 cd/m3 Color Depth 10bit(R), 1.07Billon colors
Contrast 1200:1 Life Time 50,000 Hrs
Response Time 6.5 ms
ANDROID SYSTEM
Android Version Android 8.0 CPU

2*ARM Cortex-A73

2*ARM Cortex-A53
DISPLAY CONNECTION PORTS
Input Ports (Front)

HDMI 1.4*1;USB Touch Port (B)*1,USB*3(multi use for both Android,OPS and external PC)

USB-C(optional)

Output Ports(back)

AV-out*1; HeadPhone*1; SPDIF*1;

HDMI *1

Input Ports (Back)

HDMI 2.0 *2; VGA *1; Audio*1(together with VGA connection); USB 3.0 *1;

USB 2.0*1, RJ45 *1, SD CARD *1; AV-IN*1(support only Audio in); YPbPr *1; RS232 *1; USB Touch Port (B)*1; Wifi*1,DP *1



Built-in Camera

Support 2K or 4K

Built-in Speakers 2*15W
Sensing Type Infrared Touch Writing Style Finger; Stylus,any opaque object
Positioning resolution 32767 x 32767 Communication Mode Full-speed USB (Plug and Play)
Scanning Speed 4ms Surface Glass 4mm tempered Glass
Response size ≥Φ3mm OS support Android, Windows, Linux, Mac, Chrome
INTERNET
Ethernet 802.3 10/100 Wifi

IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz

Or IEEE802.11an 2.4GHz

Bluetooth 4.2
ACCESSORIES
Touch pen x 2
Touch USB (A-B 1.5M) x 1
HDMI cable(2M) x 1
Power cable(1.8M) x 1
Remote controller x 1

THE PRODUCT -- TE-XP3-86

OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 0

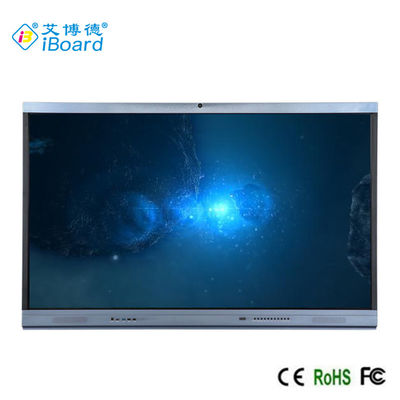

OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 1





Newly designed model,good outlooking and wide view angle,bring a different new visual experience for presentation.



With built-in camera and MIC, good outlooking and wide view angle,bring a different new visual experience for presentation.



Fast and high accuracy infrared Multi-touch,smooth writing and convenient finger-guesture erasing. Built-in HD remote-distance meeting system, support up to 4 remote meeting devices to join meeting Support scan QR code of the whiteboard software to share the meeting records by mobile devices.

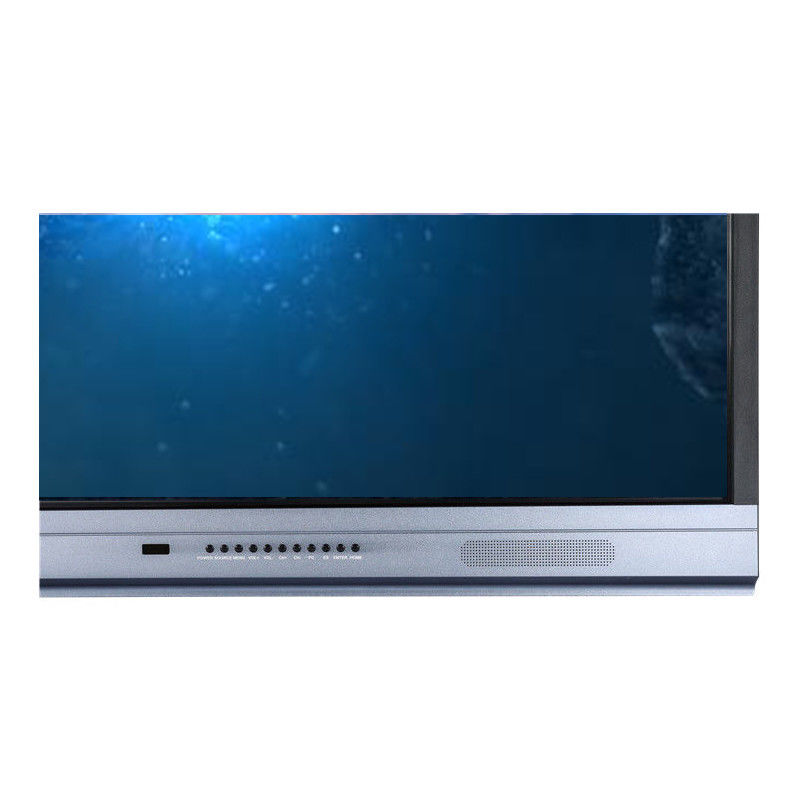

OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 2

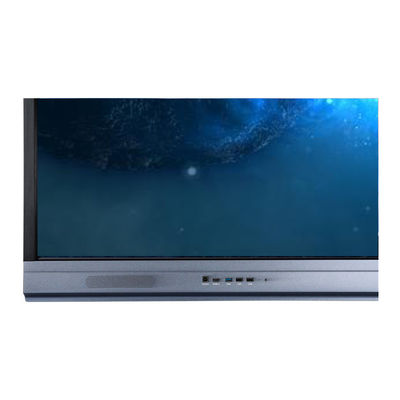

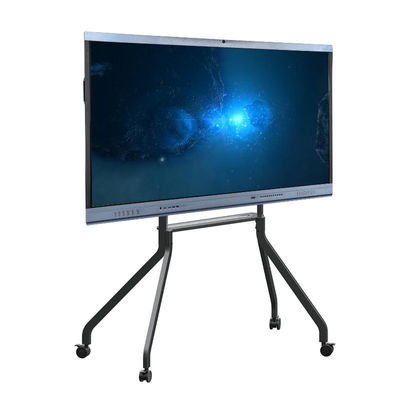

OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 3OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 4OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 5OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 6OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 7

ABOUT US

--Company

OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 8



Shenzhen iBoard Technology Co., Ltd founded in 2007. The company is located in Shenzhen, Guangdong Province, China. It has 14 years of experience in the education informationization industry. We are a smart education solution provider and operation service provider, specializing in R&D, production and sales of smart education cloud platform, interactive teaching software, interactive whiteboard software; also sales interactive whiteboard, laser projector, all-in-one multimedia device, interactive LED display, advertising display and digital signage etc.



OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 9





--Certificates

Our products meet the certification requirements of most of countries in the world and have complete certificates.





OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 10





--Factory

Our factory is 23000, can meet the needs of large orders. We have rich experience in OEM/ODM service for overseas customers. And our products are sold to more than 80 countries. Strict production process ensures that products are carefully debugged when they leave the factory. To ensure the perfect delivery to the customer.



OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 11







OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 12

















OEM TFT LED Wall Mounted Interactive Whiteboard Android 8.0 System 13
