| Place of Origin: | Guang Dong, China |
|---|---|
| Brand Name: | Support OEM or iBoard |
| Certification: | CE, RoHS |
| Model Number: | TE-XP-65 |
| Minimum Order Quantity: | 1 piece |
| Price: | USD980 |
| Packaging Details: | Carton packing |
| Delivery Time: | 21 work days |
| Payment Terms: | T/T, Western Union, L/C, |
| Supply Ability: | 5000pcs per month |
| Size: | 65 Inch | Frame Color: | Black, Or Gray+Black |
|---|---|---|---|
| Android Version: | Android 8.0 4+32G | Touch Point: | Android 20 Touch, Windows 40 Touch |
| Glass: | Tempered AG Glass | Speaker: | 15W*2 |
| DP: | Yes | HDMI Out: | Yes |
| Type C: | Optional | RJ45: | RJ45-in, Rj45-out(optional) |
| Camera And MIC: | Built-in | Wifi: | 2.4G/5G With BT |
| High Light: | 65'' Interactive Touch Screen Monitor,Infrared Interactive Touch Screen Monitor,RoHS 65 inch interactive touch screen |
||
| Model | TE-XP-86 |
|
Screen size
|
86”
|
|
Display backlight
|
D-LED backlight
|
|
Resolution
|
3840 x 2160 (4K)
|
|
Aspect ratio
|
16:9
|
|
View Angle
|
178
|
|
Screen size
|
1895.04*1065.96 mm
|
|
Contrast
|
1200:1
|
|
Brightness
|
350 cd/m2
|
|
Colour
|
10bit, 1.07 billion colours
|
|
Support resolution
|
1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60Hz
|
|
Rated power
|
< 415W
|
|
Standby power
|
< 1W
|
|
Voltage
|
AC (100~240)V-50/60Hz
|
|
Input ports
|

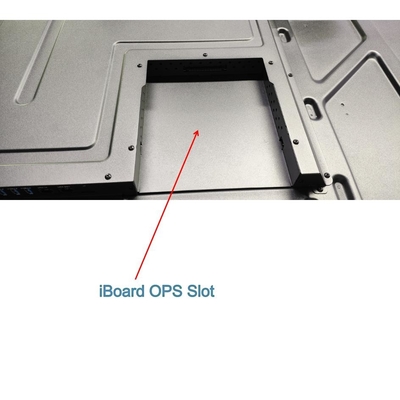

- Back: Back: HDMI2.0*2, DP*1, VGA-IN*1, VGA Audio-input*1, YPBPR*1, AV-in*1, RS232 Series*1,USB3.0*1, USB2.0*1 , RJ45-in*1, WIFI(5G)*1 (with two antenna), SD Card*1, OPS Slot(Max support 3840*2160/60Hz)*1, Touch USB B Type*1, RJ45-outx1

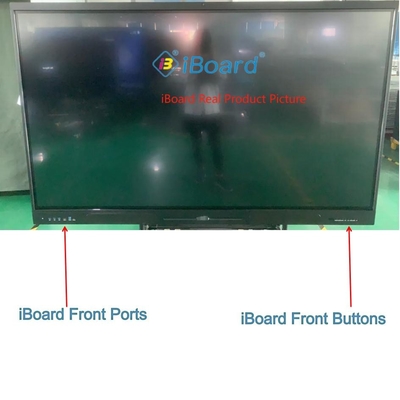

- Front: USB2.0x3 (support both PC and Android), Touch USBx1, HDMIX1, Type Cx1
|
|
Output ports
|
HDMI-out*1; SPDIF*1, Earphone*1, AV-Out*1
|
|
Built-in speakers
|
15W x 2
|
| Buit-in camera and MIC | 8 maga-pixel camera and 4-ray MIC |
|
Accessories
|

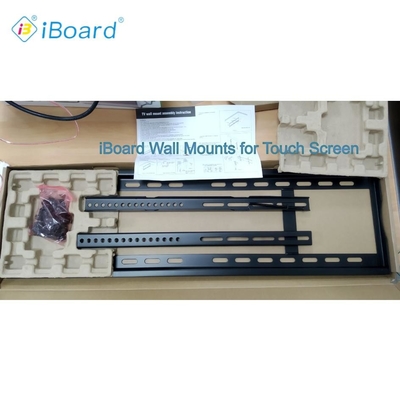

Wall mountx1, Power cable x 1; Touch USB x 1; HDMI cable x 1; Pen x 2; Remote control x 1, Software download noticex1
|
| Product dimension(mm) |
1486*944.5*102
|
|
Net weight(kgs)
|
38 |
|
Gross Weight(kgs)
|
52 |
| Carton size(mm) | 1646x1074x240 |

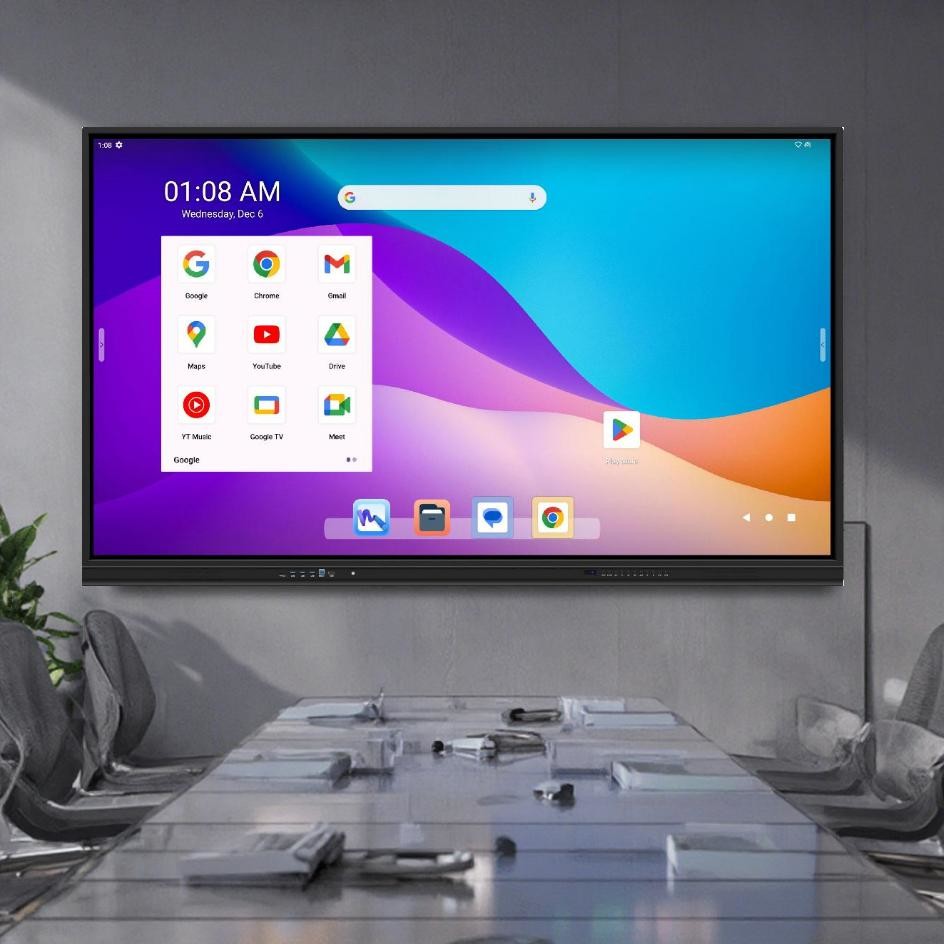

Product Photos
