| Place of Origin: | CHINA |
|---|---|
| Brand Name: | Iboard |
| Certification: | CE,FCC,ROHS,WEEE,Etc. |
| Model Number: | TE-TL-65 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD950-980/PC |
| Packaging Details: | carton box or could be with wooden crate or pallet |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5000PCS Per month |
| Model: | LCD Smart Board With TL Series Built In Andriod 9.0 Touch Monitor | Color: | Black Or Grey |
|---|---|---|---|
| Resolution: | 3840*2160 | Flash: | 16G/32G EMMC |
| Writing Mode: | Fingers Or Pen | Built In Speakers: | 2*15W |
| Lifetime: | 50000 Hours | Andriod Version: | 9.0 |
| High Light: | 32G EMMC LCD Smart Board,3840*2160 LCD Smart Board |
||

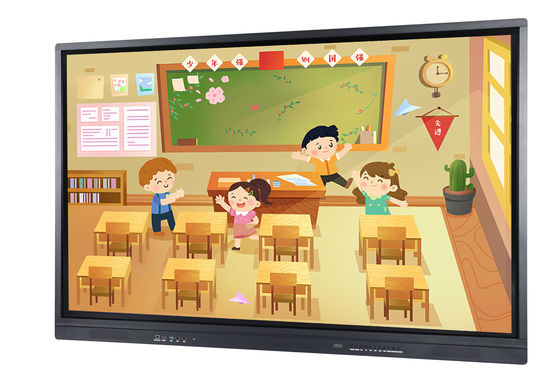

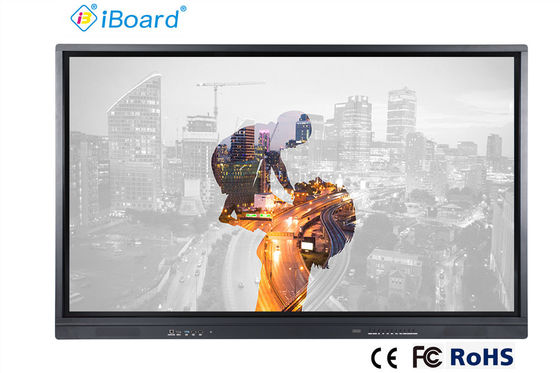

LCD Smart Board TL Series Finger Pen Writing Bluetooth Wifi LAN Light Sensor Built in 65 75 86 Inch
Special points:
1, 3840*2160(4K) UHD panel, perfect display performance
2, Android 9.0 OS,latest Android version for touch monitors with 11 keys in front and TOUCH USB PORT,HDMI PORT, USB PORT*3
3, Latest Infrared touch technology, 10points multi touch, high speed and smoothly
4, Touch support Windows, Linux, Android and Mac OS, and each system can provide suitable interactive educational software
5, Touch support Chrome OS
6, with 3 multi use front USB port, not only work in Android and OPS, but also can pass through the external PC USB, take more convenience to teachers
7, with light sensitive sensor, protect the user’s eyes smartly
8, multi input annotation software, built-in handwriting recognition (Optional), much easier make note when teaching or having meeting
9, optional magnetic penholder, can stick the magnetic pen on the frame
10, 11 front buttons, the most numbers in the market now, much easier for users operate the machine,TYPE-C Port is optional
11, highest screen display area, black area of scree no more than 2mm
12, built-in user guide, user can click the guide at the home page, much easier for know how to use the machine
13, With HDMI OUT port, extend the screen display
14, optional front Type-C port, support both video play and USB function
15, bulit-in video conference software, support video call after connect to camera
16, bulit-in screen share software, support screen projection from phone/PC/PAD/IFPD,etc.
| Model | TE-TL-65 | TE-TL-75 | TE-TL-75 |
| Display size | 1428.5*803.5mm | 1649.7*927.9mm | 1895.04*1065.96mm |
| Product size | 1555*943*99mm | 1776*1083*124mm | 2029*1229*130mm |
| Front keys |
POWER,SOURCE,MENU,VOL+,VOL-,REC,A.Blue,PC,ES,RATIO,HOME |
||
| Input ports |
Back IO input:2*HDMI2.0(up to3840*2160/60Hz),1*VGA+AUDIO,2*USB 2.0,1*TOUCH-USB,1*RS232,1*TF,1*LAN IN(10M/100M),1*WIFI(2.4G/5G),1*Bluetooth,1*OPS(up to3840*2160/60Hz, bulid-in 10M/100M LAN) Front IO input:1*HDMI(Max supporting 3840*2160/60Hz),1*TOUCH USB,3*USB |
||
| Output ports |
Back IO OUTPUT:1*COXIAL,1*EARPHONE |
||
| Touch points |
Single/Two/Four/Six/Ten points |
||
| Touch technology | Infrared touch | ||
| Model | TE-TL-65 | TE-TL-75 | TE-TL-86 |
| Rated voltage |
AC(100-240)V～50/60HZ |
||
| Rated current | 2.5A(including OPS) | ||
| Location resolution |
4096*4096/16384*16384/32768*32768 |
||
| Operating system |
WINDOWS/LINUX/MAC /Android |
||
Packing info.:
| Model | TE-TL-65 | TE-TL-75 | TE-TL-86 |
| Packing size | 1650*230*1050mm | 1908*265*1197mm | 2157*270*1343mm |
| N.W. | 50KGS | 61KGS | 78.5KGS |
| G.W. | 64KGS | 78KGS | 100KGS |
| Packing accessories | Touch USB Cable*1, HDMI Cable*1,Power supply cord*1,Touch pen*2,Remote controller*1,Warranty card*1 | ||
Applications:classroom,business center, office,lab,etc.
