| Place of Origin: | China |
|---|---|
| Brand Name: | Iboard |
| Certification: | CE,FCC,ROHS,etc. |
| Model Number: | TE-QS-65 |
| Minimum Order Quantity: | 10PCS |
| Price: | USD850-950/PC |
| Packaging Details: | carton box, or could be with wooden pallet and crate |
| Delivery Time: | 15-20 working days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 5,000pcs per month |
| Model: | Interactive Touch Screen Monitor With TYPE-C Remote Video System | Side Bar: | WITH |
|---|---|---|---|
| Glass: | 4mm Tempered Glass | Operating OS: | Mac/Linux/Windows/Andriod |
| Touch Points: | 1/2/4/6/10 | Andriod Version: | 8.0/9.0 |
| Type-C Port: | Optional | Applications: | Classroom,office,business,lab,family,etc. |
| Transreen Sharing: | Upto 4 Screens | Front Keys: | POWER、SOURCE、MENU、VOL+、VOL-、CH+、CH-、PC、ES、ENTER、HOME |
| High Light: | 86 Inch Smart Touch Screens,TYPE C 4k Interactive Touch Monitor,86 Inch 4k Interactive Touch Monitor |
||

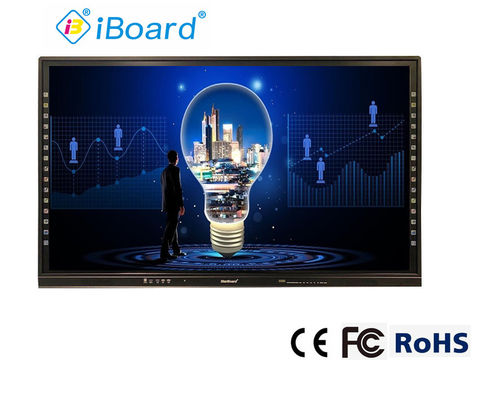

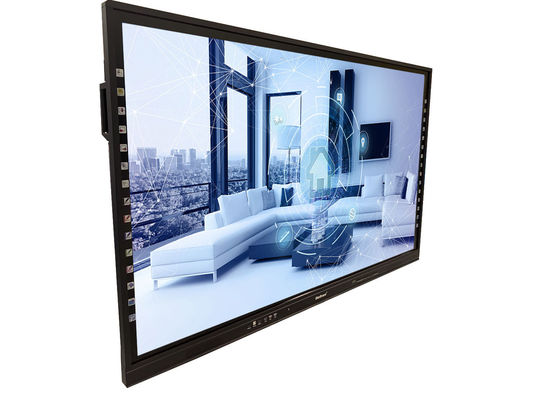

Interactive Touch Screen Monitor 65 75 86 Inch TYPE-C Port Side Bar Tempered Glass Remote Video System
Hotlights:
1. With color side bar at left and right, easier for fast operation
2. Multi touch point supporting: 1/2/4/6/10 points
3. Touch technology: Infrared technology
4. Operation OS: WINDOWS/ANDRIOD/MAC/LINUX
5. Applications: school,classroom,office,meeting,lab,presentation,family,etc.
Technical data:
| Model | TE-QS-65 | TE-QS-75 | TE-QS-86 |
| Display size | 1429.5*804.5mm | 1650.7*928.9mm | 1897*1068mm |
| Andriod version | 8.0/9.0 | ||
| Front ports | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | ||
| Input ports |
HDMI 2.0 x2; HDMI 1.4 x1; VGA x1; VGA Audio-In x1; YPBPR x1; AV x1;
USB 3.0 x1;USB 2.0 x1; RJ45 x1; SD Card Reader x1; Touch USB port x2; OPS slot x 1; RS232 x1; USB2,0(for
Android and PC) x 3; Display Port x1
|
||
| Output ports | AV-Out x1; Headphones out; SPDIF x1; HDMI output | ||
| Writing mode | Finger or any opaque object | ||
| Operating OS | LINUX/MAC/WINDOWS/ANDRIOD | ||
Specifications:
| Model | TE-QS-65 | TE-QS-75 | TE-QS-86 |
| Product size | 1507.2*914.9*89mm | 1729.4*1040*89.2mm | 1975.6*1178.7*89.2mm |
| Resolution | 3840*2160 | ||
| Sreen sharing | Support | ||
| Connection port | USB2.0,USD3.0 | ||
| Voltage | AC(100～240)V-50/60HZ | ||
Packing details:
| Model | TE-QS-65 | TE-QS-75 | TE-QS-86 |
| Packing size | 1646*240*1050mm | 1873*240*1204mm | 2120*240*1353mm |
| N.W. | 42KGS | 55KGS | 71KGS |
| G.W. | 55KGS | 71KGS | 94KGS |
| Packing accessories | Touch USB cable*1, HDMI cable*1,Touch pen*2,Power supply cord*1,Remote controller*1,Warranty card*1 | ||
Applications:
Office, classroom,meeting,lab, presentation,etc.
