| Place of Origin: | China |
|---|---|
| Brand Name: | iBoard |
| Certification: | CE FCC |
| Model Number: | TE-YL5C |
| Minimum Order Quantity: | 1 piece |
| Price: | USD700-USD1800 per pieces |
| Packaging Details: | export cartons for the Touch Interactive display |
| Delivery Time: | 25 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 pieces per month |
| Type: | Infrared,Capacitive,interactive Flat Panel,LCD Touch Screen | Interface Type: | USB,D-Sub,DVI,Serial,VGA,HDMI, DP, Etc |
|---|---|---|---|
| Resolution: | 3840*2160 | Screen Size: | 65",55",75inch,86 Inch ,98 Inch |
| Product Name: | Iboard Interactive Whiteboard,Touch Screen Interactive Flat Panel,Infrared Touch Screen Frame,cheap Touch Screen Monitor Interactive Flat Panel All In One Pc,touch Screen Monitor | Touch Points: | 10 Points,can Be Customized,1~20 Points, 20 Points, 32 Points, 40 Points |
| Color: | Black,black/white/gold/customizable,Silvery/Black | Application: | Teaching,meeting,HOME,training,education |
| Operating System: | WIN2000/XP/Vista/7/8 And More,android8.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional | Cpu: | A73*2+A53*2 |
| GPU: | Mali-G51 | Brightness: | 350cd/m2 |
| Interface: | USB2.0/3.0,USB/RS232/I2C,AC,USB,HDMI | Warranty: | 1 Year For Panel, And 3 Years For Components |
| Material: | Aluminum Alloy Frame | Viewing Angle: | 178°(H) / 178°(V) |
| Screen Type: | LED,LCD | Function: | Projector,tablet,writingboard,PC,TV |
| High Light: | Iboard Digital Whiteboard For Teaching,8ms Digital Whiteboard For Teaching,8ms interactive board for teaching |
||

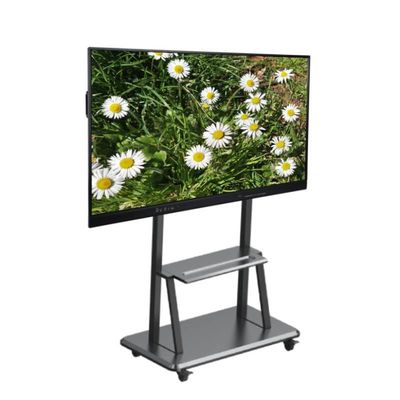

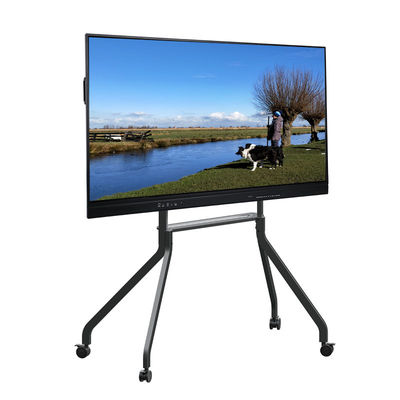

Iboard Interactive Whiteboard Infared Touch Screen For Education And Conference
Ⅰ. Description Of iBoard Interactive Whiteboard
An iboard interactive whiteboard is a computer driven device, allowing users to access and manipulate electronic files by means of a LCD display. The interactive LCD will be connected to a computer with USB, and the computer then connected back to the LCD with a video cable.It is as known as interactive screen, interactive whiteboard, smart whiteboard, touch screen display, touch monitor, LED touch monitor, touch interactive display, interactive flat panel display, touchscreens , etc.
Our company have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one.
II. Our Advantages:
14 years' experience on making OEM/ODM interactive flat panels and interactive whiteboard
products sold to more than 80 countires in the world
Own developed Infrared technology
ODM/OEM Support
SKD support
Customized size
Easy for after-sales service
Shortest delivery time
Top quality in this field
Best Value
II. Product Advantage Feacture
With three side ultra slim bezel, the bezel width is only 10mm, adding the black edge of display area, only 20mm.
With non-air gap (zero gap) glass design, make writing experience very good and actual visual angle wider...
III. Specification
| Model | TE-YL5C-65 | TE-YL5C-75 | TE-YL5C-86 | |
| Dispaly Backlight | D-LED Backlight | |||
| Resolution | 3840*2160 | 3840*2160 | 3840*2160 | |
| Brightness | 350 cd/㎡ | 350 cd/㎡ | 350 cd/㎡ | |
| Contrast | 1200:1 | 1200:1 | 1200:1 | |
| Screen Size(mm) | 1428.5*803.5 | 1649.7*927.9 | 1895.04*1065.96 | |
| Aspect Ratio | 16:9 | |||
| View Angle | 178° | |||
| Screen Mode | 16:9/4:3/dot to dot/full screen | |||
| Color Depth | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | 10bit, 1.07Billon colors | |
| Panel Response Time | 8ms | 8ms | 8ms | |
| Suport Resolution | 1280*960/1280*1024/1360*768/1440*900/1600*1200/1920*1080/3840*2160@60HZ | |||
|
Android Specification |
Android 8.0 | |||
|
2 x ARM Cortex-A73@1.5GHz 2 x ARM Cortex-A53@1.5GHz |
||||
| ARM Mali-G51450MHz | ||||
| Ram: 4G | ||||
| Storage: 32G | ||||
| I/O Ports | Please contact us to know more detail specification | |||
| Front Button | POWER,SOURCE,MENU,VOL+,VOL-,CH+,CH-,PC,ES,ENTER,HOME | |||
| Built in camera | 8 Mega Pixels | |||
| Built in Microphone | 4 array built in microphones | |||
| Voltage | AC(100～240)V-50/60HZ | |||
| Power Range | Standby Power<1W | Standby Power<1W | Standby Power<1W | |
| Rated Power<230W | Rated Power<350W | Rated Power<415W | ||
Remark: For more details of the specification , please contact us to know more detials.
