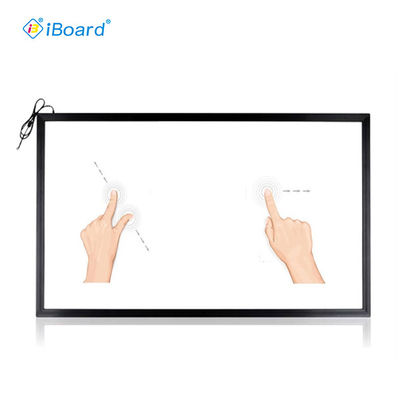

32 IR Touch Frame Interactive touchscreen overlay 22~300 inch Customized size
Product Details:
| Place of Origin: | CHINA |
| Brand Name: | iBoard support OEM / ODM |
| Certification: | CCC, CE, RoHs, FCC, ISO |
| Model Number: | LE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 150 pcs |
|---|---|
| Price: | USD50-USD2000 per pieces |
| Packaging Details: | Carton Package |
| Delivery Time: | 30 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 pcs per month |
|
Detail Information |
|||
| Type: | Infrared Touch Technology | Interface Type: | USB,Serial |
|---|---|---|---|
| Touch Points: | 10 Points,can Be Customized,1~40 Points | Size: | 32" 42" 43" 49" 50" 55" 65" 70" 75" 80" 86"... |
| Operating System: | WIN,Android, MAC Optional | Interface: | USB2.0/3.0 |
| Material: | Aluminum Alloy Frame | Supply Voltage: | DC 5V |
| Highlight: | Kiosk Ir Touch Frame 32 Inch,Serial Interface Ir Touch Frame 32 Inch,32 Inch interactive touch frame |
||
Product Description
Infrared Touch Frame Multi touch screen overlay kit 21.5" 32" 49" 55" 65" 75" ...300"

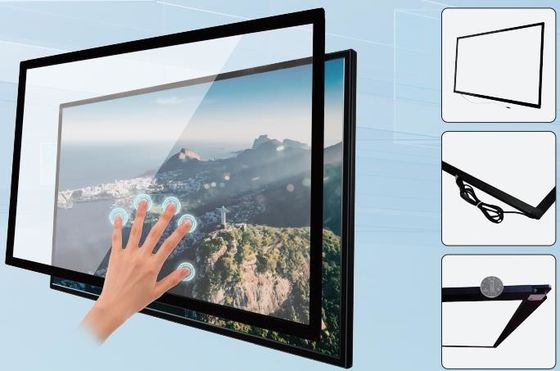

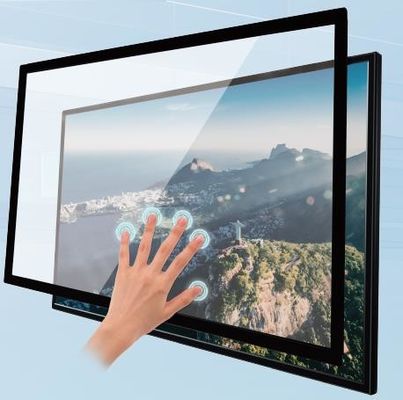

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device. It support multi-touch, with smoothly writing experience.
Application
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes
Size: 21.5”~300”
Customized sizes available
1~40 touch points available
SKD available
Specification
| Specification | |
| Touch Technology | Infrared Touch Technology |
| Touch Points | 2, 10, 20, 40 touch points available |
| Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
| Touch Interpolation | 32768 x 32768 |
| Respond Time | 5-10 ms |
| Touch Accuracy | ±2mm (over 90% Area) |
| Touch Durability | Unlimited |
| Available Size for Touch | Φ5mm |
| Supply Voltage | DC+5V±10% |
| Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |

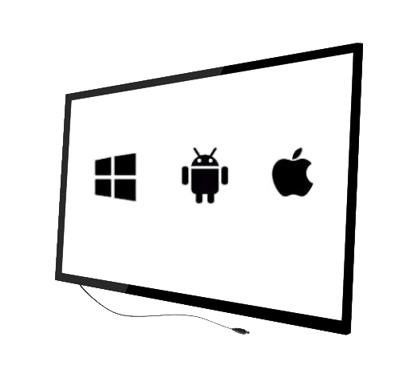

| Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing

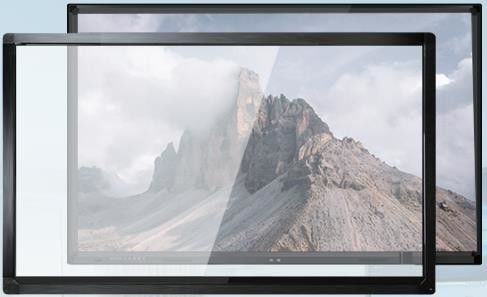

For multi-touch screen overlays with glass(above picture for reference)

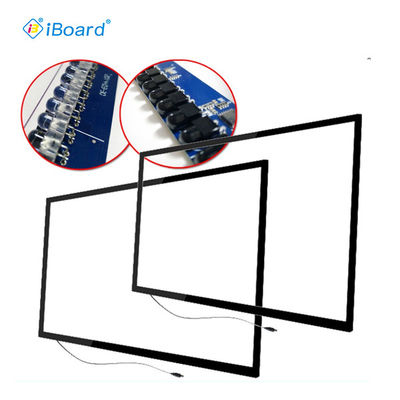

For multi-touch ir touch frame disassemble in SKD mode:
