| Place of Origin: | China |
|---|---|
| Brand Name: | iboard |
| Certification: | CE FCC ROHS |
| Model Number: | LE |
| Minimum Order Quantity: | 10 pieces |
| Price: | USD50-USD200 per pieces |
| Packaging Details: | SKD export cartons or plastic pipe, or export carton for the IR touch frame touch screens |
| Delivery Time: | 10 working days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 20000 pieces per month |
| Product Name: | Touch Frame, IR Touch Frame, Infrared Touch Screen Overlay, IR Touch Kit, IR Touch Frame Overlay | Resolution: | 32768 X 32768 |
|---|---|---|---|
| Type: | Infrared Touch Technology | Interface Type: | USB,Serial |
| Touch Points: | 10 Points,can Be Customized,1~20 Points | Size: | 32" 42" 43" 49" 50" 55" 65" 70" 75" 80" 86" |
| Application: | Teaching,meeting,training,education | Operating System: | WIN2000/XP/Vista/7/8 And More,android5.0,Android 5.0+Win7/10 Option,vista,Android+Win7/10 Optional |
| Interface: | USB2.0/3.0 | Warranty: | 2 Years |
| Material: | Aluminum Alloy Frame | Color: | Black Or Customized Color |
| Supply Voltage: | DC 5V | Power Supply: | USB Powered |
| Highlight: | Monitors Ir Multi Touch Frame,DC 5V Multi Touch Frame,DC 5V multi touch frame |
||
IR touch Cheap Hight quality factory direct supply customized ir touch frame touch TV overlay frame for monitors
iBoard is leading provider of multi-touch solutions in China, we provide realible, durable and high performance
interactive touch soutions to cusotmers from TV manufacturing, Commercial field, Education, ATM etc.We are always devoting ourselves to be the No.1 infrared touch solution developer and manufacturer in the world.
I. Introduce of product

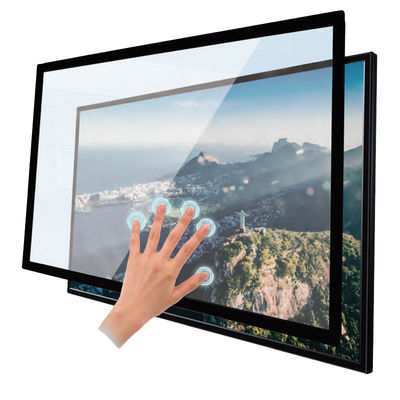

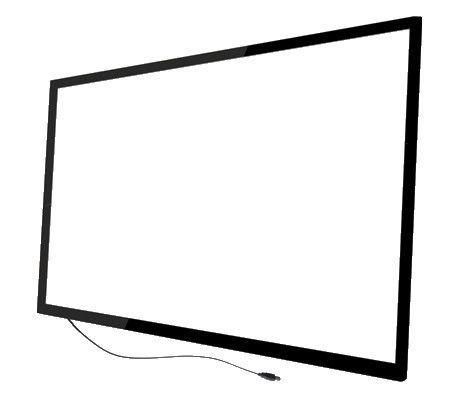

Interactive infrared touch frame is interactive kit which is widely used to convert any displays without touch to an interactive device.
It support multi-touch and smooth writing experience.
Application of touch frames:
Digital Touch Signage/Touch Kiosk/Touch Screen Monitor/Interactive Video Walls/Touch Table/Vending Machine/Touch Inquiry Machine/Medical Devices/ATM and More...
Available sizes:
Size: 20”~150”up
Customized sizes available
6~40 touch points available
SKD available
Specification
| Name | Specification |
| Touch Technology | Infrared Touch Technology |
| Touch Points | 6, 10, 20, 40 touch points available |
| Touch Input Method | Finger, Pointer, Styplus pen or any other Opaque objects |
| Touch Interpolation | 32768 x 32768 |
| Respond Time | 5-10 ms |
| Touch Accuracy | ±2mm (over 90% Area) |
| Touch Durability | Unlimited |
| Available Size for Touch | Φ5mm |
| Supply Voltage | DC+5V±10% |
| Operating Current | <200mA for some sizes of some series; ≤500mA for some sizes of some series |
| Supporting System | Windows/Mac OS/Linux/Android/Chrome OS |
Packing
For multi-touch screen overlays with glass:
For multi-touch ir touch frame disassemble in SKD mode:
packed in SKD carton or plastic pipe
