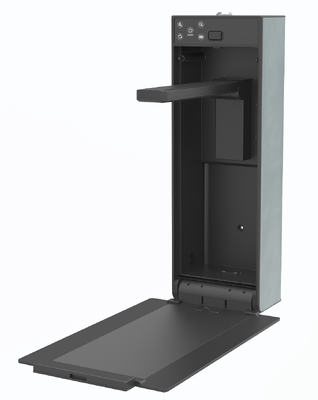

13 Megapixels Wall Document Scanner Camera Visualizer A4 Paper Object Class Office Meeting
Product Details:
| Place of Origin: | China |
| Brand Name: | iboard or OEM |
| Certification: | CE |
| Model Number: | IBD-13DC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Packaging Details: | carton box |
| Delivery Time: | 18-20 working days |
| Payment Terms: | T/T |
| Supply Ability: | 500pcs per month |
|
Detail Information |
|||
| Application: | School Classroom/meeting Room/presentation | ||
|---|---|---|---|
Product Description
13 Megapixels Wall Document Scanner Camera Visualizer A4 Paper Object Class Office Meeting
Specification sheet:
| Requirement No. | Spec Name | Spec Description |
| Brand / Model / Product Name |
IBD-13DC | |
| Product Name | Visual Presenter / Document Camera | |
| Complete Unit | ||
| Device Category | USB Powered | |
| Operating Voltage Range | 4.9V-5.1V | |
| Standby Current | 140mA | |
| Complete Unit Operating Current Range | Normal use 330mA ~ All functions on <450mA | |
| Operating Environment (National Standard) | Temperature range (-20℃~45℃) Humidity range (0-70%) | |
| Storage Environment (National Standard) | Temperature range (-20℃~55℃) Humidity range (0-70%) | |
| Accessories | 5m USB cable, fish-shaped expansion screws *3, wall-mount bracket, certificate of conformity, installation guide | |
| Camera | Lens Resolution | 13 Megapixels |
| Resolution | Max resolution 4160x3120 | |
| Definition | Center 1800 TV lines, edges 1500~1700 TV lines | |
| Operating Frequency | 50Hz/60Hz selectable; factory default: 50Hz (China) | |
| Capture Area | ≥ A4 area | |
| Video Format | MJPG,YUV | |
| Exposure / White Balance | Auto exposure and white balance enabled for image | |
| Focus Mode | Auto AF |
| Fill Light | Type | LED Fill Light |
| Dimming Method | Touch Dimming | |
| Dimming Mode | 3-Level Dimming |
| Terminals | Touch USB (Bottom-Mounted) | USB- Type B×1 UVC driver-free |
| Interface Type | USB2.0,UVC driver-free | |
| Driver-Free Environment | Windows7,Windows8,Windows8.1,Windows10,Windows11,Android |
| Touch Function | Enclosure Panel | 5 touch buttons; one-tap software launch, with zoom-in, zoom-out, rotate, and capture; supports one-tap quick switching between full-screen PPT and the presenter view. |
| Touch Focus | Capacitive Touch Focus |
Appearance & Structure

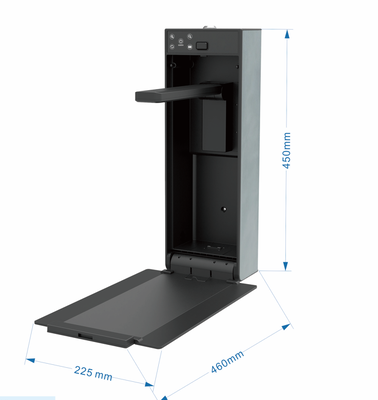

| Folded Dimensions (mm) | 450mm height * 150mm width * 100mm thickness | |
| Expanded Dimensions (mm) | 450mm height * 225mm width * 460mm thickness | |
| Appearance Color | Black + Silver | |
| Main Component Material | Enclosure: Aluminum alloy + ABS Camera Arm: ABS Tray: Tri-fold open/close tray (material) Aluminum alloy + ABS |
Packing: 1pc/box
Or can combine to work with iboard smart board
About iboard: professional in OEM & ODM service ,one-stop solution provider, main products : smart board, touch panel, touch frame, digital signage,LED display,etc.
