iBoard 75 Inch Interactive Flat Panel Display Smart Boards with Google EDLA Certified
Product Details:
| Place of Origin: | Shenzhen, CHINA |
| Brand Name: | iBoard |
| Certification: | CE, FCC, RoHS, Reach, CCC, OHSAS, ISO9001, ISO14001 |
| Model Number: | TE-QS-75 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pieces |
|---|---|
| Price: | TBD |
| Packaging Details: | Carton Package in standard, Wooden case or wooden crate optional |
| Delivery Time: | 20-40 days |
| Payment Terms: | T/T |
| Supply Ability: | 10000 units per month |
|
Detail Information |
|||
| Screen Size: | 75 Inch | Touch Points: | 20 Points For Android, 40 Touch Points For Windows |
|---|---|---|---|
| Color: | Black In Standard, Grey, Silver, White ( Optional ) | Application: | Educational Teaching, Meeting, Training, Home |
| Operating System: | Built In Android And Windows | Brightness: | 450 Cd/m2 |
| Interface: | USB, VGA, RS232, HDMI... (as Per Specs.) | Material: | Aluminum Alloy Frame |
| Certificates: | CE, ROHS, FCC, Google EDLA... | Aspect Radio: | 16:9 |
| Screen Size: | 75" | Shipping Way: | Sea Shipping, Air Freight, Truck Freight |
| Warranty: | 1 Year | Power Supply: | AC 100-240V, 50/60Hz |
| Operation System: | Andriod/Windows/Linux/Mac.etc. | Accuracy: | 1 Mm |
| Mobile Stand: | Yes, Need Extra Cost | Camera: | Yes, Built In 48MP, Or External Camera |
| Microphone: | Yes, Built In 8 Array Microphone, Or Other Request | NFC Function: | Yes, Need Extra Cost, Tap And Login In |
Product Description

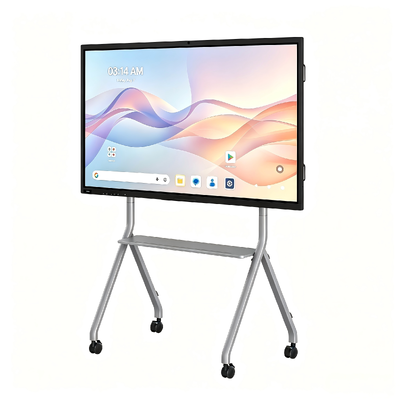

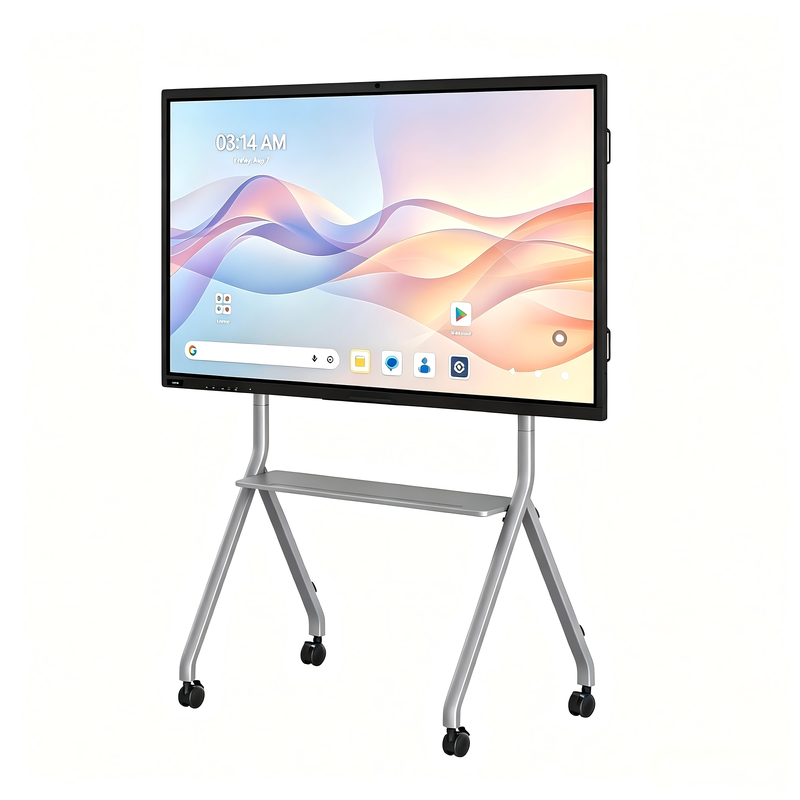

iBoard 75 inch Interactive Flat Panel Display
with Google EDLA certified
Description of 75 inch Interactive displays
iBoard Google EDLA certified Interactive Touch Solutions for School Classroom, office, conference presentation, Trainning, annotation ect.
Built in latest Android 16 ( 8GB+128GB), come with OPS slot for Windows system. Camera& mic ,NFC function built in, come with mobile stand for moving display.
Google Enterprise Device Licensing Agreement (EDLA) certification ensures the IFPD has compatibility and optimal performance with Google applications and services, whether it is for education, busess, or entertainment. You can also use (Sheets, Slides, Meet, and more to boost your prouctivity and collaboration.
We have a strong R&D team and our IFPD is independently developed and produced, integrates LED display, computer, speaker, electronic whiteboard, TV and other functions in one. With various experience on making OEM/ODM interactive flat panels and interactive whiteboard, products sold to more than 80 countires in the world.
We have Own developed Infrared technology and whiteboard softwares;
SKD support;
Easy for after-sales service;
Good quality control;
Firmware upgrades for lifetime.
Key Features
Al-Powered Teaching: Alassists teachersin generating quizzes,homework,summaries,and presentations.
Interactive Whiteboard: Featureslike infinite canvas,two-sided writing, and OCR for text recognition and math equation solving.
Classroom Management:Tools for scheduling classes,tracking attendance,recording lessons, and analyzing student performance.
Google EDLA Certified: Provides access to Google apps and services with optimized performance and security.
Hardware Capabilities: Features an Octa Core processor, NPU for Al tasks.
48MP 4K camera, and 40W speakers.
Connectivity: Supports multi-touch, wireless casting, and cloud-based lesson saving.
Digital Whiteboard: Offers natural,seamless writing and crystal-clear visuals.
Customizable Workflows: Adaptable screen setups to suit different teaching styles.
Learning Management: Includes featuresfor managing learning activities and resources.
Assessment Management: Facilitates the creation and management of assessments.
Specifecation - TE_QS_Pro series
|
Model No. |
TE-QS-75 |
|
|
Dispaly Backlight |
DLED backlight |
|
|
Resolution |
Native 4K (3840 x 2160 pixels) , UHD |
|
|
Brightness |
450 cd/㎡ |
|
|
Contrast |
1200:1 typ |
|
|
Screen Size(mm) |
1.89m, 75” |
|
|
Aspect Ratio |
16:9 |
|
|
View Angle |
178° |
|
|
Screen Mode |
16:9/4:3/dot to dot/full screen |
|
|
Display Colors |
1.07 Billon |
|
|
Lifespan |
50,000 hours |
|
|
Panel Response Time |
5 ms |
|
|
Suport Resolution |
4K Ultra HD 3840x2160 |
|
|
AG Tempered Glass |
tempered glass, 3.2mm thickness, anti-reflective, shock and scratch resistant.9H hardness |
|
|
Android Specification |
Android 16.0 (EDLA certified) |
|
|
CPU : Octa Core 64 bit , Quad-core Cortex-A72 +Quad-core Cortex-A53, max frequency @ 2.2GHz |
||
|
Mali-G52 MC3 @ 1.8 GHz |
||
|
Support Wi-Fi 6 802.11 a/b/g/n/ac , 2.4GHz& 5GHz |
||
|
Bluetooth® 5.4 |
||
|
Ethnet: 10/100/1000 M |
||
|
Ram: 8GB |
||
|
Rom: 128GB |
||
|
Full support for 4K UHD relosution (with OPS slot working with 4k 60Hz); |
||
|
Google EDLA certified, provides access to Google apps and services with optimized performance and security |
||
|
Support Wireless casting, clound based saving |
||
|
Android IWB app: |
Yes, built in with multiple Ai features |
|
|
Connectors |
Ports on the front bezel : 1 x HDMI 2.0, 3x USB-A 3.0 , 1 x USB-B (Touch) , 1 x USB-C 3.0 (Touch, data, video, audio, PD charging) Rear Ports: Input ports : 3*HDMI2.0, 1*DP, 1*VGA& Audio , 1* USB-C(touch, data, video, audio, PD charging), 1* USB2.0 (Android), 2*USB-A 3.0 (Public), 3*TOUCH-USB, 1*RJ45 IN, 1*MIC(Audio jack, 3.5mm), 1*RS232, 1*TF Card Slot, 1*OPS SLOT Output ports: 1* HDMI out, 1*SPDIF, 1*Earphone, 1* RJ45 out, 1X USB- C (Type C) |
|
|
Front Button |
8 Buttons |
|
|
Light Sensor |
support automatically adjusts the brightness of the panel according to ambient light. |
|
|
Built in Camera |
48 MP, 4K UHD quality video, AI camera with sound localization and intelligent framing |
|
|
Built in Array Microphones |
8 Arrays , omni directional |
|
|
Voltage |
AC(100～240)V-50/60HZ |
|
|
Speaker |
20W X2 (40 Watt) |
|
|
NFC function |
for Instant and secure login with a simple tap of the NFC card |
|
|
OPS computer |
i5-11400H, 16GB, 128GB SSD, Windows 10 IoT Enterprise, activated license |
|
|
|
Standby Power<1W |
|
|
Rated Power<350W (w/o OPS) |
||
|
Touch Parameter |
Touch Technology |
Infared Touch |
|
Touch Points |
multi touch, 20/40 touch points |
|
|
Writing Mode |
Finger or any opaque object, The use of the device by 2 users simultaneously will be guaranteed. |
|
|
Accuracy |
<2mm |
|
|
Response Time |
5 ms |
|
|
Cusor Speed |
>180 dot/s |
|
|
Connection Port |
USB 2.0, USB 3.0 |
|
|
Operating System |
Windows/Linux /Mac OS /Android/Chrome OS |
|
|
Working Temperature |
0℃-40℃ |
|
|
Accessories |
Styplus Pen*2, Power Cord( 3M)*1, USB A-B cable( 3M)*1, HDMI cable(3M)*1, Remoter*1, Mobile Stand*1 (separate packing) |
|
|
Product sizes(mm) |
1705*1030*97 |
|
|
Product N.W. /G.W (kg) |
43/57 (75”) | 17/19 (mobile stand) |
|
|
Carton Size (mm) |
1805x1130x165 (75”) | 1176*378*130 (mobile stand) |
|
Remark: For more details of the specification , please contact our sales team osd019@touch-easy.com to know more detials.
All features and specifications are subject to change without notice.
